Features
- Complete rate gyroscope on a single chip
- Z-axis (yaw rate) response
- High vibration rejection over wide frequency
- 2000 g powered shock survivability
- Ratiometric to referenced supply
- 5 V single-supply operation
- 105°C operation
- Self-test on digital command
- Ultrasmall and light (<0.15 cc, <0.5 gram)
- Temperature sensor output
- RoHS compliant
- Qualified for automotive applications
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADXRS624 is a complete angular rate sensor (gyroscope) that uses the Analog Devices, Inc., surface-micromachining process to create a functionally complete and low cost angular rate sensor integrated with all required electronics on one chip. The manufacturing technique for this device is the same high volume BiMOS process used for high reliability automotive airbag accelerometers.
The ADXRS624 is an automotive grade gyroscope. Automotive grade gyroscopes have more extensive guaranteed min/max specifications due to automotive testing.

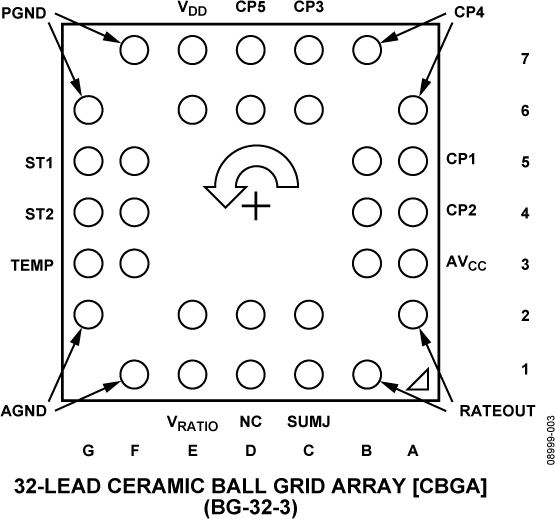

The output signal, RATEOUT (1B, 2A), is a voltage proportional to angular rate about the axis normal to the top surface of the package. The output is ratiometric with respect to a provided reference supply. A single external resistor between SUMJ and RATEOUT can be used to lower the scale factor. An external capacitor sets the bandwidth. Other external capacitors are required for operation.
A temperature output is provided for compensation techniques. Two digital self-test inputs electromechanically excite the sensor to test proper operation of both the sensor and the signal conditioning circuits. The ADXRS624 is available in a 7 mm × 7 mm × 3 mm BGA chip scale package.
APPLICATIONS
- Navigation systems
- Inertial measurement units
- Platform stabilization
- Robotics
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADXRS624
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
User Guide
-
All
-
English
-
Chinese
Data Sheet
1
User Guide
2
83 kB
Documentation
Data Sheet 1
User Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADXRS624BBGZ |
32-Ball Ceramic BGA (6.85mm x 6.85mm x 3.8mm)
|
|
|
| ADXRS624BBGZ-RL |
32-Ball Ceramic BGA (6.85mm x 6.85mm x 3.8mm)
|
|
- ADXRS624BBGZ
- Pin/Package Drawing
-
32-Ball Ceramic BGA (6.85mm x 6.85mm x 3.8mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADXRS624BBGZ-RL
- Pin/Package Drawing
-
32-Ball Ceramic BGA (6.85mm x 6.85mm x 3.8mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jul 16, 2018
- 17_0022
Assembly Transfer of Select MEMS in LCC, CBGA and LCC_V Packages to Cirtek Electronic Corporation
ADXRS624BBGZ
PRODUCTION
ADXRS624BBGZ-RL
PRODUCTION
Aug 22, 2013
- 13_0021
Qualification of Second Source Supplier for Seal Glass on Capped MEMS Devices
ADXRS624BBGZ
PRODUCTION
ADXRS624BBGZ-RL
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jul 16, 2018
- 17_0022
Assembly Transfer of Select MEMS in LCC, CBGA and LCC_V Packages to Cirtek Electronic Corporation
ADXRS624BBGZ
PRODUCTION
ADXRS624BBGZ-RL
PRODUCTION
Aug 22, 2013
- 13_0021
Qualification of Second Source Supplier for Seal Glass on Capped MEMS Devices
ADXRS624BBGZ
PRODUCTION
ADXRS624BBGZ-RL
PRODUCTION
Evaluation Kits 1
EVAL-ADXRS624
