ADXL372
Micropower, 3-Axis, ±200 g Digital Output, MEMS
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- ±200g measurement range
- 200 Hz to 3200 Hz user-selectable bandwidth with 4-pole anti-aliasing filter
- Selectable over-sampling ratio
- Adjustable high-pass filter
- Ultralow power
- Power can be derived from a coin cell battery
- 22 µA @ 3200 Hz ODR, 2.5 V supply
- Low power, wake-up mode for low g activity detection
- 1.4 μA instant on mode with adjustable threshold
- <0.1 μA standby mode
- Built-in features for system-level power savings
- Autonomous interrupt processing without processor intervention
- Deep embedded FIFO to minimize host processor load
- Ultralow power event monitoring detects impacts and wakes up fast enough to capture the transient events
- Ability to capture and store peak acceleration values of events
- Adjustable, low g threshold activity/inactivity detection
- Wide supply range: 1.6 V to 3.5 V
- Acceleration sample synchronization via external trigger
- SPI digital interface and limited I2C interface format support
- 12-bit output at 100 mg/LSB scale factor
- Wide temperature range: −40°C to 105°C
- Small, thin, 3 mm × 3.25 mm × 1.06 mm package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADXL372 is an ultralow power, 3-axis, ±200 g MEMS accelerometer that consumes 22 μA at a 3200 Hz output data rate (ODR). The ADXL372 does not power cycle its front end to achieve its low power operation and therefore does not run the risk of aliasing the output of the sensor.
In addition to its ultralow power consumption, the ADXL372 has many features to enable impact detection while providing system level power reduction. The device includes a deep multimode output first in, first out (FIFO), several activity detection modes, and a method for capturing only the peak acceleration of over threshold events.
Two additional lower power modes with interrupt driven, wake-up features are available for monitoring motion during periods of inactivity. In wake-up mode, acceleration data can be averaged to obtain a low enough output noise to trigger on low g thresholds. In instant on mode, the ADXL372 consumes 1.4 μA while continuously monitoring the environment for impacts. When an impact event that exceeds the internally set threshold is detected, the device switches to normal operating mode fast enough to record the event.
High g applications tend to experience acceleration content over a wide range of frequencies. The ADXL372 includes a 4-pole low-pass antialiasing filter to attenuate out of band signals that are common in high g applications. The ADXL372 also incorporates a high-pass filter to eliminate initial and slow changing errors, such as ambient temperature drift.
The ADXL372 provides 12-bit output data at 100 mg/LSB scale factor. The user can access configuration and data registers via the serial peripheral interface (SPI) or limited I2C protocol. The ADXL372 operates over a wide supply voltage range and is available in a 3 mm × 3.25 mm × 1.06 mm package.

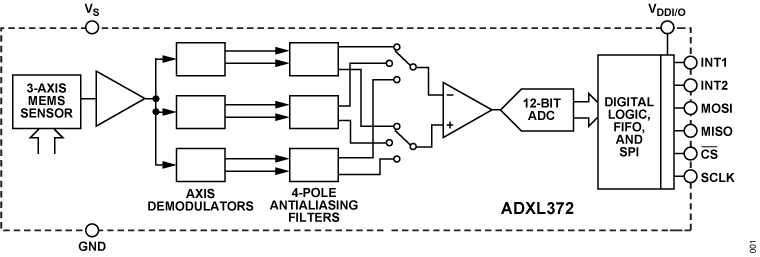

Multifunction pin names may be referenced by their relevant function only.
APPLICATIONS
- Impact and shock detection
- Asset health assessment
- Portable Internet of Things (IoT) edge nodes
- Concussion and head trauma detection
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADXL372
Documentation
Filters
1 Applied
-
All
-
Product Information
-
User Guide
-
Data Sheet
-
Technical Articles
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
2
Product Information
1
WIKI
User Guide
2
WIKI
Technical Articles
8
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Documentation
Data Sheet 1
User Guide 2
Technical Articles 3
Product Information 1
Solutions Bulletin & Brochure 1
Device Drivers 2
Analog Dialogue 1
Video
9
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

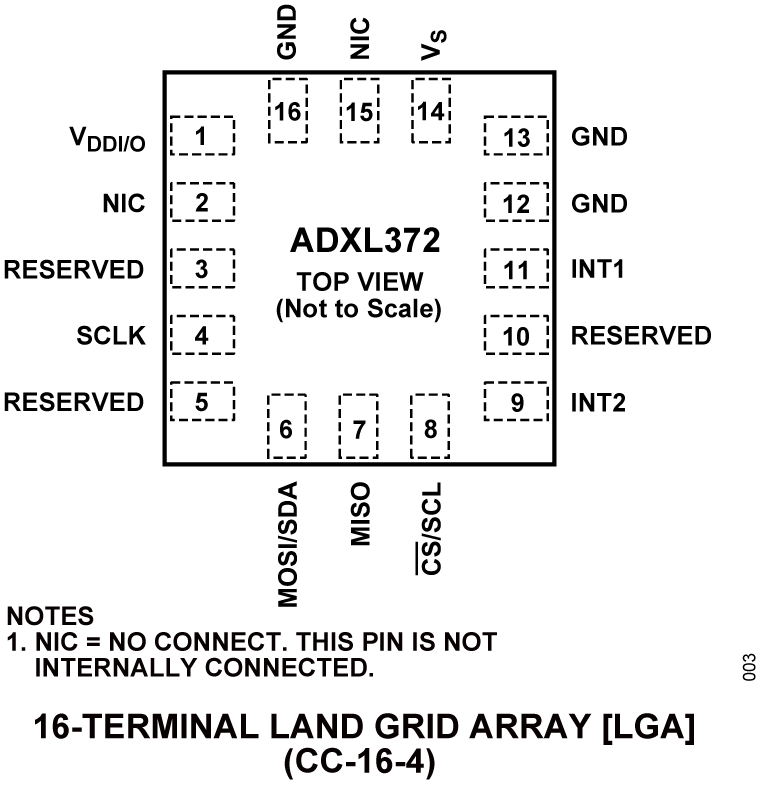

| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADXL372BCCZ-RL |
16-Lead LGA (3mm x 3.25mm)
|
|
|
| ADXL372BCCZ-RL7 |
16-Lead LGA (3mm x 3.25mm)
|
|
- ADXL372BCCZ-RL
- Pin/Package Drawing
-
16-Lead LGA (3mm x 3.25mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADXL372BCCZ-RL7
- Pin/Package Drawing
-
16-Lead LGA (3mm x 3.25mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jul 20, 2018
- 18_0051
ADXL372 ASIC Die and Data Sheet Revision
ADXL372BCCZ-RL
PRODUCTION
ADXL372BCCZ-RL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jul 20, 2018
- 18_0051
ADXL372 ASIC Die and Data Sheet Revision
ADXL372BCCZ-RL
PRODUCTION
ADXL372BCCZ-RL7
PRODUCTION
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 3
EVAL-ADXL372-ARDZ

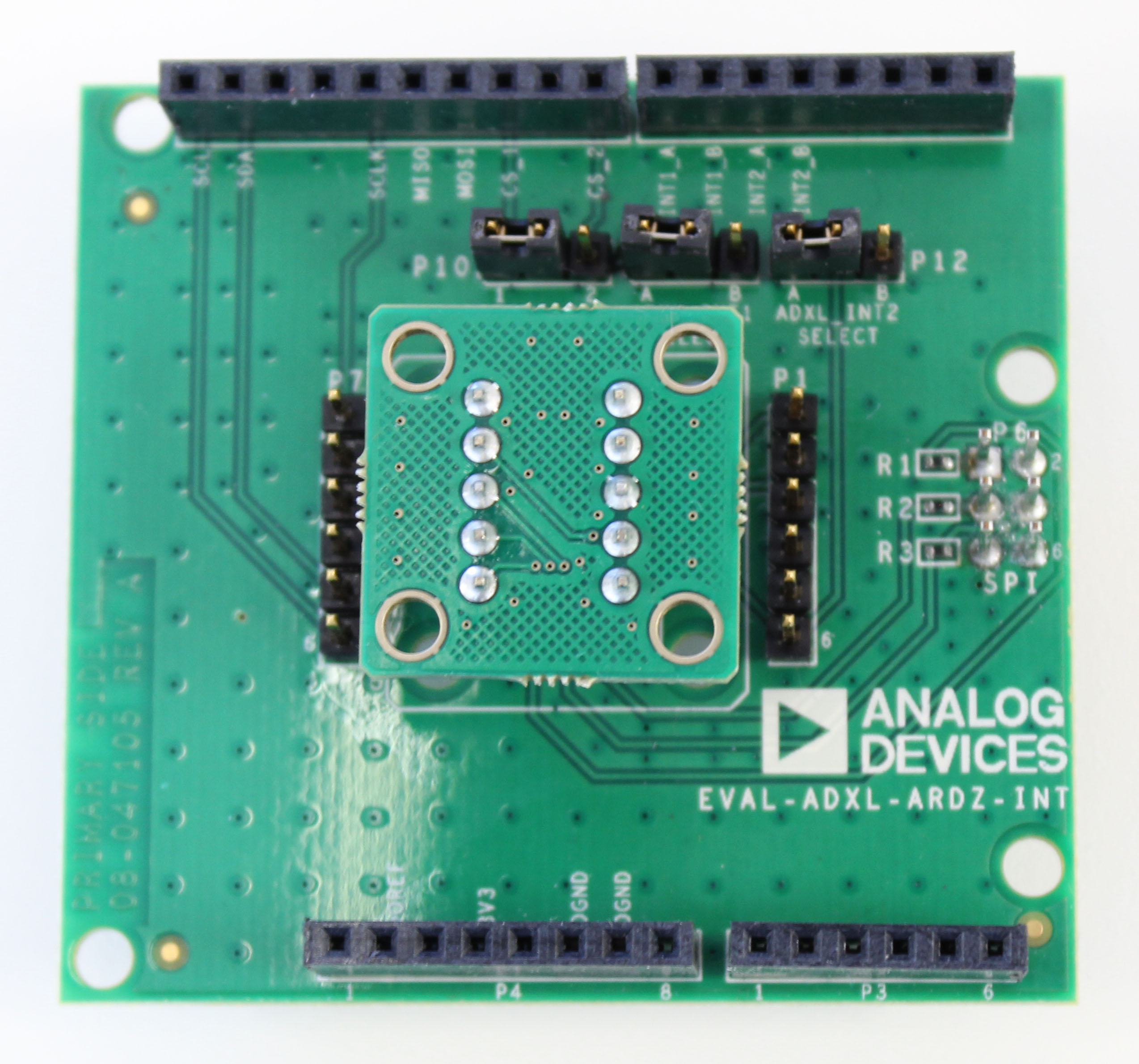

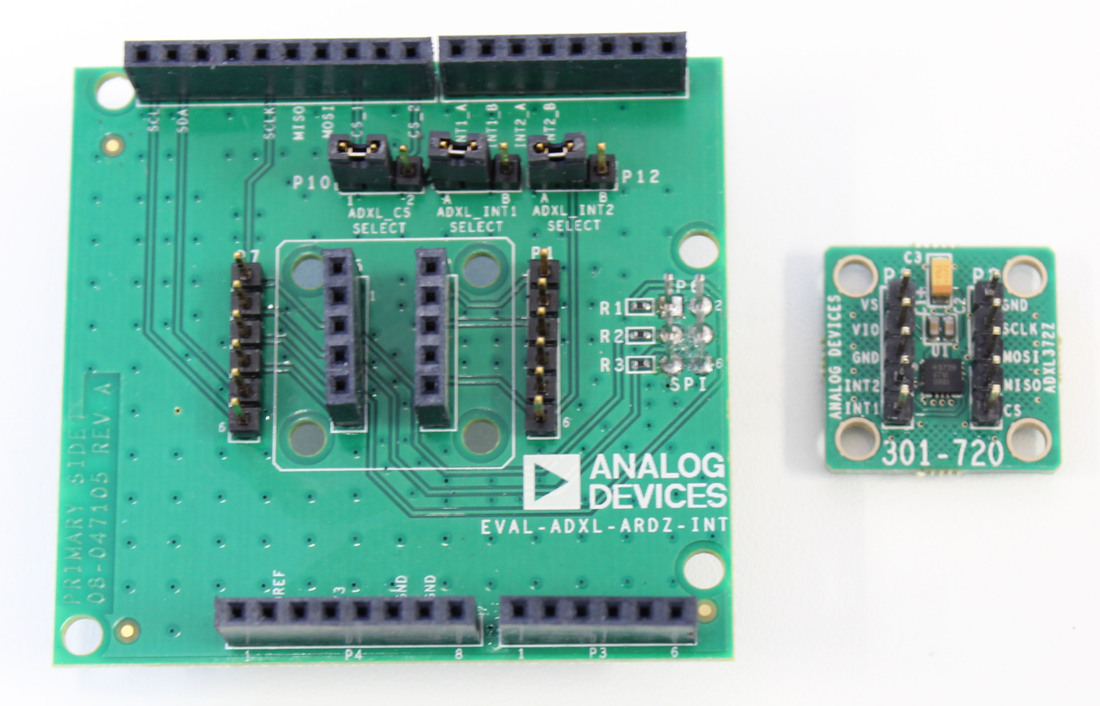

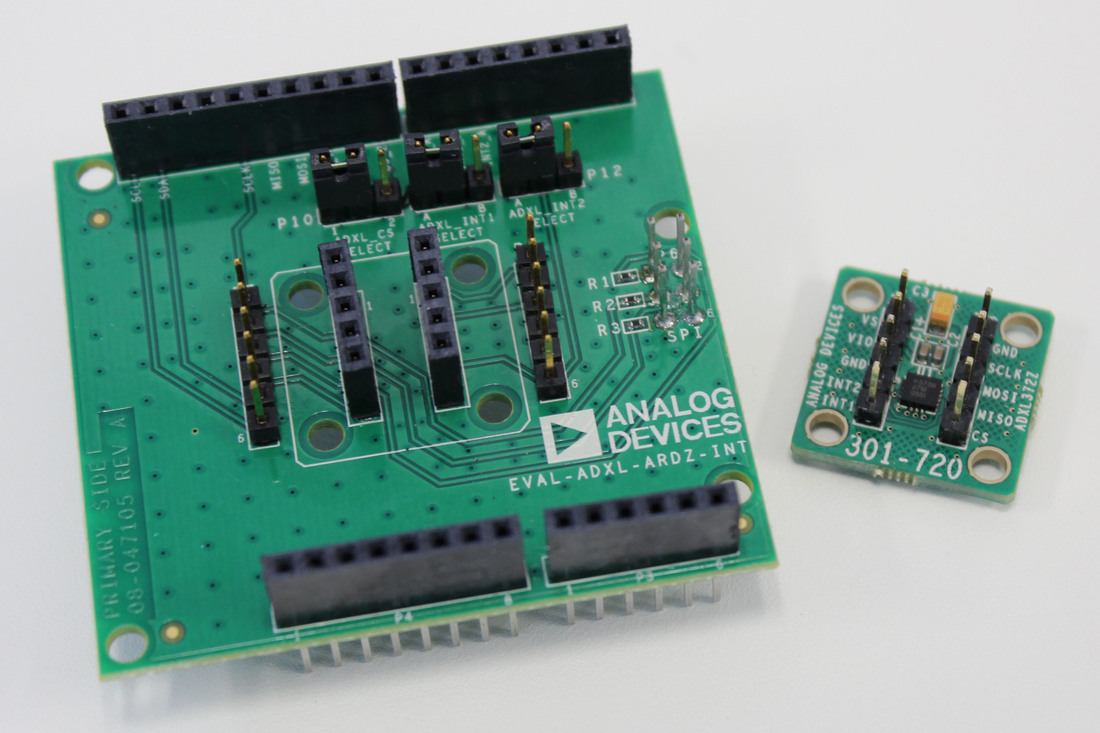

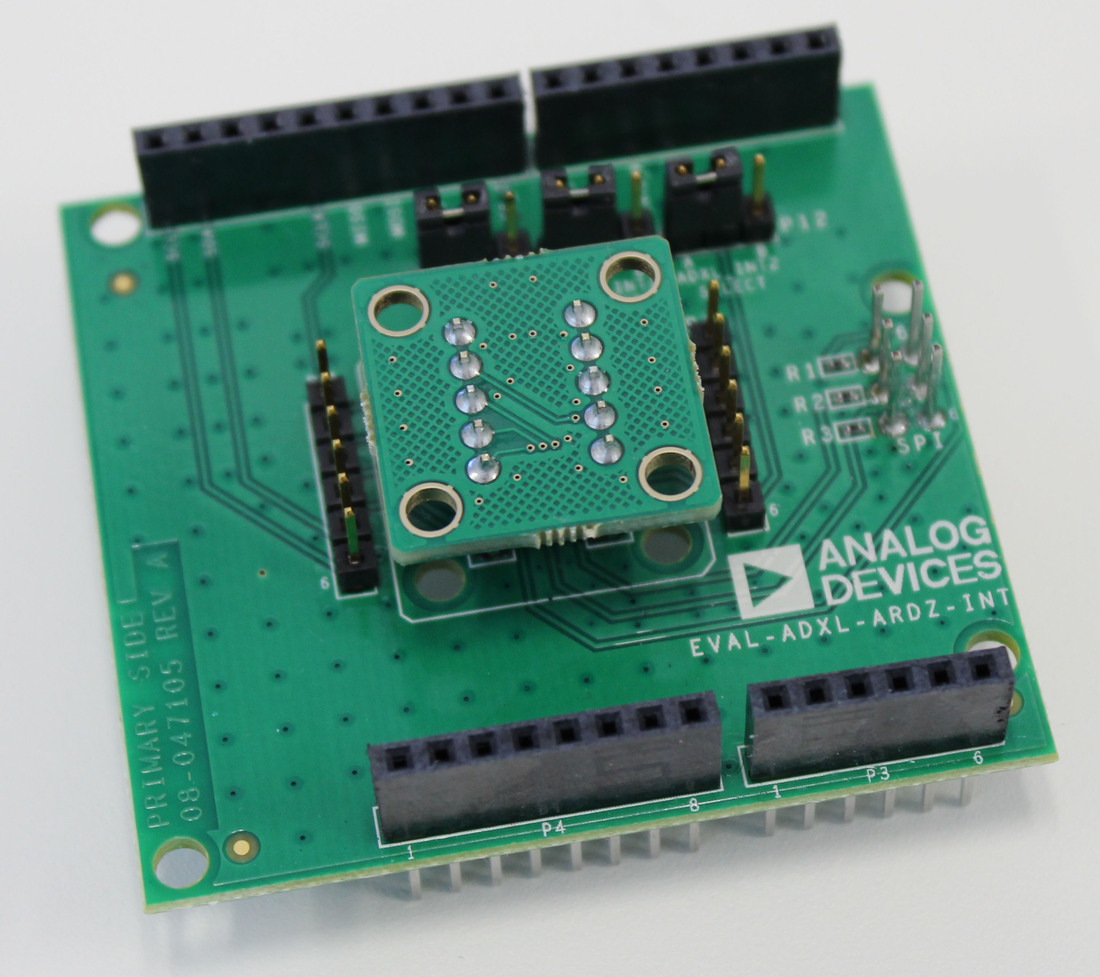

Micropower, 3-Axis +/-200g Digital Output MEMS Arduino Shield
Product Detail
In addition to its ultralow power consumption, the ADXL372 has many features to enable impact detection while providing system level power reduction. The device includes a deep multimode output first in, first out (FIFO), several activity detection modes, and a method for capturing only the peak acceleration of over threshold events.
Two additional lower power modes with interrupt driven, wake-up features are available for monitoring motion during periods of inactivity. In wake-up mode, acceleration data can be averaged to obtain a low enough output noise to trigger on low g thresholds. In instant on mode, the ADXL372 consumes 1.4 μA while continuously monitoring the environment for impacts. When an impact event that exceeds the internally set threshold is detected, the device switches to normal operating mode fast enough to record the event.
High g applications tend to experience acceleration content over a wide range of frequencies. The ADXL372 includes a 4-pole low-pass antialiasing filter to attenuate out of band signals that are common in high g applications. The ADXL372 also incorporates a high-pass filter to eliminate initial and slow changing errors, such as ambient temperature drift.
EVAL-ADXL372Z
Ultralow Power, ±200 g Digital Accelerometer Breakout Board
Product Detail

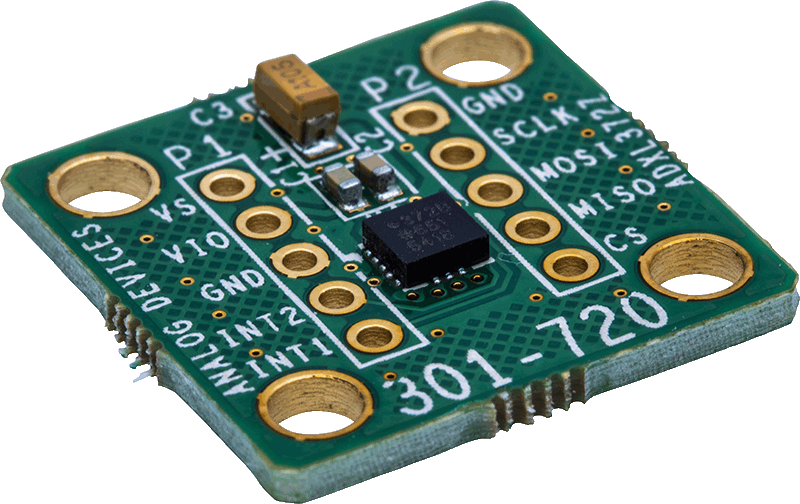

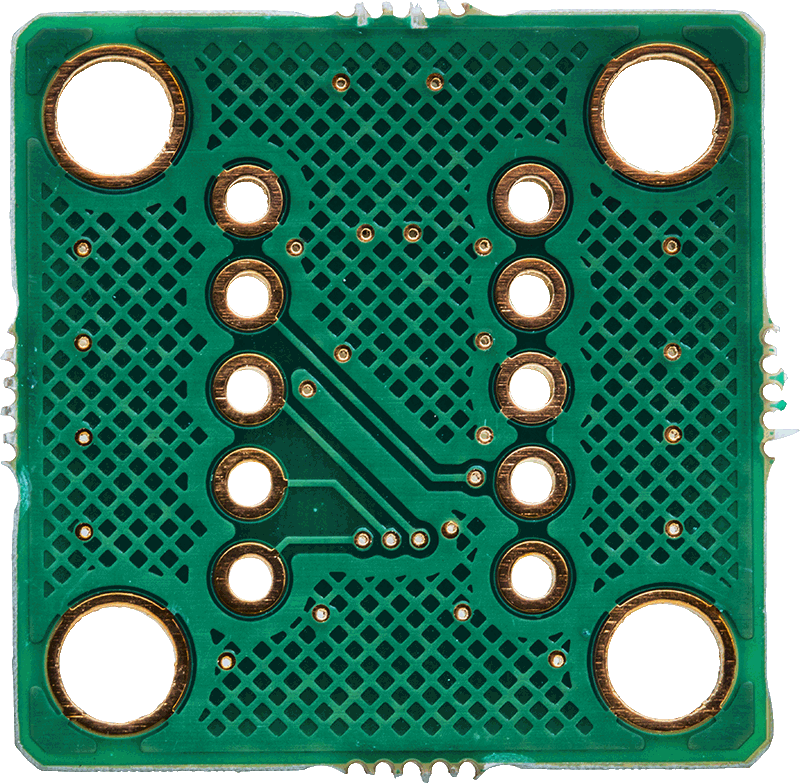

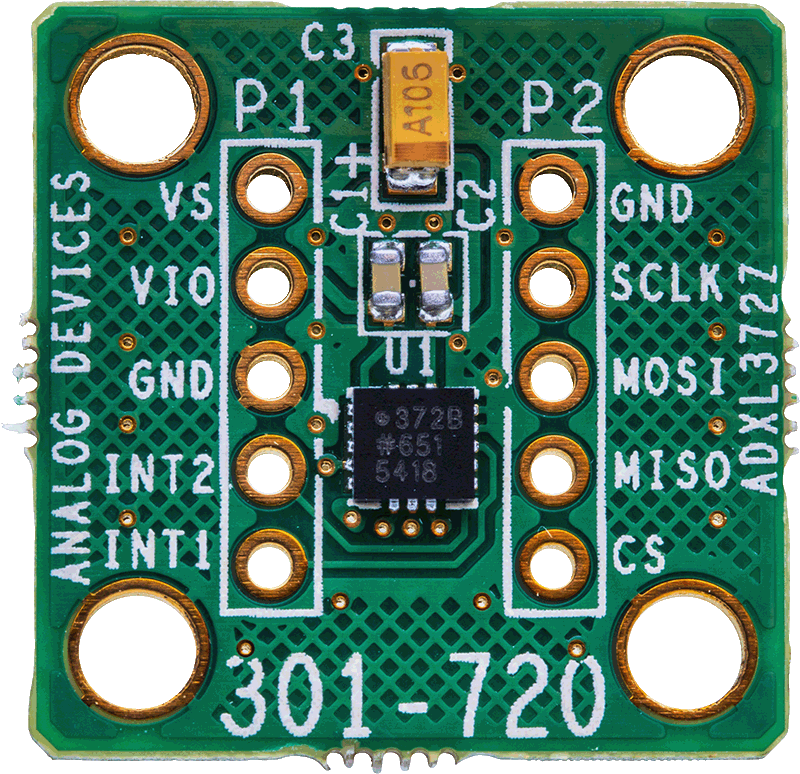

The EVAL-ADXL372Z is a simple evaluation board that allows quick evaluation of the performance of the ADXL372 ultralow power, 3-axis, digital output MEMS accelerometer. The EVAL-ADXL372Z is ideal for evaluation of the ADXL372 in an existing system because the stiffness and the small size of the evaluation board minimize the effect of the board on both the system and acceleration measurements.
Full specifications for the ADXL372 are available in the product data sheet; consult the data sheet in conjunction with user guide UG-1113 when working with the evaluation board.
Resources
EVAL-ADXL372Z-M
EVAL-ADXL372Z-M Evaluation Board
Features and Benefits
- Flexible inertial sensor evaluation platform
- Single main board operates with interchangeable satellite boards
- Separates DUT from controller for accurate environmental testing
- Continuous stream to file data recording
- Standard USB cable for power and communications
- PC-based graphical user interface (GUI)
- Fast, easy installation
Product Detail

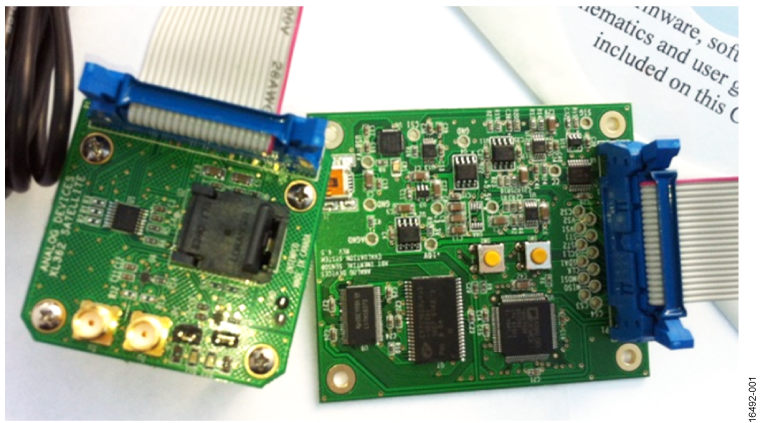

The iMEMS® ADXL372 inertial sensor evaluation system is an easy-to-use evaluation tool targeting bench or desktop characterization of Analog Devices, Inc., inertial sensor products. The system consists of the inertial sensor evaluation board (ISEB), or main board, and a satellite board for any Analog Devices inertial sensor product. The ISEB connects directly to a PC via an USB cable, with the USB connection providing both communications and power to the board. The ISEB is connected to the satellite board through a ribbon cable. This cable allows the satellite to be easily manipulated for testing or separately placed into an environmental chamber for temperature or humidity testing. Separating the boards mitigates corruption of data due to the temperature and humidity effects of other components.
