ADV7625
3GHz HDMI 5:2 cross point Transceiver with On-Screen Display
Top
Overview
Features and Benefits
- 5-input, 2-output cross-point HDMI® transceiver
- HDMI support
- 3GHz video support (e.g. 4k x 2k)
- Audio return channel (ARC)
- 3D TV support
- Content type bits
- CEC 1.4-compatible
- Extended colorimetry
- High-Bandwidth Digital Content Protection (HDCP 1.4)
- Character- and icon-based on-screen display (OSD)
- 3D OSD overlay on all mandatory 3D formats
- Support for OSD overlay on 3 GHz video formats
- HDCP repeater support
Up to 127 KSVs supported - 300 MHz maximum TMDS clock frequency (up to 4k x 2k)
- 48-, 36-, 30-bit deep colour input modes supported
- Ultralow jitter digital PLL (100% deskew)
- See data sheet for additional features
Product Details
The ADV7625 is a high performance, five-input, dual-output, High-Definition Multimedia Interface (HDMI®) transceiver with crosspoint and splitter capabilities. The ADV7625 supports 3 GHz video and features two independent HDMI receivers, two independent HDMI transmitters, two audio output ports, two audio input ports, and a pixel port input. The ADV7625 supports all HDCP repeater functions through fully tested Analog Devices, Inc., repeater software libraries and drivers.The HDMI receivers and transmitters in the ADV7625 support the reception and transmission of 3 GHz video formats up to 4k × 2k at 24 Hz/25 Hz/30 Hz, in addition to all mandatory HDMI 3D TV formats. The receivers and transmitters also provide support for THX® Media Director™.
Each HDMI receiver features an integrated equalizer that ensures robust operation of the interface with cable lengths up to 30 meters. The HDMI receivers share a 768-byte volatile extended display identification data (EDID) memory, which can facilitate one or two EDIDs, one for each receiver. Each HDMI port features dedicated 5 V detect and Hot Plug™ assert pins.
Each HDMI transmitter supports audio return channel (ARC) and features an integrated HDMI CEC controller that supports capability discovery and control (CDC).
The ADV7625 offers two audio output ports and two audio input ports. Each audio port supports the extraction and insertion of up to eight channels of audio data out of or into the HDMI streams. HDMI audio formats, including I2S, S/PDIF, direct stream digital (DSD), and high bit rate (HBR) audio are supported.

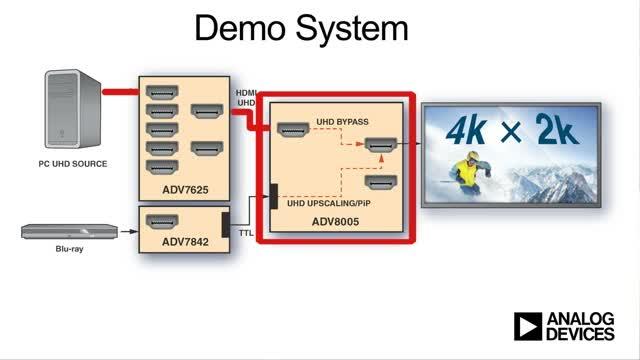

The ADV7625 features a TTL pixel port input that facilitates the reception of digital video data from an analog front-end decoder (for example, the ADV7180, ADV7181D, or ADV7842).
The ADV7625 has an integrated on-screen display (OSD) generator that enables the creation and control of high quality character- and icon-based system status and control displays. The OSD can be overlaid on 3 GHz video formats and 3D video. Customers who are interested in using OSD are provided with Blimp, the Analog Devices OSD development tool.

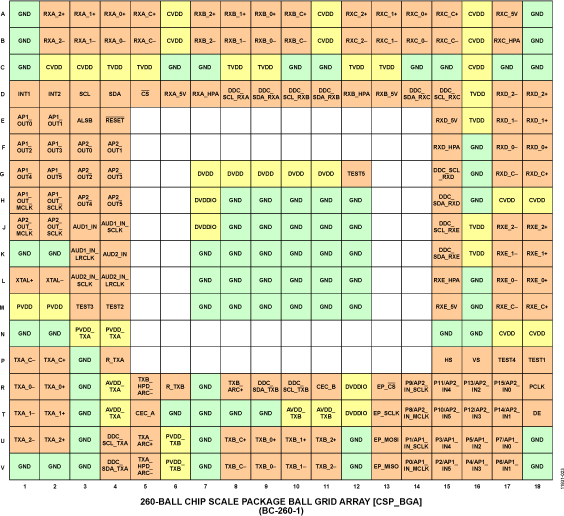

The ADV7625 is provided in a space-saving, 260-ball, 15 mm × 15 mm CSP_BGA surface-mount, RoHS-compliant package and is specified over the 0°C to 70°C temperature range.
APPLICATIONS
- AVRs
- Soundbar with HDMI repeater support
- Matrix switch
- Other repeater applications
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

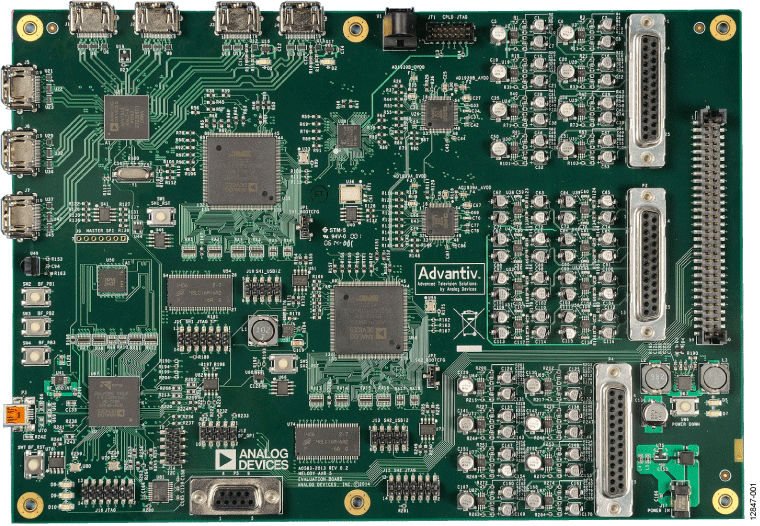

Evaluation Kits (2)
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADV7625KBCZ-8 | Material Declaration | Reliability Data | 260-Ball CSPBGA (15mm x 15mm x 1.5mm) | |
| ADV7625KBCZ-8-RL | Material Declaration | Reliability Data | 260-Ball CSPBGA (15mm x 15mm x 1.5mm) | |
| Wafer Fabrication Data |
