Features
- Excellent ac performance
- −3 dB bandwidth, 200 mV p-p:
- 200 mV p-p: 820 MHz (ADV3226), 750 MHz (ADV3227)
- 2 V p-p: 600 MHz (ADV3226), 750 MHz (ADV3227)
- Slew rate: 2150 V/μs (ADV3226), 2950 V/μs (ADV3227)
- −3 dB bandwidth, 200 mV p-p:
- Serial or parallel programming of switch array
- 100-lead LFCSP (12 mm × 12 mm)
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

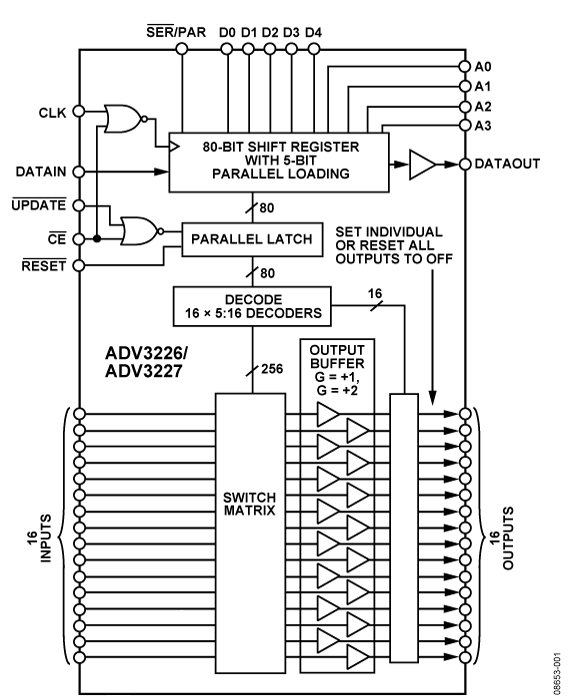

The ADV3226/ADV3227 are high speed 16 × 16 analog crosspoint switch matrices. They offer a −3 dB signal bandwidth greater than 750 MHz and channel switch times of less than 20 ns with 1% settling.
The ADV3226/ADV3227 include 16 independent output buffers that can be placed into a high impedance state for paralleling crosspoint outputs to prevent off channels from loading the output bus. The ADV3226 has a gain of +1 and the ADV3227 has a gain of +2. They both operate on voltage supplies of ±5 V while consuming only 118 mA (ADV3226) and 133 mA (ADV3227) of idle current. Channel switching is performed via a serial digital control that can accommodate daisy chaining of several devices or via a parallel control to allow updating of an individual output without reprogramming the entire array.- Routing of high speed signals including
Video (NTSC, PAL, S, SECAM, YUV, RGB)
Compressed video (MPEG, wavelet)
3-level digital video (HDB3) - Data communications
- Telecommunications
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADV3226
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
User Guide
-
All
-
English
Data Sheet
1
User Guide
1
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADV3226ACPZ |
100-Lead LFCSP (12mm x 12mm w/ EP)
|
|
- ADV3226ACPZ
- Pin/Package Drawing
-
100-Lead LFCSP (12mm x 12mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 26, 2023
- 23_0025
Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor
ADV3226ACPZ
PRODUCTION
Oct 13, 2016
- 15_0027
Assembly Transfer of Large Body Punched LFCSP Products to Amkor Philippines
ADV3226ACPZ
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 26, 2023
- 23_0025
Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor
ADV3226ACPZ
PRODUCTION
Oct 13, 2016
- 15_0027
Assembly Transfer of Large Body Punched LFCSP Products to Amkor Philippines
ADV3226ACPZ
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 1
EVAL-ADV3226
ADV3226 Evaluation Board
