ADuM6420A

Quad-Channel Isolators with Integrated DC-to-DC Converter (4:0 directionality)

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
IBIS Model ADuM6420A IBIS Model Download 827.13 KB
Part Models 4
1ku List Price Starting From $7.17
Features
  • isoPower integrated, isolated dc-to-dc converter
  • 100 mA output supply
  • AEC-Q100 qualified for automotive applications
    • ADuM6421AW
  • Meets CISPR 32/EN55032 Class B emission limits up to 5 Mbps at a full load on a 2-layer PCB
  • Quad dc to 100 Mbps signal isolation channels
  • 28-lead, fine pitch, SOIC with 8.3 mm minimum creepage
  • High temperature operation: 125°C maximum
  • High common-mode transient immunity: 100 kV/μs
  • Safety and regulatory approvals (pending)
    • UL recognition 5000 V rms for 1 minute per UL 1577
    • CSA certification per IEC 62368-1, IEC 61010-1, and IEC 60601-1
    • VDE V 0884-11 certificate of conformity (pending)
      • VIORM = 566 V peak
    • CQC certification per GB4943.1-2011 (pending)
Additional Details
show more Icon

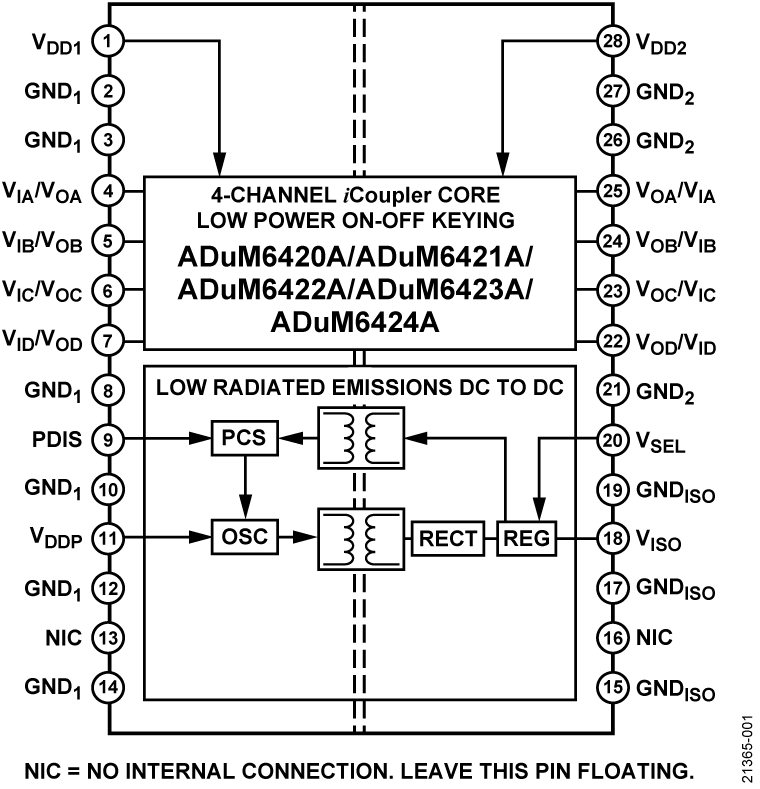

The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A1 are quad-channel digital isolators with an isoPower®, integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler® technology, the dc-to-dc converter provides regulated, isolated power that meets CISPR 32/EN 55032 Class B limits at a full load on a 2-layer printed circuit board (PCB) with ferrites. Popular voltage combinations and the associated output current levels are listed in Table 1 in the data sheet.

The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A eliminate the need for a separate, isolated dc-to-dc converter in 500 mW, isolated designs. The iCoupler chip scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.

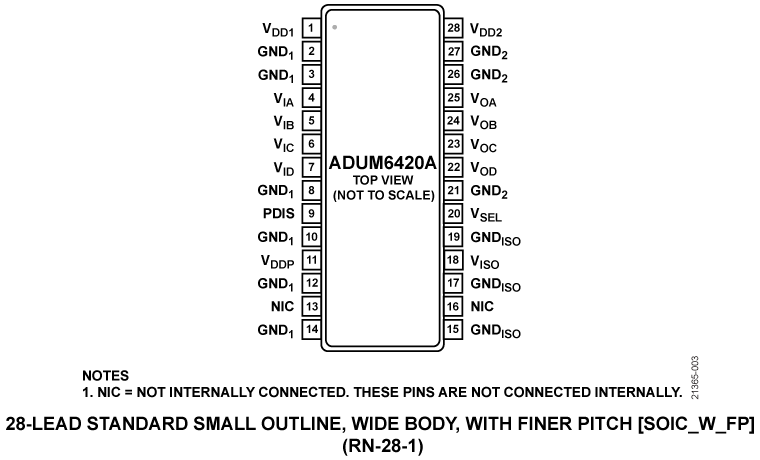

The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A isolators provide four independent isolation channels. See the Pin Configurations and Function Descriptions in the data sheet for additional information.

APPLICATIONS

  • RS-232 transceivers
  • Power supply start-up bias and gate drives
  • Isolated sensor interfaces
  • Automotive on-board charger (OBC) and dc to dc
  • Industrial programmable logic controllers (PLCs)
1 Protected by U.S. Patents 5,952,849; 6,873,065; 6,903,578; and 7,075,329. Other patents are pending.
Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
IBIS Model ADuM6420A IBIS Model Download 827.13 KB
Part Models 4
1ku List Price Starting From $7.17
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADuM6420A

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Safety and Regulatory Compliance
  • User Guide
  • Data Sheet
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 12/14/2023
English

ADuM6420A/ADuM6421A/ADuM6422A/ADuM64232A/ADuM6424A: Quad-Channel Isolators with Integrated DC-to-DC Converter Data Sheet (Rev.C)

Open PDF File

redirect
1.1 M
download

Download PDF

PDF Vector

PDF

UPDATED 12/14/2023
Japanese

ADuM6420A/ADuM6421A/ADuM6422A: DC/DCコンバータ内蔵クワッド・チャンネル・アイソレータ データシート

Open PDF File

redirect
645.52 K
download

Download PDF

Safety and Regulatory Compliance

2

PDF Vector

HTML

UPDATED 01/28/2016
English
Safety and Regulatory Compliance Information redirect icon

PDF Vector

HTML

UPDATED 01/28/2016
Japanese
安全規格認証や適合の取得状況 redirect icon

User Guide

1

PDF Vector

PDF

UPDATED 01/06/2020
English
UG-1708: Evaluating the ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A Quad-Channel Isolators with Integrated DC-to-DC Converter (Rev.B) redirect icon

4.84 M

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Solutions Bulletin & Brochure 1

Enhanced Protection with the Latest iCoupler® Digital Isolation

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Product Selection Guide 1

Digital Isolation and Interface Technology Selection Guide

Video

2

Thumbnail Image

Video

2020-10-28

01:00

Protect your Innovations: from High Precision to High Power

Learn More
Thumbnail Image

Video

2020-12-01

03:56

Compact and Quiet: A Tiny Electrification Solution

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADUM6420ABRNZ3 28-Lead SOIC (Wide, Finer Pitch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM6420ABRNZ3-RL 28-Lead SOIC (Wide, Finer Pitch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM6420ABRNZ5 28-Lead SOIC (Wide, Finer Pitch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM6420ABRNZ5-RL 28-Lead SOIC (Wide, Finer Pitch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 19, 2023

- 23_0285

ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A Data Sheet Revision

ADUM6420ABRNZ3

PRODUCTION

ADUM6420ABRNZ3-RL

PRODUCTION

ADUM6420ABRNZ5

PRODUCTION

ADUM6420ABRNZ5-RL

PRODUCTION

pdf

PCN23_0285_Form

external-icon

xls

Material_Report

Download

pdf

Package Outline Drawing

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 19, 2023

- 23_0285

arrow down

ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A Data Sheet Revision

ADUM6420ABRNZ3

PRODUCTION

ADUM6420ABRNZ3-RL

PRODUCTION

ADUM6420ABRNZ5

PRODUCTION

ADUM6420ABRNZ5-RL

PRODUCTION

pdf

PCN23_0285_Form

external-icon

xls

Material_Report

Download

pdf

Package Outline Drawing

external-icon

Software & Part Ecosystem

Evaluation Kits 1

reference details image

EVAL-ADUM6421A

ADuM6421A Evaluation Board

zoom

EVAL-ADUM6421A

ADuM6421A Evaluation Board

download icon

Download

 print icon

Print
EVAL-ADUM6421A
ADuM6421A Evaluation Board

Features and Benefits

  • isoPower integrated, isolated dc-to-dc converter
  • Meets CISPR 32/EN 55032, Class B emission limits
  • On-board 6 V to 9 V LDO power supply that provides 5 V to the VDDP pin
  • 5 V input operation and selectable 3.3 V or 5 V isolated dc-to-dc converter output
  • Screw terminal connectors for the following
    • LDO power supply
    • 5 V direct power supply
    • Off board PDIS control
    • Isolated output supply
Buy Now View Details

Product Detail

The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A devices integrate four iCoupler® on-off keying (OOK) digital isolation channels and iCoupler chip scale isoPower® transformer technology.

This iCoupler transformer technology enables a small form factor integrated, reinforced isolated signal and power solution, in applications requiring up to 500 mW of isolated power.

Available dc-to-dc converter supply configurations and maximum available power at the elevated ambient temperatures are specified in the ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A data sheet, respectively.

The ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A devices provide regulated, isolated power that meets CISPR 32/EN 55032, Class B limits at full load on a 2-layer printed circuit board (PCB) with ferrite beads. Radiated emissions test plots of the EVAL-ADUM6421ARNZ/EVAL-ADUM6421AURNZ are provided in Figure 4 and Figure 5 in the data sheet. All devices in the family include the same isolated dc-to-dc converter and are differentiated by directional digital channel configurations.

The EVAL-ADUM6421ARNZ includes the ADuM6421ABRNZ5 quad-channel digital isolator with integrated, isolated dc-to-dc converter. Alternatively, the EVAL-ADUM6421AURNZ leaves the isolator position unpopulated to support evaluation of the ADuM6420A, ADuM6421A, ADuM6422A, ADuM6423A, or ADuM6424A.

Full specifications for the ADuM6420A/ADuM6421A/ ADuM6422A/ADuM6423A/ADuM6424A are available in the ADuM6420A/ADuM6421A/ADuM6422A/ADuM6423A/ADuM6424A data sheet, which must be consulted in conjunction with the user guide when using the evaluation boards.
