ADUM3200

Dual-Channel, Digital Isolator, Enhanced System-Level ESD Reliability

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 14
1ku List Price Starting From $1.48
Features
  • Enhanced system-level ESD performance per
    IEC 61000-4-x
  • High temperature operation: 125°C

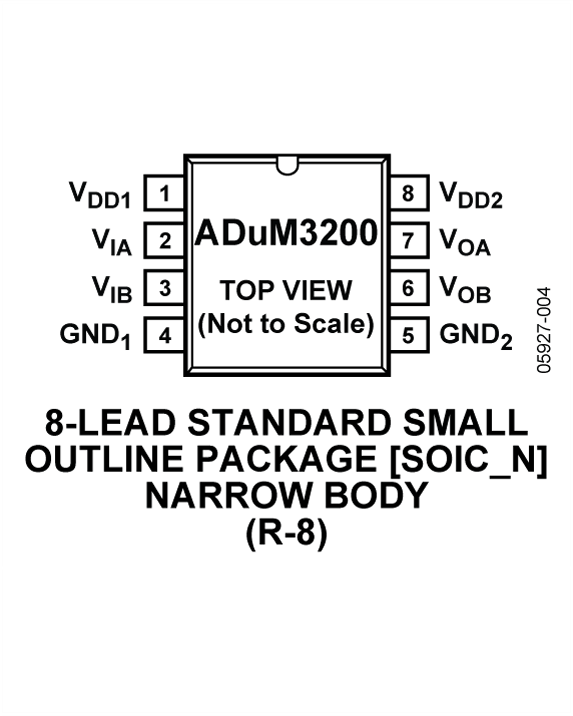

  • Narrow body, RoHS-compliant, 8-lead SOIC
  • Low power operation
    • 5 V operation (refer to data sheet)
    • 3.3 V operation (refer to data sheet)
  • Bidirectional communication
  • 3.3 V/5 V level translation
  • See data sheet for additional features
ADuM3200-EP supports defense and aerospace applications (AQEC standard)
  • Download ADuM3200-EP Data Sheet (pdf)
  • Military temperature range (−55°C to +125°C)
  • Controlled manufacturing baseline
  • Enhanced product change notification
  • Qualification data available on request
  • Qualified for automotive applications
  • Automotive versions qualified per AEC-Q100
  • V62/14627 DSCC Drawing Number
Additional Details
show more Icon

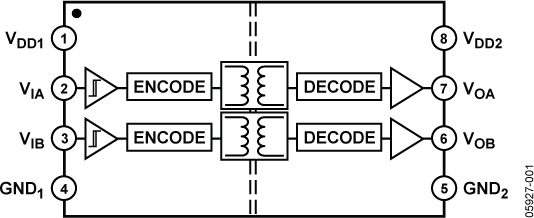

The ADuM3200 / ADuM3201 are dual-channel, digital isolators based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices.

By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with these iCoupler products. Furthermore, iCoupler devices consume one-tenth to one-sixth the power of optocouplers at comparable signal data rates.

The ADuM3200 / ADuM3201 isolators provide two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). They operate with 3.3 V or 5 V supply voltages on either side, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier. The ADuM3200W and ADuM3201W are automotive grade versions qualified for 125°C operation.

In comparison to the ADuM1200 / ADuM1201 isolators, the ADuM3200 / ADuM3201 isolators contain various circuit and layout changes to provide increased capability relative to system-level IEC 61000-4-x testing (ESD, burst, and surge). The precise capability in these tests for either the ADuM1200 / ADuM1201 or ADuM3200 / ADuM3201 products is strongly determined by the design and layout of the user’s board or module. For more information, see the AN-793 Application Note, ESD/Latch-Up Considerations with iCoupler Isolation Products.

APPLICATIONS

  • Size-critical multichannel isolation
  • SPI interface/data converter isolation
  • RS-232/RS-422/RS-485 transceiver isolation
  • Digital field bus isolation
  • Hybrid electric vehicles, battery monitor
Part Models 14
1ku List Price Starting From $1.48

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADUM3200ARZ
  • HTML
  • HTML
ADUM3200ARZ-RL7
  • HTML
  • HTML
ADUM3200BRZ
  • HTML
  • HTML
ADUM3200BRZ-RL7
  • HTML
  • HTML
ADUM3200CRZ
  • HTML
  • HTML
ADUM3200CRZ-RL7
  • HTML
  • HTML
ADUM3200TRZ-EP
  • HTML
  • HTML
ADUM3200TRZ-EP-RL7
  • HTML
  • HTML
ADUM3200WARZ
  • HTML
  • HTML
ADUM3200WARZ-RL7
  • HTML
  • HTML
ADUM3200WBRZ
  • HTML
  • HTML
ADUM3200WBRZ-RL7
  • HTML
  • HTML
ADUM3200WCRZ
  • HTML
  • HTML
ADUM3200WCRZ-RL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 13, 2024

- 23_0069

Qualification Notification of Alternate Wafer Fab Site at ADI Limerick for Select Isolator Products

ADUM3200ARZ

PRODUCTION

ADUM3200ARZ-RL7

PRODUCTION

ADUM3200BRZ

PRODUCTION

ADUM3200BRZ-RL7

PRODUCTION

ADUM3200CRZ

PRODUCTION

ADUM3200CRZ-RL7

PRODUCTION

ADUM3200TRZ-EP

PRODUCTION

ADUM3200TRZ-EP-RL7

PRODUCTION

ADUM3200WARZ

PRODUCTION

ADUM3200WARZ-RL7

PRODUCTION

ADUM3200WBRZ

PRODUCTION

ADUM3200WBRZ-RL7

PRODUCTION

ADUM3200WCRZ

PRODUCTION

ADUM3200WCRZ-RL7

PRODUCTION

Sep 21, 2018

- 18_0146

ADuM3200 & ADuM3201 Die Revision

ADUM3200ARZ

PRODUCTION

ADUM3200ARZ-RL7

PRODUCTION

ADUM3200BRZ

PRODUCTION

ADUM3200BRZ-RL7

PRODUCTION

ADUM3200CRZ

PRODUCTION

ADUM3200CRZ-RL7

PRODUCTION

Jun 15, 2016

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM3200ARZ

PRODUCTION

ADUM3200ARZ-RL7

PRODUCTION

ADUM3200BRZ

PRODUCTION

ADUM3200BRZ-RL7

PRODUCTION

ADUM3200CRZ

PRODUCTION

ADUM3200CRZ-RL7

PRODUCTION

Oct 6, 2014

- 14_0193

ADUM3200 Die Revision and Data Sheet Changes

ADUM3200ARZ

PRODUCTION

ADUM3200ARZ-RL7

PRODUCTION

ADUM3200BRZ

PRODUCTION

ADUM3200BRZ-RL7

PRODUCTION

ADUM3200CRZ

PRODUCTION

ADUM3200CRZ-RL7

PRODUCTION

Feb 27, 2012

- 11_0066

Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

ADUM3200ARZ

PRODUCTION

ADUM3200ARZ-RL7

PRODUCTION

ADUM3200BRZ

PRODUCTION

ADUM3200BRZ-RL7

PRODUCTION

ADUM3200CRZ

PRODUCTION

ADUM3200CRZ-RL7

PRODUCTION

ADUM3200WARZ

PRODUCTION

ADUM3200WARZ-RL7

PRODUCTION

ADUM3200WBRZ

PRODUCTION

ADUM3200WBRZ-RL7

PRODUCTION

ADUM3200WCRZ

PRODUCTION

ADUM3200WCRZ-RL7

PRODUCTION

Sep 18, 2018

- 18_0145

ADuM3200-EP/ADuM3201-EP Die Revision

Nov 6, 2013

- 13_0284

Change of Moisture Sensitivity Level Rating for Select iCoupler Products from MSL 1 to MSL 3

ADUM3200WARZ

PRODUCTION

ADUM3200WARZ-RL7

PRODUCTION

ADUM3200WBRZ

PRODUCTION

ADUM3200WBRZ-RL7

PRODUCTION

ADUM3200WCRZ

PRODUCTION

ADUM3200WCRZ-RL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 13, 2024

- 23_0069

arrow down

Qualification Notification of Alternate Wafer Fab Site at ADI Limerick for Select Isolator Products

ADUM3200ARZ

PRODUCTION

ADUM3200ARZ-RL7

PRODUCTION

ADUM3200BRZ

PRODUCTION

ADUM3200BRZ-RL7

PRODUCTION

ADUM3200CRZ

PRODUCTION

ADUM3200CRZ-RL7

PRODUCTION

ADUM3200TRZ-EP

PRODUCTION

ADUM3200TRZ-EP-RL7

PRODUCTION

ADUM3200WARZ

PRODUCTION

ADUM3200WARZ-RL7

PRODUCTION

ADUM3200WBRZ

PRODUCTION

ADUM3200WBRZ-RL7

PRODUCTION

ADUM3200WCRZ

PRODUCTION

ADUM3200WCRZ-RL7

PRODUCTION

Sep 21, 2018

- 18_0146

arrow down

ADuM3200 & ADuM3201 Die Revision

ADUM3200ARZ

PRODUCTION

ADUM3200ARZ-RL7

PRODUCTION

ADUM3200BRZ

PRODUCTION

ADUM3200BRZ-RL7

PRODUCTION

ADUM3200CRZ

PRODUCTION

ADUM3200CRZ-RL7

PRODUCTION

Jun 15, 2016

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM3200ARZ

PRODUCTION

ADUM3200ARZ-RL7

PRODUCTION

ADUM3200BRZ

PRODUCTION

ADUM3200BRZ-RL7

PRODUCTION

ADUM3200CRZ

PRODUCTION

ADUM3200CRZ-RL7

PRODUCTION

Oct 6, 2014

- 14_0193

arrow down

ADUM3200 Die Revision and Data Sheet Changes

ADUM3200ARZ

PRODUCTION

ADUM3200ARZ-RL7

PRODUCTION

ADUM3200BRZ

PRODUCTION

ADUM3200BRZ-RL7

PRODUCTION

ADUM3200CRZ

PRODUCTION

ADUM3200CRZ-RL7

PRODUCTION

Feb 27, 2012

- 11_0066

arrow down

Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

ADUM3200ARZ

PRODUCTION

ADUM3200ARZ-RL7

PRODUCTION

ADUM3200BRZ

PRODUCTION

ADUM3200BRZ-RL7

PRODUCTION

ADUM3200CRZ

PRODUCTION

ADUM3200CRZ-RL7

PRODUCTION

ADUM3200WARZ

PRODUCTION

ADUM3200WARZ-RL7

PRODUCTION

ADUM3200WBRZ

PRODUCTION

ADUM3200WBRZ-RL7

PRODUCTION

ADUM3200WCRZ

PRODUCTION

ADUM3200WCRZ-RL7

PRODUCTION

Sep 18, 2018

- 18_0145

arrow down

ADuM3200-EP/ADuM3201-EP Die Revision

Nov 6, 2013

- 13_0284

arrow down

Change of Moisture Sensitivity Level Rating for Select iCoupler Products from MSL 1 to MSL 3

ADUM3200WARZ

PRODUCTION

ADUM3200WARZ-RL7

PRODUCTION

ADUM3200WBRZ

PRODUCTION

ADUM3200WBRZ-RL7

PRODUCTION

ADUM3200WCRZ

PRODUCTION

ADUM3200WCRZ-RL7

PRODUCTION

Software and Part Ecosystem

Software and Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-1CH2CHEBZ

Evaluation Board for Single and Dual Channel Standard Data Isolators in 8 lead SOIC Package

zoom

EVAL-1CH2CHEBZ

Evaluation Board for Single and Dual Channel Standard Data Isolators in 8 lead SOIC Package

Evaluation Board for Single and Dual Channel Standard Data Isolators in 8 lead SOIC Package

Features and Benefits

  • Access to all 2 data channels
  • Multiple connection options
  • Support for Tektronix active probes
  • Provision for cable terminations
  • Support for PCB edge-mounted coaxial connectors
  • Easy configuration
  • Sample iCoupler digital isolator must be ordered separately:

Supported iCoupler Models
ADuM110N0BRZ / ADuM110N1BRZ
ADuM120N0BRZ / ADuM120N1BRZ
ADuM121N0BRZ / ADuM121N1BRZ
ADuM210N0BRIZ / ADuM210N1BRIZ
ADuM225N0BRIZ / ADuM225N1BRIZ
ADuM226N0BRIZ / ADuM226N1BRIZ
ADuM7240ARZ / ADuM7240CRZ
ADuM7241ARZ / ADuM7241CRZ
ADuM1200AR / ADuM1200ARZ
ADuM1200BR / ADuM1200BRZ
ADuM1200CR / ADuM1200CRZ
ADuM1200WSRZ / ADuM1200WTRZ
ADuM1200WURZ
ADuM1201AR / ADuM1201ARZ
ADuM1201BR / ADuM1201BRZ
ADuM1201CR / ADuM1201CRZ
ADuM1210BRZ
ADuM3200ARZ / ADuM3200BRZ
ADuM3200CRZ / ADuM3200WARZ
ADuM3200WBRZ / ADuM3200WCRZ
ADuM3201ARZ / ADuM3201BRZ
ADuM3201CRZ / ADuM3201WARZ
ADuM3201WBRZ / ADuM3201WCRZ
ADuM3210ARZ / ADuM3210BRZ
ADuM3210TRZ / ADuM3210WARZ
ADuM3210WBRZ / ADuM3210WCRZ
ADuM3211ARZ / ADuM3211BRZ
ADuM3211TRZ /ADuM3211WARZ
ADuM3211WBRZ / ADuM3211WCRZ
ADuM1280ARZ / ADuM1280BRZ
ADuM1280CRZ / ADuM1280WARZ
ADuM1280WBRZ / ADuM1280WCRZ
ADuM1281ARZ / ADuM1281BRZ
ADuM1281CRZ / ADuM1281WARZ
ADuM1281WBRZ / ADuM1281WCRZ

Product Detail

The EVAL-1CH2CHSOICEBZ supports single and dual channel standard data isolators in 8 lead SOIC packages. The evaluation board provides a JEDEC standard 8-lead SOIC_N and SOIC_W pad layout. This supports signal distribution, loopback, and loads referenced to VDDx or GNDx, as well as optimal bypass capacitance. Signal sources can conducted to the board through header pins or through edge-mounted SMA connectors (not supplied with board). Terminal blocks provide for power connections. The board includes 200 mil header positions for compatibility with Tektronix active probes (not supplied with board).

The board follows best printed circuit board (PCB) design practices for 4-layer boards, including a full power and ground plane on each side of the isolation barrier. No other EMI or noise mitigation design features are included on this board. In cases of very high speed operation or when ultralow emissions are required, refer to the AN-1109 application note for additional board layout techniques.
