ADUCM342
Integrated, Precision Battery Sensor for Automotive Systems
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- High precision ADCs
- Dual-channel, simultaneous sampling
- IADC 20-bit Σ-Δ (minimizes range switching)
- VADC/TADC 20-bit Σ-Δ
- Programmable ADC conversion rate from 4 Hz to 8 kHz
- On-chip ±5 ppm/°C voltage reference
- Current channel
- Fully differential, buffered input
- Programmable-gain (from 4 to 512)
- ADC absolute input range: −200 mV to +300 mV
- Digital comparator with current accumulator feature
- Voltage channel
- Buffered, on-chip attenuator for 12 V battery input
- Temperature channel
- External and on-chip temperature sensor options
- Microcontroller
- ARM Cortex-M3 32-bit processor
- 16.384 MHz precision oscillator with 1% accuracy (high precision)
- Serial wire debug (SWD) port supporting code download and debug
- Automotive qualified integrated LIN transceiver
- LIN 2.2A-compatible target, 100 kbaud fast download option
- SAE J2602-compatible target
- Low electromagnetic emissions
- High electromagnetic immunity
- Memory
- 128 kB programmable Flash/EE memory, ECC
- 10 kB SRAM, ECC
- 4 kB data Flash/EE memory, ECC
- 10,000 cycle Flash/EE endurance
- 20 year Flash/EE retention
- In circuit download via SWD and LIN
- On-chip peripherals
- SPI
- GPIO port
- General-purpose timer
- Wake-up timer
- Watchdog timer
- On-chip, power-on reset
- Power
- Operates directly from 12 V battery supply
- Power consumption, 8 mA typical (16 MHz) at TA = −40°C to +115°C
- Low power monitor mode
- Package and temperature range
- 32-lead, LFCSP, 6 mm x 6 mm package
- Fully specified for −40°C to +115°C operation, additional specifications for 115°C to 125°C
- AEC-Q100 qualified for automotive applications
- The ADuCM342WFS is developed for use in ISO 26262 applications for automotive safety integrity level capability C (ASIL C) supporting single-point fault metric (SPFM) 90% and latent fault metric (LFM) 60% at the IC component level.
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADuCM342 is a fully integrated, 8 kHz data acquisition system that incorporates dual, high performance, multichannel, Σ-Δ analogto-digital converters (ADCs), a 32-bit ARM® Cortex™-M3 processor, and flash. The ADuCM342 has 128 kB Flash/EE memory and a 4 kB data flash. Error correction code (ECC) is available on all flash and SRAM memories.
The ADuCM342 is a complete system solution for battery monitoring in 12 V automotive applications.
The ADuCM342 integrates all features required to precisely and intelligently monitor, process, and diagnose 12 V battery parameters including battery current, voltage, and temperature over a wide range of operating conditions.
Minimizing external system components, the device is powered directly from a 12 V battery. On-chip, low dropout (LDO) regulators generate the supply voltage for two integrated Σ-Δ ADCs. The ADCs precisely measure the battery current, voltage, and temperature to characterize the state of the health and the charge of the car battery.
The device operates from an on-chip, 16.384 MHz high frequency oscillator that supplies the system clock that is routed through a programmable clock divider, from which the core clock operating frequency is generated. The device also contains a 32.768 kHz oscillator for low power operation.
The analog subsystem consists of an ADC with a programmable-gain amplifier (PGA) that allows the monitoring of various current and voltage ranges. The analog subsystem also includes an on-chip precision reference.
The ADuCM342 integrates a range of on‑chip peripherals that can be configured under core software control as required in the application. These peripherals include a serial port interface (SPI) serial input/output communication controller, six general-purpose input/output (GPIO) pins, one general-purpose timer, a wake-up timer, and a watchdog timer. For more information, refer to the ADuCM342 hardware reference manual.
The ADuCM342 is designed to operate in battery-powered applications where low power operation is critical. The microcontroller core can be configured in normal operating mode, which results in an overall system current consumption of 18.5 mA when all peripherals are active. The device can also be configured in a number of low power operating modes under direct program control, consuming <100 μA.
The ADuCM342 includes a local interconnect network (LIN) physical interface for single-wire, high voltage communications in automotive environments. The LIN transceiver is compliant to LIN 2.2A and society of automotive engineers (SAE) J2602-2.
The device operates from an external 3.6 V to 19 V (on VDD, Pin 26) voltage supply and is specified over the −40°C to +115°C temperature range, with additional typical specifications at +115°C to +125°C.
The information in this data sheet is relevant for silicon revision A60.
The ADuCM342 is developed for use in ISO 26262 applications for automotive safety integrity level capability C (ASIL C) supporting single-point fault metric (SPFM) 90% and latent fault metric (LFM) 60% at the IC component level.
The ADuCM342 is a low electromagnetic emissions and high electromagnetic immunity device.
APPLICATIONS
- Battery sensing and management for automotive and light mobility vehicles
- Auxiliary battery monitoring in xEV
- Lead acid battery measurement for power supplies in industrial and medical domains
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADUCM342
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
2
Documentation
Quality Documentation 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADUCM342WFSBCPZ-RL |
32-Lead LFCSP (6mm x 6mm x 0.95mm w/ EP)
|
|
- ADUCM342WFSBCPZ-RL
- Pin/Package Drawing
-
32-Lead LFCSP (6mm x 6mm x 0.95mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 14, 2023
- 23_0142
Qualification of Alternate Fab Site for Eflash Products
ADUCM342WFSBCPZ-RL
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 14, 2023
- 23_0142
Qualification of Alternate Fab Site for Eflash Products
ADUCM342WFSBCPZ-RL
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 1
EVAL-ADUCM342
EVAL-ADuCM342EBZ Development System
Product Detail
The ADuCM342 is fully integrated, 8 kSPS, data acquisition systems incorporating dual, high performance, Σ-Δ analog-to-digital converters (ADCs), with a 32-bit ARM Cortex™-M3 processor and Flash/EE memory on a single chip.
The ADuCM342 is complete system solutions for battery monitoring in 12 V automotive applications. The ADuCM342 integrates all of the required features to precisely and intelligently monitor, process, and diagnose 12 V battery parameters including battery current, voltage, and temperature over a wide range of operating conditions. The ADuCM342 has 128 kB program flash.

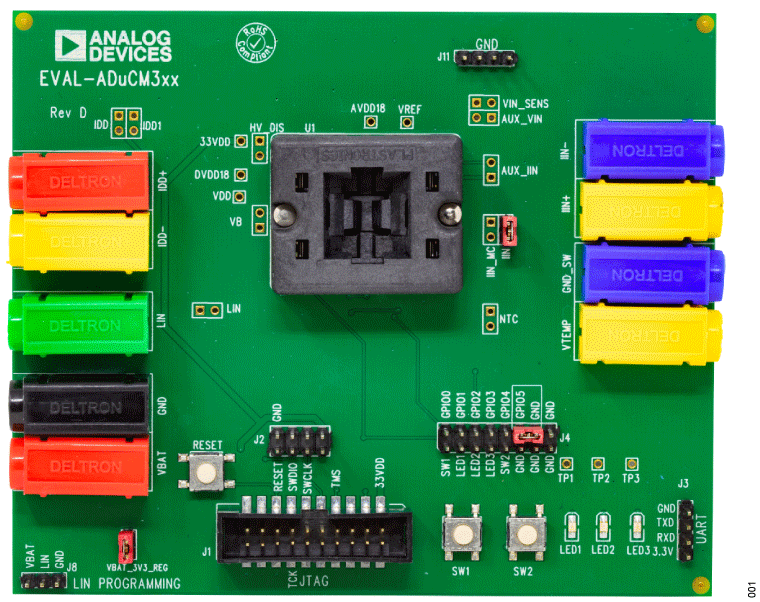

The EVAL-ADuCM342EBZ development system supports the ADuCM342 and allows a flexible platform for evaluation of the ADuCM342 silicon. The EVAL-ADuCM342EBZ development system allows quick removal and insertion of a device through a 32-lead LFCSP socket. It also provides the connections necessary to allow rapid measurement setups. Switches and LEDs are provided on the applications board to assist in debugging and simple code development. Sample code projects are also provided to show key features of each peripheral and examples of how they can be configured.
