Features and Benefits

  • Operates directly from 12 V battery supply
    Current consumption
    - Normal mode: 10 mA at 10 MHz
    - Low power monitor mode: 175 µA
High Precision Analog-to-Digital Converters (ADCs)
  • Dual channel, simultaneous sampling, 16-bit Σ-Δ ADCs
  • Third independent ADC for temperature sensing
  • Programmable ADC throughput from 1 Hz to 8 kHz
  • On-chip 5 ppm/°C voltage reference
  • Current channel
    Fully differential, buffered input
    Programmable gain: 1 to 512
    ADC input range: −200 mV to +300 mV
    Digital comparators, with current accumulator feature
  • Voltage channel
    Buffered, on-chip attenuator for 12 V battery inputs
  • Temperature channel
    External and on-chip temperature sensor options
  • 96 kB Flash/EE memory, 6 kB SRAM
    10k-cycle Flash/EE endurance, 20-year Flash/EE retention
    In-circuit download via JTAG and LIN
    64 × 16-bit result FIFO for current and voltage ADC
  • Package and temperature range

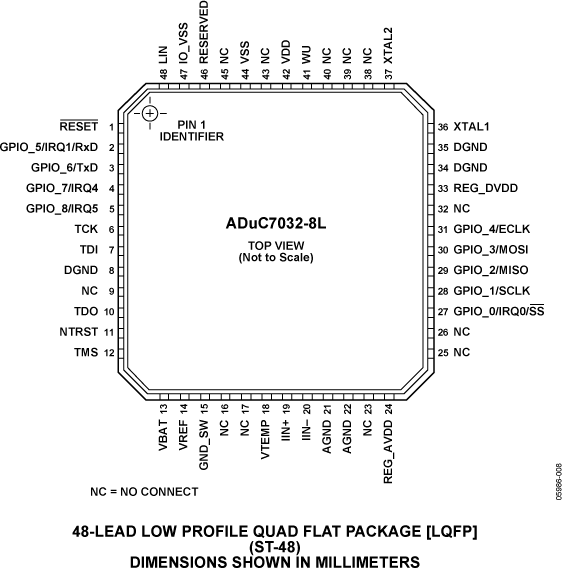

    48-lead, 7 mm × 7 mm LQFP
    Fully specified for −40°C to +105°C operation
  • ARM7TDMI core, 16-/32-bit RISC architecture
  • 20.48 MHz PLL with programmable divider
  • PLL input source
    On-chip precision oscillator
    On-chip low power oscillator
    External (32.768 kHz) watch crystal
  • JTAG port supports code download and debug
On-Chip Peripherals
  • LIN 1.3- and 2.0-compatible (slave) support via UART with hardware synchronization
  • Flexible wake-up I/O pin, master/slave SPI serial I/O
  • 9-pin GPIO port, 2× general-purpose timers
  • Wake-up and watchdog timers
  • Power supply monitor, on-chip power-on reset

Product Details

The ADuC7032-8L is a complete system solution for battery monitoring in 12 V automotive applications. The device integrates all of the required features to precisely and intelligently monitor, process, and diagnose 12 V battery parameters, including battery current, voltage, and temperature, over a wide range of operating conditions.

Minimizing external system components, the device is powered directly from the 12 V battery. An on-chip, low dropout (LDO) regulator generates the supply voltage for the three integrated 16-bit ADCs. The ADCs precisely measure battery current, voltage, and temperature, which can be used to characterize the state of health and charge of a car battery.

A Flash/EE memory-based ARM7™ microcontroller (MCU) is also integrated on-chip and is used both to preprocess the acquired battery variables and to manage communications from the ADuC7032-8L to the main electronic control unit (ECU) via a local interconnect network (LIN) interface, which is integrated on-chip.

Both the MCU and the ADC subsystem can be individually configured to operate in normal or flexible power saving modes of operation.

In its normal operating mode, the MCU is clocked indirectly from an on-chip oscillator via the phase-locked loop (PLL) at a maximum clock rate of 20.48 MHz. In its power-saving operating modes, the MCU can be totally powered down, waking up only in response to an ADC conversion result ready, digital comparators, the wake-up timer, a power-on reset (POR), or an external serial communication event.

The ADC can be configured to operate in a normal (full-power) mode of operation, interrupting the MCU after various sample conversion events. The current channel features two low power modes: low power and low power plus, generating conversion results to a lower performance specification.

On-chip factory firmware supports in-circuit Flash/EE memory reprogramming via the LIN or JTAG serial interface ports, and nonintrusive emulation is also supported via the JTAG interface. These features are incorporated into a low cost QuickStart™ Plus development system supporting the ADuC7032-8L.

The ADuC7032-8L operates directly from the 12 V battery supply and is fully specified over a temperature range of −40°C to +105°C. The ADuC7032-8L is functional, with degraded performance, at temperatures from 105°C to 125°C.


  • Battery sensing/management for automotive systems
  • Product Lifecycle icon-recommended Production

    At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
