ADTR1107

6 GHz to 18 GHz, Front-End IC

Buy Now

Recommended for New Designs

Top

Overview

Features and Benefits
Product Details

Features and Benefits

Operates from 6 GHz to 18 GHz
25 dBm typical transmit state P_SAT
22 dB typical transmit state small signal gain

18 dB typical receive state small signal gain
2.5 dB typical receive state noise figure
Coupled power amplifier output for power detection

Product Details

The ADTR1107 is a compact, 6 GHz to 18 GHz, front-end IC with an integrated power amplifier, low noise amplifier (LNA), and a reflective single-pole double-throw (SPDT) switch. These integrated features make the device ideal for phased array antenna and radar applications. The front-end IC offers 25 dBm of saturated output power (P_SAT) and 22 dB small signal gain in transmit state, and 18 dB small signal gain and 2.5 dB noise figure in receive state. The device has a directional coupler for power detection. The input/outputs (I/Os) are internally matched to 50 Ω. The ADTR1107 is supplied in a 5 mm × 5 mm, 24-terminal, land grid array (LGA) package.

Applications

Phased array antenna
Military radar
Weather radar
Communication links
Electronic warfare

Product Categories

Amplifiers
- Phased Array RF Front-End ICs (LNA, PA, Switch)
- Power Amplifiers

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (2)

EVAL-ADTR1107

Evaluating the ADTR1107 with 6 GHz to 18 GHz, Front-End IC

X-Band Phased Array Platform

Scalable 32 Element Hybrid Beamforming Phased-Array RADAR Development Platform

EVAL-ADTR1107

View Detailed Evaluation Kit Information

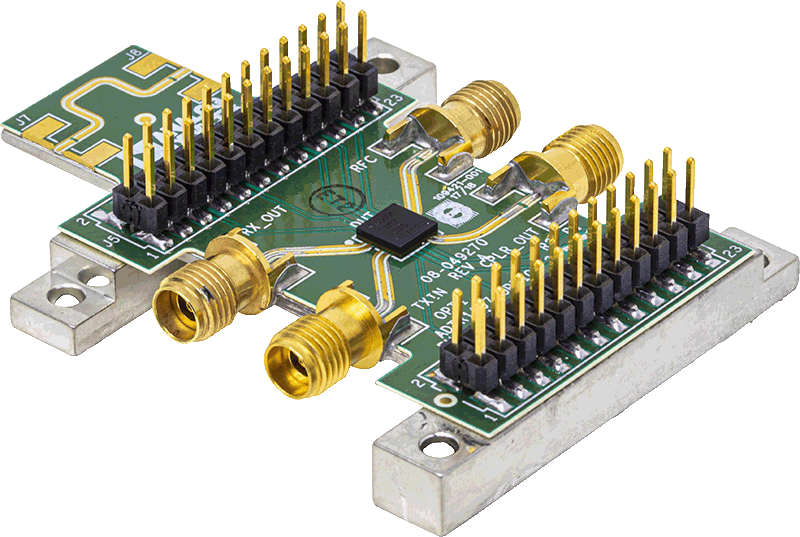

The ADTR1107-EVAL evaluation board consists of a two-layer printed circuit board (PCB) fabricated from a 10 mil thick, Rogers 4350B copper clad mounted to an aluminum heat sink. The heat sink assists in providing thermal relief to the device as well as mechanical support to the PCB. Mounting holes on the heat sink allow attachment to larger heat sinks for improved thermal management.

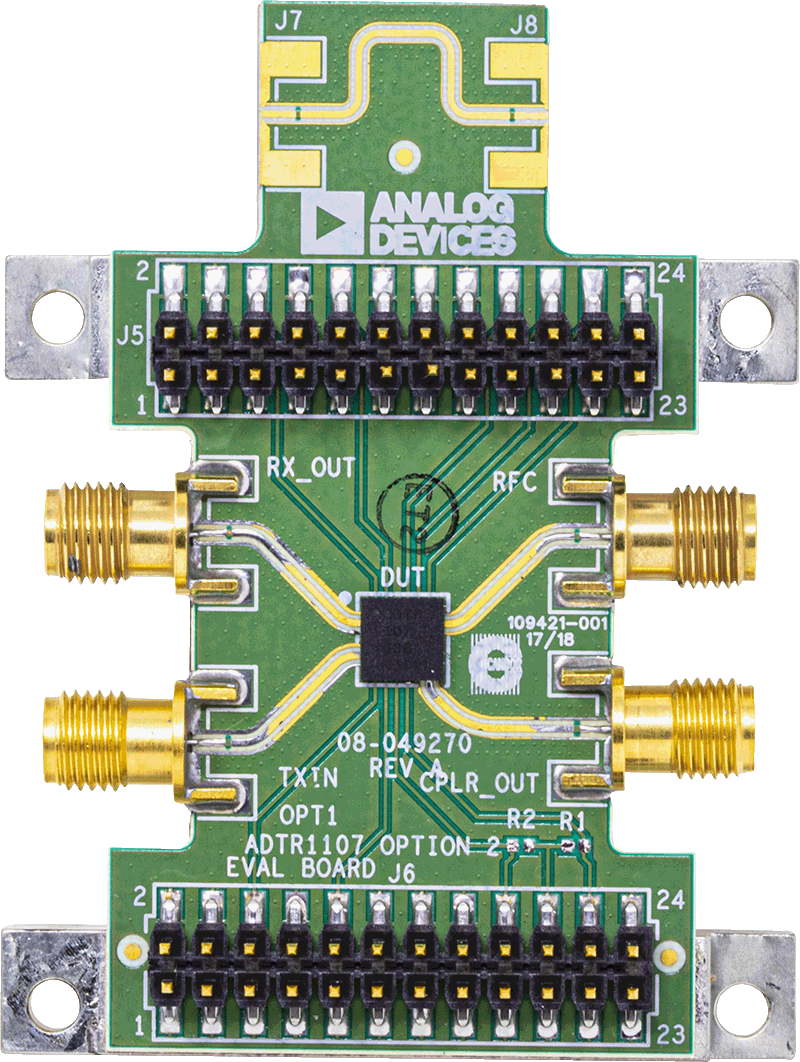

The TX_IN, ANT, RX_OUT, and CPLR_OUT ports are populated by 2.9 mm, female coaxial connectors. The respective RF traces of the ports have a 50 Ω characteristic impedance. The ADTR1107-EVAL is populated with components suitable for use over the −40°C to +85°C operating temperature range of the ADTR1107. To calibrate board trace losses, a through calibration path is provided. However, to use the through calibration path, users must install and populate the path with RF connectors.
