ADSY1100

4 Tx/4 Rx, 0.1 GHz to 20 GHz Apollo MxFE 3UVPX Tuner + Digitizer + Processor

Show More showmore-icon

warning : PRE-RELEASE tooltip
warning : PRE-RELEASE tooltip
Part Details
Part Models 24
1ku List Price
price unavailable
Features
  • Four transmit (Tx) channels
    • Up to 28GSPS DACs
  • Four receive (Rx) channels
    • Up to 20GSPS ADCs
  • Swappable RF tuner personality cards
    • 0.1-20GHz tuning
    • Multiple tuner options
    • Phase and Hop Coherency
  • Memory Options
    • 8 GB DDR4 Data Memory
    • 4 GB DDR4 Processing Memory
    • 270 Mb Ultra RAM
  • Apollo MxFE™ Integrated DSP
    • DDC and DUC Up To 1,536x
    • RX to TX loopback
    • Fractional Sample Rate Converter
    • 512-point FFT Sniffer
  • 12 V power supply
  • Virtex™ VU11P
  • Zynq™ ZU4EG
  • Offload and Control Interfaces
    • 1 Gb Ethernet
    • 10 Gb Ethernet
    • 40 Gb Ethernet
    • 2x100 Gb Optical Ethernet
    • PCIe Gen. 3 interface x 8 lanes
  • SOSA-aligned
    • 1” pitch 3UVPX form factor
Additional Details
show more Icon

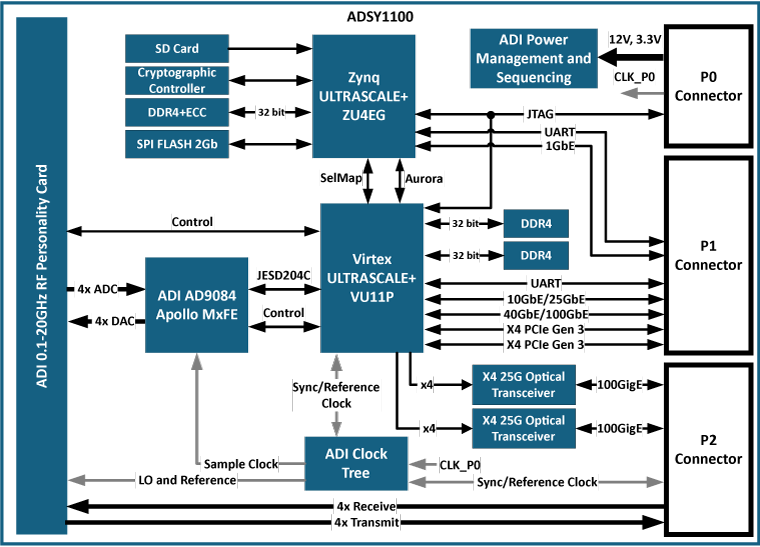

Analog Devices’ ADSY1100-series is a family of wideband multichannel RF digitizers in a 3UVPX SOSA™-aligned format. The system is built around ADI’s next generation “Apollo” MXFE™ product (AD9084) featuring DAC sample rates up to 28 GSPS and ADC sample rates up to 20 GSPS in a 4Tx / 4Rx configuration. The AD9084 includes integrated digital signal processing such as digital decimation, interpolation, numerically controlled oscillators (NCO), FFT sniffers, RX to TX loopback, linearization algorithms, fractional rate samplers and more. These built-in power-efficient DSP features free up FPGA resources for user-defined mission-specific processing. The digitizer card pairs AD9084 with the AMD Virtex™ Ultrascale+ family of FPGAs. Depending on processing and power requirements, the user can vary settings options of the FPGA as needed. Swappable RF/Microwave Tuner Personality Cards mate to the digitizer card within the single 1" pitch chassis to allow optimized performance for a variety of applications. A Sensor Open Systems Architecture™ (SOSA™) aligned slot profile is used for the backplane connectors, allowing for a flexible system design which integrates well into customer prototype demonstrations. Software drivers are provided for enabling fast deployment.

APPLICATIONS

  • Electronic test and measurement systems
  • Radar and communications
  • Electronic warfare
  • Phased array system
  • Broadband communications systems
