ADRF5700

RECOMMENDED FOR NEW DESIGNS

46 dB, 2 dB LSB, 5-Bit, Silicon Digital Attenuator, 100 MHz to 22 GHz

Data Sheet (Rev. 0) Product Selection Table
Viewing:

Overview

  • Wideband frequency range: 100 MHz to 22 GHz
  • Attenuation range: 46 dB with 2 dB steps
  • Low insertion loss
    • 1.6 dB typical up to 10 GHz
    • 2.0 dB typical up to 20 GHz
  • Excellent attenuation accuracy
    • +(0.1 + 0.5% of attenuation state) typical up to 10 GHz
    • -(0.1 + 2.0% of attenuation state) typical up to 10 GHz
    • +(0.1 + 0.5% of attenuation state) typical up to 20 GHz
    • -(0.1 + 3.0% of attenuation state) typical up to 20 GHz
  • Low step error
    • ±0.2 dB typical up to 10 GHz
    • ±0.3 dB typical up to 20 GHz
  • High input linearity
    • P0.1dB: >27 dBm typical at all attenuation states
    • P1dB: >30 dBm typical at all attenuation states
    • IP3: >47 dBm typical at all attenuation states
  • High RF power handling
    • 24 dBm steady state average
    • 30 dBm steady state peak
  • Consistent return loss at all attenuation states
  • Tight distribution in relative phase
  • No low frequency spurious signals
  • Parallel mode control, CMOS/LVTTL compatible
  • RF amplitude settling time (0.1 dB of final RF output): 130 ns
  • 20-terminal, 3.0 mm x 3.0 mm LGA package

The ADRF5700 is a silicon, 5-bit digital attenuator with 46 dB attenuation control range in 2 dB steps.

This device operates from 100 MHz to 22 GHz with better than 2.0 dB of insertion loss and high attenuation accuracy. The ADRF5700 supports bidirectional operation and has a RF input power handling capability of 24 dBm average and 30 dBm peak for all attenuation states.

The ADRF5700 requires a dual-supply voltage of +3.3 V and −3.3 V. The device features parallel mode control, and complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls.

The ADRF5700 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (VSS) is tied to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance are derated (see Table 2 in the data sheet).

The ADRF5700 RF ports are designed to match a characteristic impedance of 50 Ω. The ADRF5700 comes in a 20-terminal, 3.0 mm × 3.0 mm, RoHS compliant, land grid array (LGA) package and operates from −40°C to +105°C.

APPLICATIONS

  • Industrial scanners
  • Test and instrumentation
  • Cellular infrastructure: 5G millimeterwave
  • Military radios, radars, electronic counter measures (ECMs)
  • Microwave radios and very small aperture terminals (VSATs)

    •
    ADRF5700
    46 dB, 2 dB LSB, 5-Bit, Silicon Digital Attenuator, 100 MHz to 22 GHz

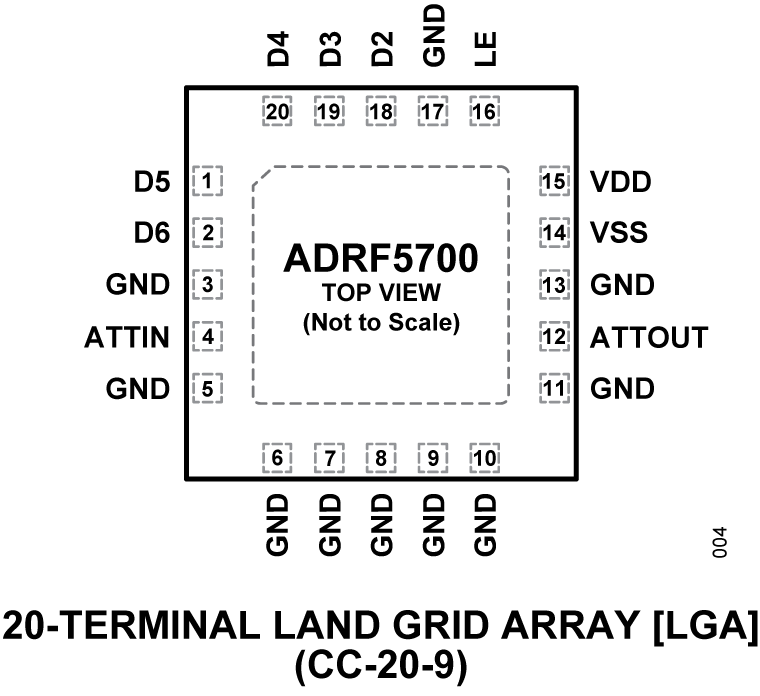

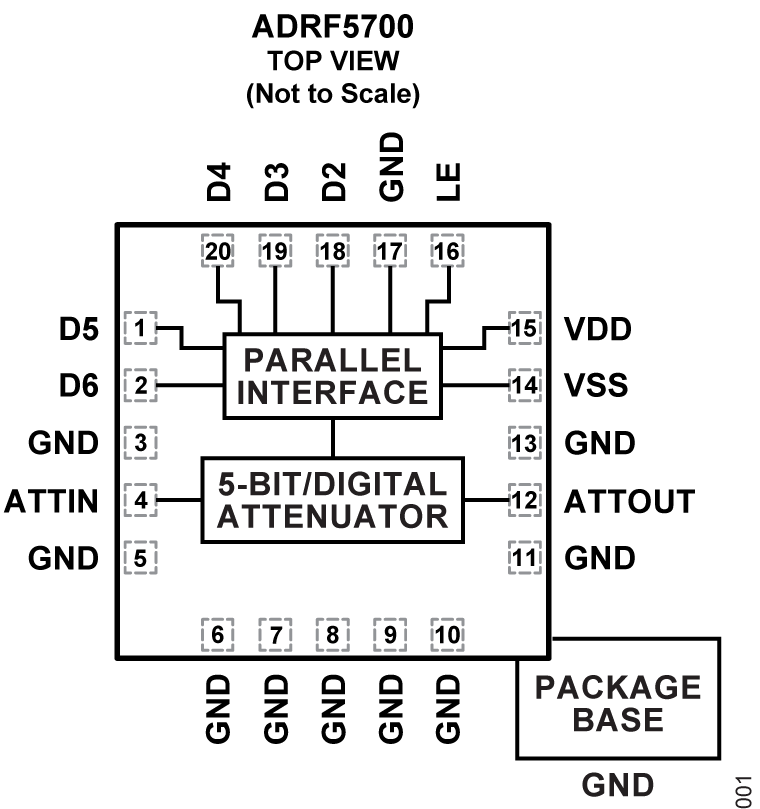

    ADRF5700 - Functional Block Diagram ADRF5700 - Pin Configuration
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project
    Ask a Question

    Documentation

    Data Sheet 1

    User Guide 1

    Learn More
    Add to myAnalog

    Add media to the Resources section of myAnalog, to an existing project or to a new project.

    Create New Project

    Software Resources

    Can't find the software or driver you need?

    Request a Driver/Software

    Tools & Simulations

    S-Parameter 1

    Evaluation Kits

    eval board
    schematic 1
    schematic 2
    schematic 3
    EVAL-ADRF5700

    Evaluating the ADRF5700, 2 dB LSB, 5-Bit, Silicon Digital Attenuator, 100 MHz to 22 GHz

    Buy Now View Details

    Features and Benefits

  • Full featured evaluation board for the ADRF5700
  • Simple connection to test equipment
  • Through line for calibration

    • Product Details

    The ADRF5700 is a 100 MHz to 22 GHz, 2 dB LSB, 5-bit digital attenuator manufactured in the silicon process.

    The user guide describes the ADRF5700-EVALZ evaluation board, which was designed to simply evaluate the features and performance of the ADRF5700. A photograph of the evaluation board is shown in Figure 1 of the user guide.

    The ADRF5700 data sheet provides full specifications for the ADRF5700. Consult the ADRF5700 data sheet in conjunction with the user guide when using the ADRF5700-EVALZ.
    EVAL-ADRF5700
    Evaluating the ADRF5700, 2 dB LSB, 5-Bit, Silicon Digital Attenuator, 100 MHz to 22 GHz
    ADRF5700 Evaluation Board - Angle ADRF5700 Evaluation Board - Top ADRF5700 Evaluation Board - Bottom
