ADRF5420

RECOMMENDED FOR NEW DESIGNS

Flip-Chip, Silicon SPDT Switch, 1 GHz to 90 GHz

Viewing:

Overview

  • Frequency range: 1GHz to 90GHz
  • Low insertion loss
    • 1.2dB typical to 40GHz
    • 1.7dB typical to 67GHz
    • 3.0dB typical to 90GHz
  • High Isolation
    • 42dB typical up to 40GHz
    • 40dB typical up to 67GHz
    • 30dB typical up to 81GHz
  • High input linearity
    • P0.1dB: 24dBm typical
    • IP3: 45dBm typical
  • High RF input power handling
    • Through path: 24dBm
    • Hot switching: 21dBm
  • No low frequency spurs
  • CMOS/LVTTL compatible
  • Fast RF switching time: 15 ns
  • RF settling time (50% VCTRL to 0.1dB of final RF output): 35ns
  • Single-supply operation capability (VDD = 3.3V , VSS = 0V)
  • 30-ball, 1.56mm × 2.04mm, bumped, bare die sales
ADRF5420
Flip-Chip, Silicon SPDT Switch, 1 GHz to 90 GHz

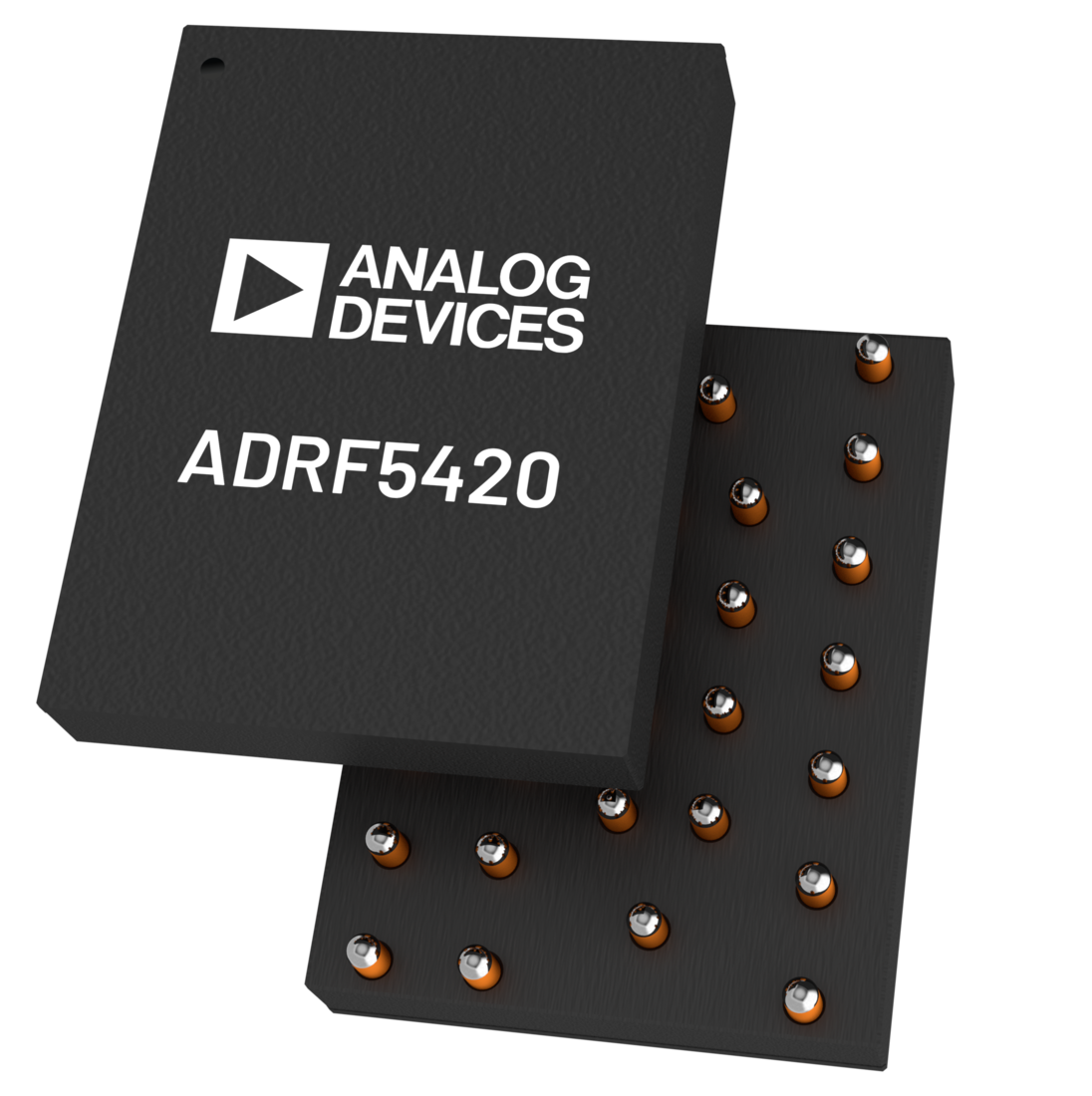

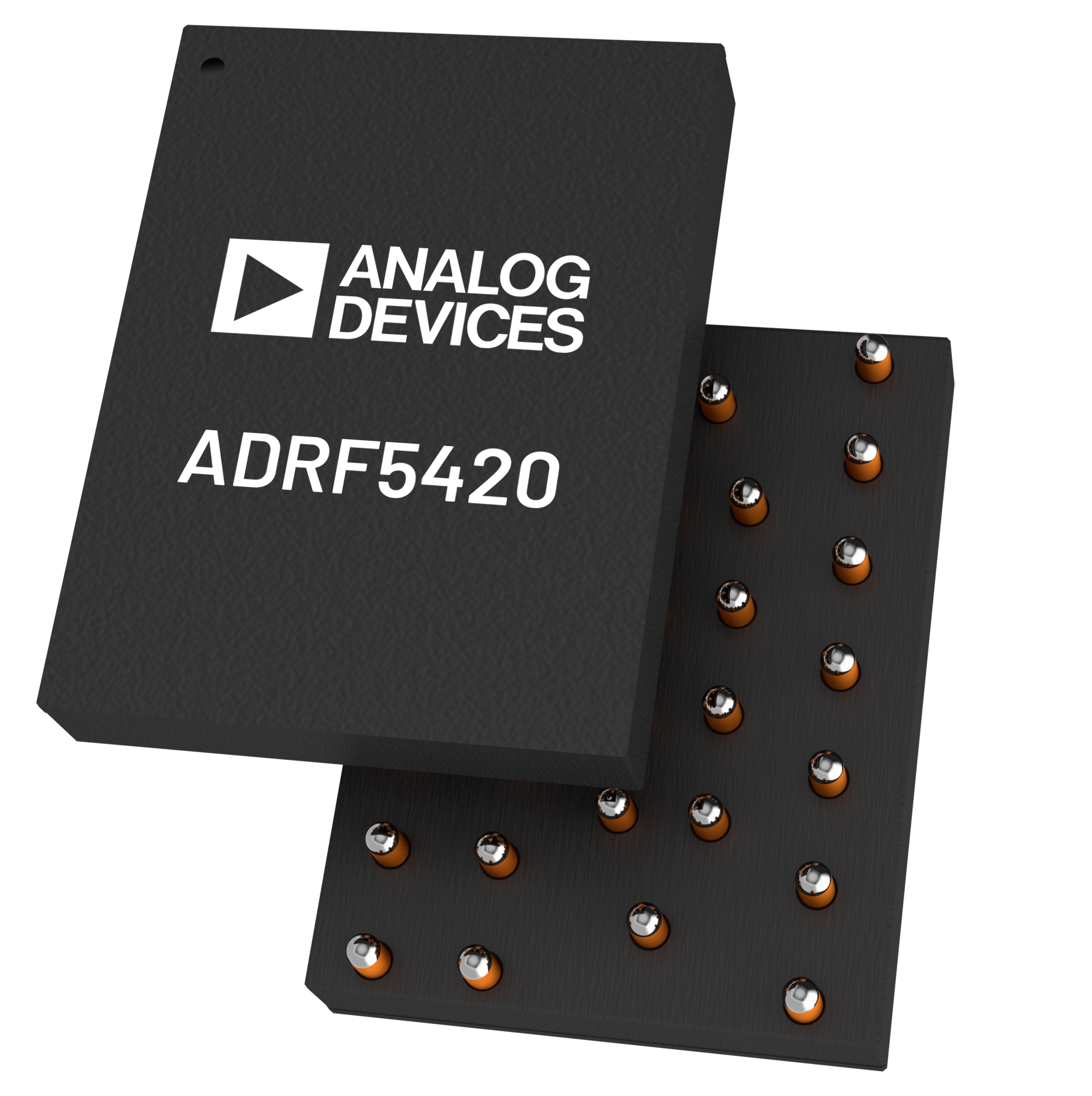

ADRF5420 Functional Block Diagram ADRF5420 Pin Configuration ADRF5420 - Chip Image
