ADRF5347

RECOMMENDED FOR NEW DESIGNS

High Linearity, Silicon SP4T Switch, 1.8 GHz to 3.8 GHz

Part Models
3
1ku List Price
Starting From $11.80
Viewing:

Part Details

  • Low insertion loss
    • 0.35 dB to 2.8 GHz typical
    • 0.42 dB to 3.8 GHz typical
  • High input linearity, IP3: 84 dBm typical
  • High power handling at TCASE = 105°C
  • Long-term (>10 years) average
    • Continuous wave power: 39 dBm
    • LTE signal
      • Average power: 39 dBm
      • Peak power: 49 dBm
  • Fast 0.1 dB settling time : 720 ns typical
  • ESD ratings
    • HBM: 1000 V, Class 1B
    • CDM: 750 V, Class C4
  • Positive control, LVCMOS-/LVTTL- compatible
  • 4 mm x 4 mm, 20-terminal LGA package
ADRF5347
High Linearity, Silicon SP4T Switch, 1.8 GHz to 3.8 GHz

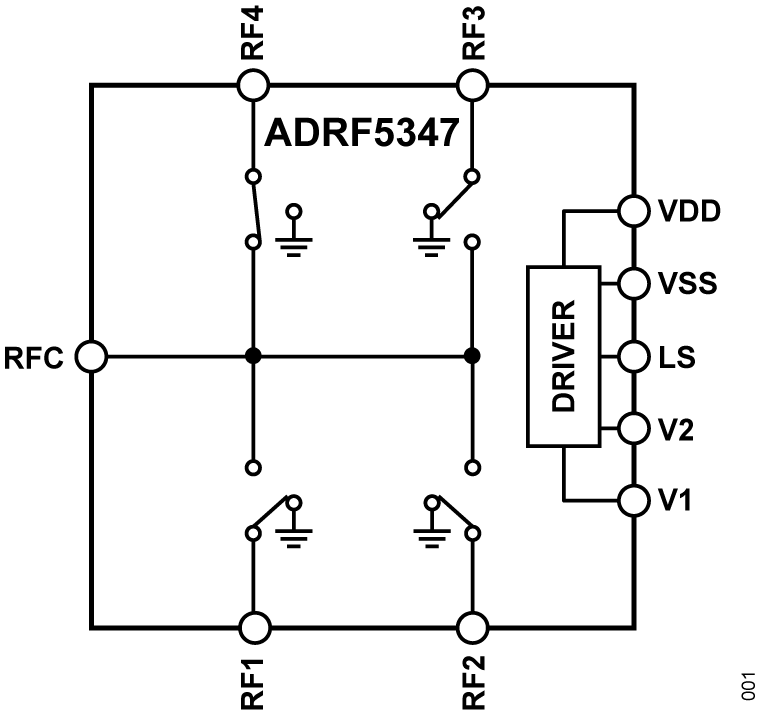

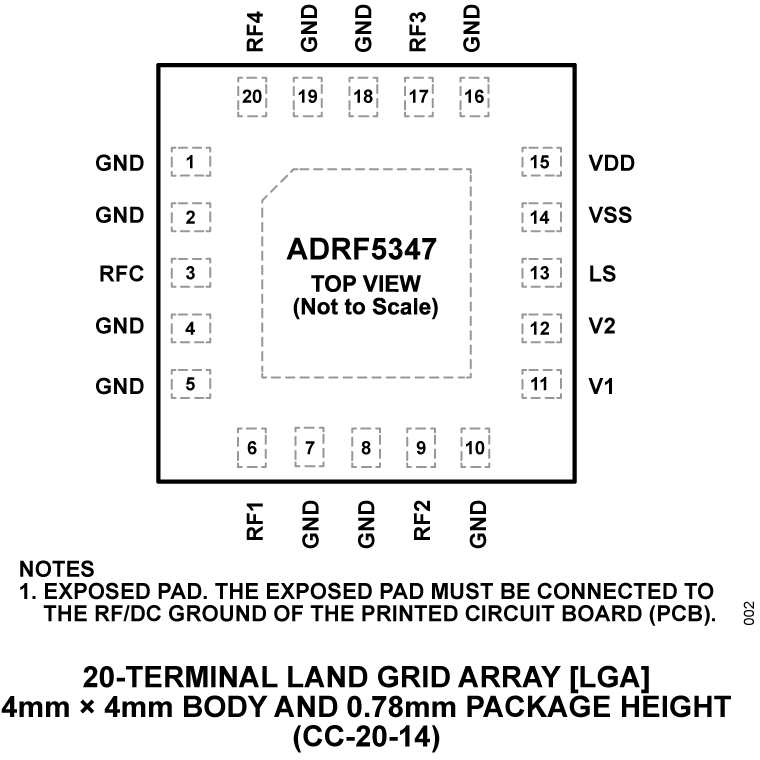

ADRF5347 Functional Block Diagram
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations


Evaluation Kits

eval board
EVAL-ADRF5347

Evaluation of the ADRF5347 High Linearity, Silicon SP4T Switch, 1.8 GHz to 3.8 GHz

Features and Benefits

  • Full featured evaluation board for the ADRF5347
  • Easy connection to test equipment
  • Thru line for calibration

Product Details

The ADRF5347 is a high linearity, single-pole, four-throw (SP4T) switch manufactured in the silicon process.

The user guide describes the ADRF5347-EVALZ evaluation board, designed to evaluate the features and performance of the ADRF5347. Figure 1 in the user guide shows a photograph of the evaluation board.

The ADRF5347 data sheet provides full specifications for the ADRF5347. Consult the ADRF5347 data sheet in conjunction with the user guide when using the ADRF5347-EVALZ.

EVAL-ADRF5347
Evaluation of the ADRF5347 High Linearity, Silicon SP4T Switch, 1.8 GHz to 3.8 GHz
ADRF5347 Evaluation Board - Angle ADRF5347 Evaluation Board - Top ADRF5347 Evaluation Board - Bottom
