ADRF5162

RECOMMENDED FOR NEW DESIGNS

ADRF5162

High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz

RECOMMENDED FOR NEW DESIGNS

Part Details

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $25.93

Features

Frequency range: 0.4 GHz to 8 GHz
Low insertion loss: 0.6 dB typical to 4 GHz
High Isolation: 45 dB typical to 4 GHz
High input linearity
- 0.1 dB power compression (P0.1dB): 49 dBm
- Third order intercept (IP3): >76 dBm
High power handling at T_CASE = 85°C:
- Insertion loss path
  - Average: 45.5 dBm
  - Pulsed (>100 ns pulse width, 15% duty cycle): 48.5 dBm
  - Peak (≤100 ns peak duration, 5% duty cycle): 50 dBm
- Hot-switching at RFC: 43 dBm

0.1 dB RF settling time with P_IN ≤ 43 dBm: 1.2 μs
No low frequency spurious
Positive control interface: CMOS/LVTTL-compatible
24-lead, 4.0 mm × 4.0 mm LFCSP package

Additional Details

The ADRF5162 is a reflective, single pole double-throw (SPDT) switch manufactured in the silicon process.

The ADRF5162 operates from 0.4 GHz to 8 GHz with typical insertion loss of 0.6 dB and typical isolation of 45 dB. The device has a radio frequency (RF) input power handling capability of 45.5 dBm average power and 50 dBm peak power for the insertion loss path.

The ADRF5162 draws a low current of 130 μA on the positive supply of +3.3 V and 500 μA on negative supply of −3.3 V. The device employs complementary metal-oxide semiconductor (CMOS)-/low-voltage transistor to transistor logic (LVTTL)-compatible controls. The ADRF5162 requires no additional driver circuitry, which makes it an ideal alternative to GaN and PIN diode-based switches.

The ADRF5162 comes in a 24-lead, 4.0 mm × 4.0 mm, RoHS-compliant, lead frame chip scale package (LFCSP) package and can operate from −40°C to +105°C.

APPLICATIONS

Military radios, radars, and electronic counter measures
Cellular infrastructure
Test and instrumentation
GaN and PIN diode replacement

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $25.93

Documentation

Technical Documents 2

ADRF5162: High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz Data Sheet (Rev.0) 08/16/2024

UG-2256: Evaluating the ADRF5162 High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz (Rev.0) 08/16/2024

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADRF5162BCPZN	24-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADRF5162BCPZN-R7	24-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADRF5162BCPZN
Pin/Package Drawing
24-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADRF5162BCPZN-R7
Pin/Package Drawing
24-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Software & Part Ecosystem

Evaluation Kit

EVAL-ADRF5162

Evaluating the ADRF5162 High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz

Evaluating the ADRF5162 High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz

Download

EVAL-ADRF5162

Evaluating the ADRF5162 High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz

Features and Benefits

Full featured evaluation board for the ADRF5162
Easy connection to the test equipment
Thru line for calibration

Buy Now View Details

Product Detail

The ADRF5162 is a single-pole, double-throw (SPDT) switch manufactured in the silicon process.

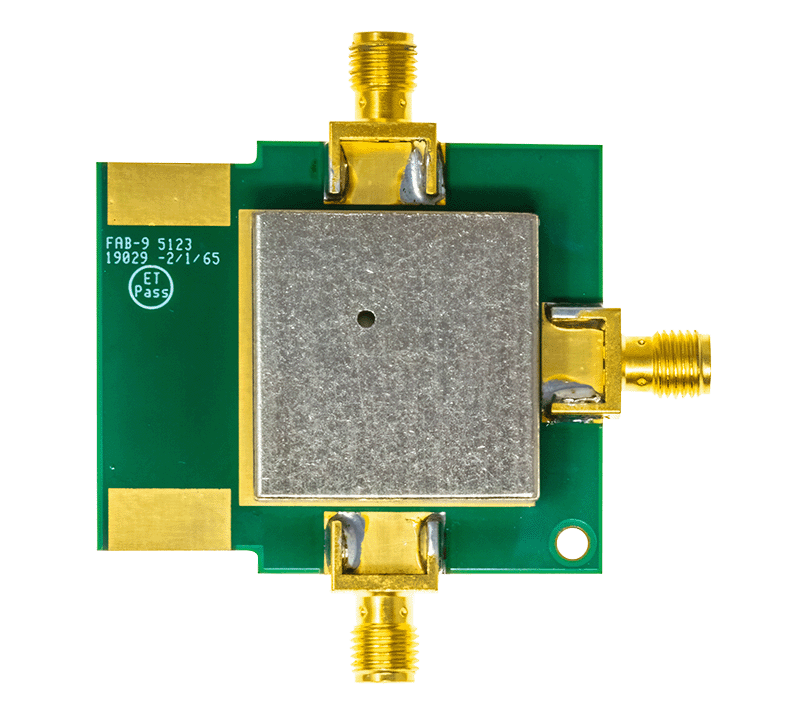

This user guide describes the ADRF5162-EVALZ evaluation board, designed to simply evaluate the features and performance of the ADRF5162. Figure 1 shows a photograph of the evaluation board.

The ADRF5162 data sheet provides full specifications for the ADRF5162. Refer to the ADRF5162 data sheet with this user guide when using the ADRF5162-EVALZ.

Resources

PDF

UG-2256: Evaluating the ADRF5162 High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz (Rev.0)
