ADRF5132

High Power, 20 W Peak, Silicon SPDT, Reflective Switch, 0.7 GHz to 5.0 GHz

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.B)
Documentation View All Documentation
S-Parameter ADRF5132 S-Parameters Download undefinedB
Part Models 2
1ku List Price Starting From $13.59
Features
  • Reflective, 50 Ω design
  • Low insertion loss: 0.6 dB typical at 2.7 GHz
  • High power handling at TCASE = 105°C
    • Long-term (>10 years operation)
      • Peak power: 43 dBm
      • CW power: 38 dBm
      • LTE power average (8 dB PAR): 35 dBm
  • Single event (<10 sec operation)
    • LTE power average (8 dB PAR): 41 dBm
  • High linearity
    • P0.1dB: 42.5 dBm typical
    • IP3: 65 dBm typical at 2.0 GHz to 4.0 GHz
  • ESD ratings
    • HBM: 2 kV, Class 2
    • CDM: 1.25 kV
  • Single positive supply: 5 V
  • Positive control, CMOS/TTL compatible
  • 16-lead, 3 mm × 3 mm LFCSP package
Additional Details
show more Icon

The ADRF5132 is a high power, reflective, 0.7 GHz to 5.0 GHz, silicon, single-pole, double-throw (SPDT) reflective switch in a leadless, surface-mount package. The switch is ideal for high power and cellular infrastructure applications, like long-term evolution (LTE) base stations. The ADRF5132 has high power handling of 35 dBm LTE (average typical at 105°C), a low insertion loss of 0.6 dB at 2.7 GHz, input third-order intercept of 65 dBm (typical), and 0.1 dB compression (P0.1dB) of 42.5 dBm.

The on-chip circuitry operates at a single, positive supply voltage of 5 V and a typical supply current of 1.1 mA typical, making the ADRF5132 an ideal alternative to pin diode-based switches.

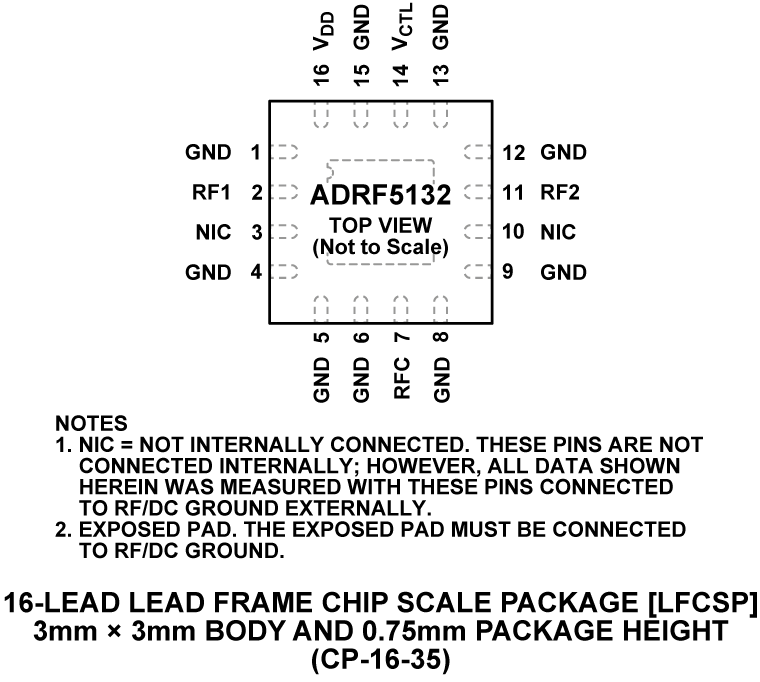

The device is in a RoHS compliant, compact, 16-lead, 3 mm × 3 mm LFCSP package.

Applications

  • Cellular/4G infrastructure
  • Wireless infrastructure
  • Military and high reliability applications
  • Test equipment
  • Pin diode replacement
Show More Arrow image
file View Data Sheet (Rev.B)
Documentation View All Documentation
S-Parameter ADRF5132 S-Parameters Download undefinedB
Part Models 2
1ku List Price Starting From $13.59
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADRF5132

Documentation

6
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Evaluation Design File
  • Data Sheet
  • Design Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 01/08/2018
English

ADRF5132: High Power, 20 W Peak, Silicon SPDT, Reflective Switch, 0.7 GHz to 5.0 GHz Data Sheet (Rev.B)

Open PDF File

redirect
359.85 K
download

Download PDF

PDF Vector

PDF

UPDATED 01/08/2018
Japanese

ADRF5132: 高電力、20 W ピーク、シリコン SPDT、反射スイッチ、0.7 GHZ ～ 5.0 GHZ データシート (Rev.0)

Open PDF File

redirect
359.85 K
download

Download PDF

Evaluation Design File

1

PDF Vector

ZIP

UPDATED 02/11/2019
English
ADRF5132 Gerber Files redirect icon

4.33 M

download

Download PDF

Design Note

3

PDF Vector

HTML

UPDATED 09/01/2018
English
ADI’s High Power Silicon Switches Save Bias Power and External Components in Massive MIMO RF Front-End Design redirect icon

PDF Vector

HTML

UPDATED 09/01/2018
Chinese
ADI 的高功率硅开关可节省大规模 MIMO RF 前端设计中的偏置功率和外部组件 redirect icon

PDF Vector

HTML

UPDATED 09/01/2018
Japanese
Massive MIMOのRFフロント・エンドに最適な大電力対応のシリコン・スイッチ、バイアス電力と部品点数の削減に貢献 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Product Selection Guide 1

RF, Microwave, and Millimeter Wave Product Selection Guide

Video

1

Thumbnail Image

Video

2018-07-02

01:43

High-Power Switches in Silicon (SOI)

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADRF5132BCPZN 16-Lead LFCSP (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADRF5132BCPZN-R7 16-Lead LFCSP (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 3, 2018

- 18_0083

ADRF5132 Data Sheet Change for Pin Functions

ADRF5132BCPZN

PRODUCTION

ADRF5132BCPZN-R7

PRODUCTION

pdf

PCN18_0083_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Revised Datasheet Specification

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 3, 2018

- 18_0083

arrow down

ADRF5132 Data Sheet Change for Pin Functions

ADRF5132BCPZN

PRODUCTION

ADRF5132BCPZN-R7

PRODUCTION

pdf

PCN18_0083_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Revised Datasheet Specification

external-icon

Software & Part Ecosystem

Evaluation Kits 1

reference details image

EVAL-ADRF5132

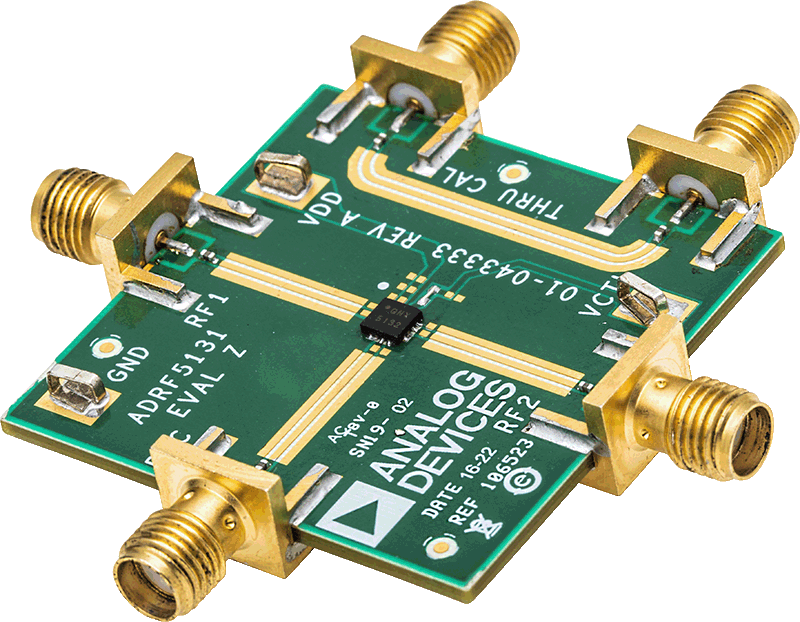

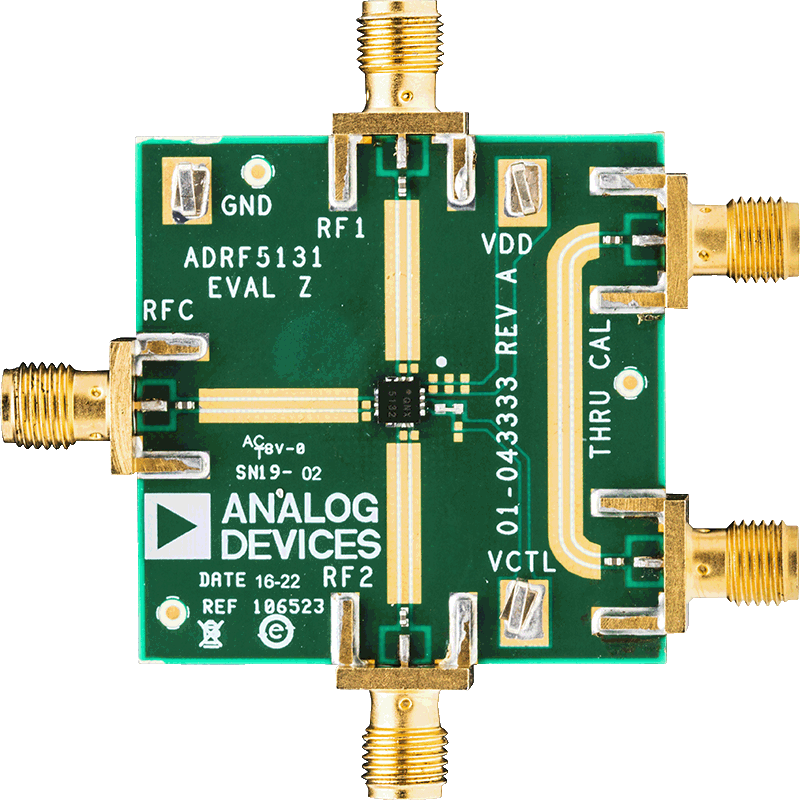

ADRF5132 Evaluation Board

zoom

EVAL-ADRF5132

ADRF5132 Evaluation Board

download icon

Download

 print icon

Print
EVAL-ADRF5132
ADRF5132 Evaluation Board
Buy Now View Details

Product Detail

The ADRF5132-EVALZ can handle high power levels and temperatures at which the device operates.

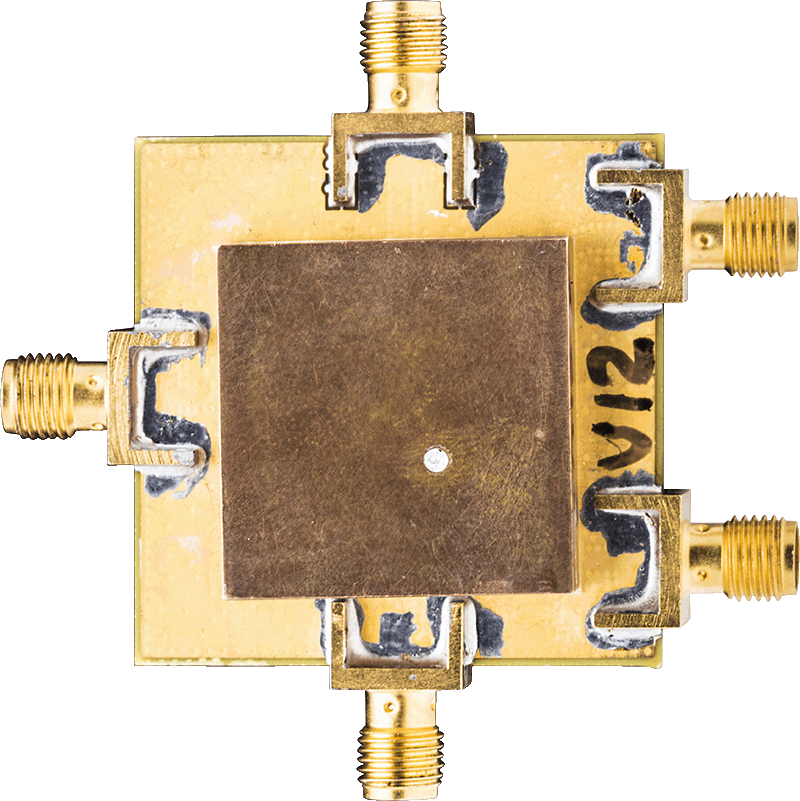

The ADRF5132-EVALZ evaluation board is constructed with eight metal layers and dielectrics between each layer. Each metal layer has 1 oz (1.3 mil) copper thickness, whereas the external layers are 1.5 oz.


The top dielectric material is 10 mil Rogers RO4350, which exhibits a very low thermal coefficient, offering control over thermal rise of the board. The dielectrics between other metal layers are FR4. The overall board thickness achieved is 60 mil.
