ADRF5026
Silicon SPDT Switch, Nonreflective, 100 MHz to 44 GHz
Top
Alternative Parts
Overview
Features and Benefits
- Ultrawideband frequency range: 100 MHz to 44 GHz
- Nonreflective design
- Low insertion loss:
- 1.2 dB to 18 GHz
- 1.7 dB to 26 GHz
- 2.4 dB to 40 GHz
- 3.8 dB to 44 GHz
- High isolation
- 55 dB to 18 GHz
- 53 dB to 26 GHz
- 50 dB to 40 GHz
- 45 dB to 44 GHz
- High input linearity
- P1dB: 27 dBm typical
- IP3: 53 dBm typical
- High power handling
- 24 dBm insertion loss path
- 24 dBm isolation path
- All off state control
- No low frequency spurious signals
- 0.1 dB RF settling time: 40 ns typical
- 20-terminal, 3 mm × 3 mm LGA package
- Pin compatible with ADRF5027, low frequency cutoff version
ADRF5026-EP supports defense and aerospace applications (AQEC standard)
- Download ADRF5026-EP data sheet (pdf)
- Supports defense and aerospace applications (AQEC standard)
- Military temperature range (−55°C to +105°C)
- Controlled manufacturing baseline
- 1 assembly/test site
- 1 fabrication site
- Product change notification
- Qualification data available on request
- V62/21601 DSCC Drawing Number
Product Details
The ADRF5026 is a nonreflective, single-pole, double-throw (SPDT) radio frequency (RF) switch manufactured in a silicon process.
The ADRF5026 operates from 100 MHz to 44 GHz with better than 3.8 dB of insertion loss and 45 dB of isolation. The ADRF5026 features an all off control, where both RF ports are in an isolation state. The ADRF5026 has a nonreflective design and both of the RF ports are internally terminated to 50 Ω.
The ADRF5026 requires a dual-supply voltage of +3.3 V and −3.3 V. The device employs complimentary metal-oxide semiconductor/low-voltage transistor-transistor logic (CMOS/LVTTL) logic-compatible controls.
The ADRF5026 is pin-compatible with the ADRF5027 low frequency cutoff version, which operates from 9 kHz to 44 GHz.
The ADRF5026 RF ports are designed to match a characteristic impedance of 50 Ω. For ultrawideband products, impedance matching on the RF transmission lines can further optimize high frequency insertion loss and return loss characteristics. Refer to the Narrow-Band Impedance Matching section for an example of a matched circuit that achieves a flat insertion loss response of 2.4 dB from 28 GHz to 43 GHz.

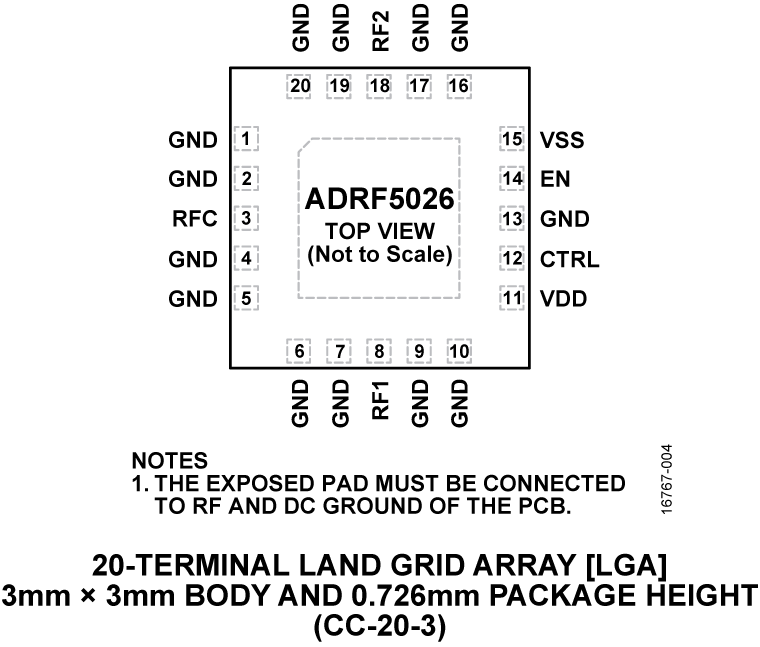

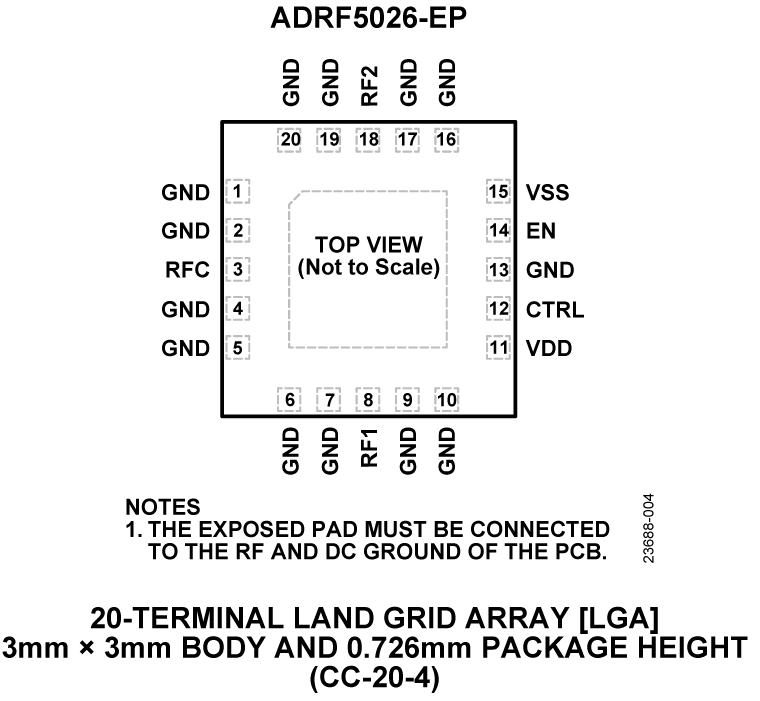

The ADRF5026 comes in a 20-terminal, 3 mm × 3 mm, RoHS-compliant, land grid array (LGA) package and can operate from −40°C to +105°C.
The ADRF5026 supports defense and aerospace applications (AQEC).
Applications
- Industrial scanners
- Test and instrumentation
- Cellular infrastructure: 5G mmWave
- Military radios, radars, electronic counter measures (ECMs)
- Microwave radios and very small aperture terminals (VSATs)
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
