Features and Benefits
- High long-term stability
- 0.5 ppm/year long-term drift, typical (after first 3000 hours)
- Low Zener reference noise: 0.14 ppm p-p (0.9 μV p-p)
- Low temperature coefficient: <0.2 ppm/°C
- On-chip heater and temperature sensor
- Specified for −40°C to +125°C operation
- Pin‐compatible upgrade to LTZ1000
The ADR1000 is a 6.62 V, output highly stable, oven-controlled, buried Zener reference component built on an Analog Devices, Inc., proprietary bipolar process and is a pin-compatible replacement for the LTZ1000. Included on the chip is a buried Zener reference, a heater resistor for temperature stabilization, and a temperature sensing transistor. External circuitry is used to set the operating currents and the temperature of the reference, allowing the maximum flexibility to achieve maximum long-term stability and minimum noise.
The ADR1000 application circuit can achieve a temperature coefficient of <0.2 ppm/°C and a long-term drift of 0.5 ppm per year (typical) after the first 3000 hours when properly implemented with the recommended external circuitry shown in Figure 9 in the data sheet and with the recommended layout.
The low long-term drift of the ADR1000 is well suited for any application that must maintain accuracy over long calibration intervals or product lifetime. The low thermal drift ensures the output is constant with temperature variation because the on‑chip heater of the ADR1000 maintains a constant temperature higher than the expected ambient range.
The ADR1000 is specified for operation over the extended industrial temperature range of −40°C to +125°C. To obtain the optimal thermal drift performance, the temperature set point of the heater needs to be 10°C higher than the maximum ambient temperature to provide optimum stability of the buried Zener reference.
The ADR1000 comes packaged in an industry-standard, 8-pin TO-99 metal can package that is hermetically sealed to resist the effects of humidity.
- High accuracy instrumentation
- Weigh scales
- Electric balance
- Automatic test equipment
- Metrology equipment
- Standard cells
Markets and Technologies
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

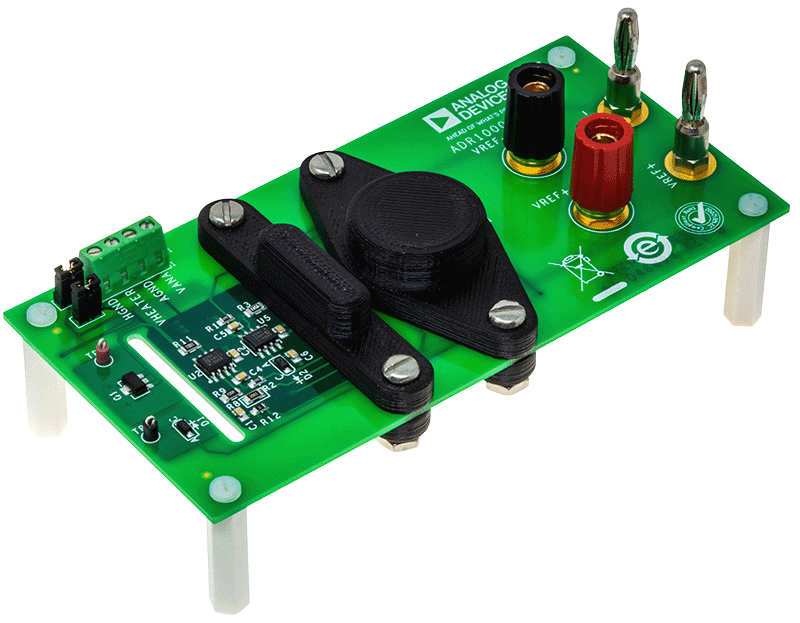

The ADR1000H-EBZ allows the evaluation of the ADR1000AHZ, ultra-stable 6.6V Shunt Voltage Reference in 8-Pin TO-99 package.

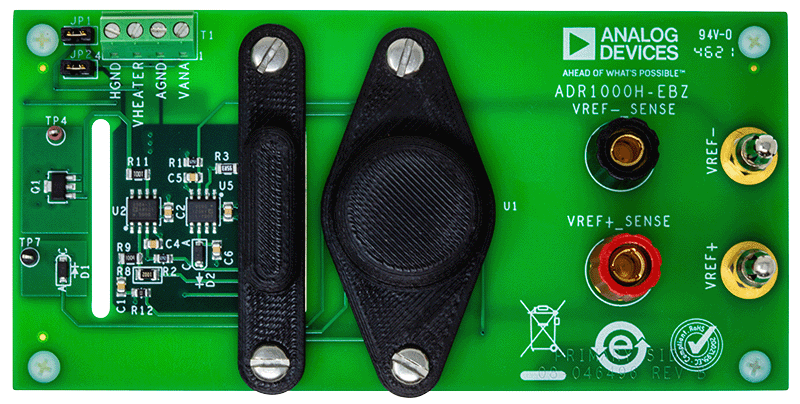

The DUT is centered in a fan shaped cutout of the PCB, designed to weaken mechanical coupling from the PCB to the DUT (effective for temperature and humidity, but not flexure). There are also thermal "baffles" (slots) in the PCB to keep heat from coupling from the heater transistor to the control circuit, and between the DUT and the resistors. The heater temperature is set by the standard 13k:1k divider as with the old LTZ1000. However, the ADR1000 runs about 5 degrees warmer (75C) than the LTZ1000 (70C), due to the slightly lower voltage of the ADR1000 applied to the divider.
Features & Benefits
- Includes full application circuit, both of the Reference loop and the Heater loop

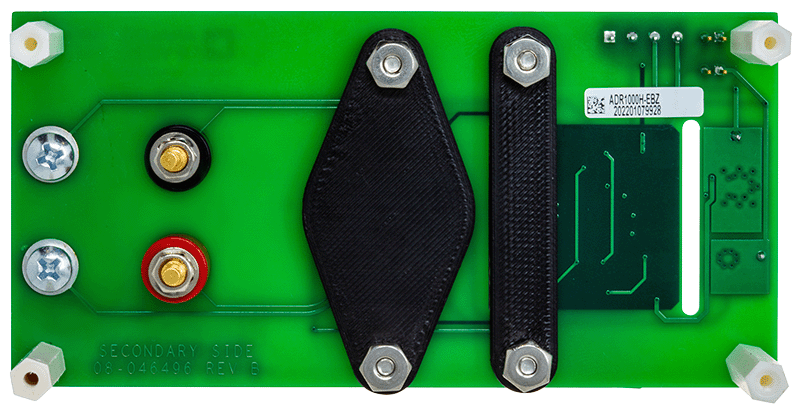

- Includes top and bottom covers for the ADR1000
- Includes top and bottom covers for the VPG Foil resistors
- Panel mounted banana plugs have standard 0.75" centers
- Standard 0.75" banana centers mate directly to HP3458 or to standard dual cables
- Includes Copper Telurride female banana jacks for low thermals
- RoHS compliant
