ADP1607

2 MHz, Synchronous Boost DC-to-DC Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.D)
Documentation View All Documentation
LTspice ADP1607 - Step-Up (Boost) Regulators Download 1.25 KB
Part Models 2
1ku List Price Starting From $1.34
Features
  • Up to 96% efficiency
  • 0.8 V to VOUT input voltage range
  • Low 0.9 V input start-up voltage
  • 1.8 V to 3.3 V output voltage range
  • 23 μA quiescent current
  • Fixed PWM and light load PFM mode options
  • Synchronous rectification
  • True shutdown output Isolation
  • Internal soft start, compensation, and current limit

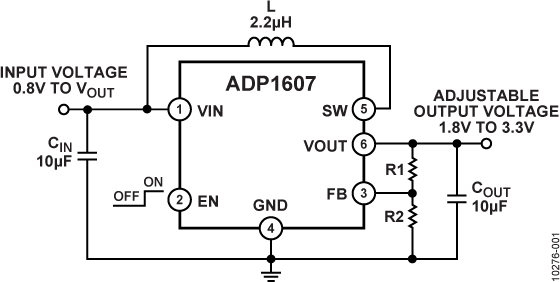

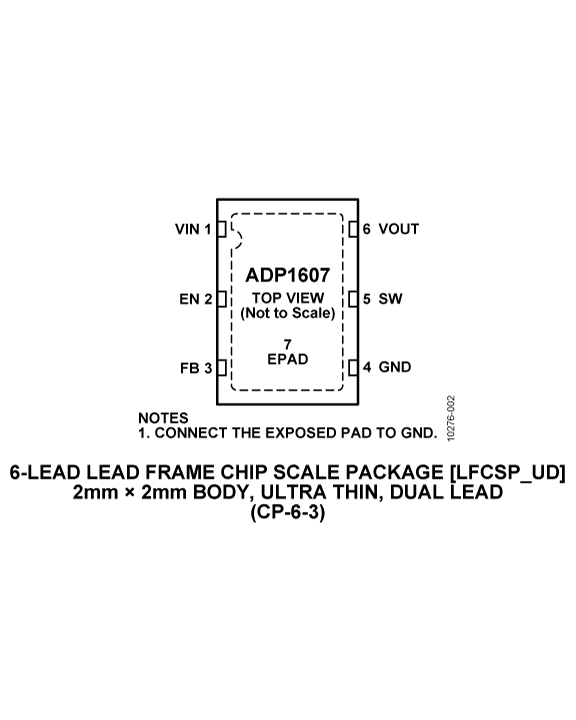

  • 2 mm × 2 mm, 6-lead LFCSP
  • Compact solution size
Additional Details
show more Icon

The ADP1607 is a high efficiency, synchronous, fixed frequency, step-up dc-to-dc switching converter with an adjustable output voltage between 1.8 V and 3.3 V for use in portable applications.

The 2 MHz operating frequency enables the use of small footprint, low profile external components. Additionally, the synchronous rectification, internal compensation, internal fixed current limit, and current mode architecture allow for excellent transient response and a minimal external part count.

Other key features include fixed PWM and light load PFM mode options, true output isolation, thermal shutdown (TSD), and logic controlled enable. Available in a lead-free, thin, 6-lead LFCSP package, the ADP1607 is ideal for providing efficient power conversion in portable devices.

APPLICATIONS

  • 1-cell and 2-cell alkaline and NiMH/NiCd powered devices
  • Portable audio players, instruments, and medical devices
  • Solar cell applications
  • Miniature hard disk power supplies
  • Power LED status indicators
Show More Arrow image
file View Data Sheet (Rev.D)
Documentation View All Documentation
LTspice ADP1607 - Step-Up (Boost) Regulators Download 1.25 KB
Part Models 2
1ku List Price Starting From $1.34
