Features and Benefits
- Configurable 8-PWM engine with up to 3 channels
- 2 independent digitally controlled channel outputs
- Voltage mode PWM control with 625 ps resolution
- Remote voltage sensing on both channels
- Programmable compensation filters
- Voltage feedforward option
- Flexible start-up sequencing and tracking
- See datasheet for additional features
The ADP1053, based on a voltage mode PWM architecture, is a flexible, application dedicated digital controller designed for isolated and non-isolated dc-to-dc power supply applications. The ADP1053 enables highly efficient power supply design and facilitates the introduction of intelligent power management techniques to improve energy efficiency at a system level.
The ADP1053 provides control, monitoring, and protection of up to three independent channel outputs. The eight flexible PWM outputs can be configured as three independent channels: two regulated channels with feedback control plus one additional unregulated channel with a fixed duty cycle. The frequency of these three channels can be programmed individually from 50 kHz to 625 kHz; all channels can be synchronized internally or to an external signal.
All eight PWM outputs can also be assigned to enable a single-channel solution, which may be required in high power, high efficiency applications.
Features include differential voltage sensing, fast current sensing, flexible start-up sequencing and tracking, and synchronization between devices to reduce low frequency system noise. Protection and monitoring features include overcurrent protection (OCP), undervoltage protection (UVP), overvoltage protection (OVP), and overtemperature protection (OTP).
- AC-to-DC power supplies
- Isolated dc-to-dc power supplies
- Intermediate rail power supplies
- Non-isolated dc-to-dc power converter
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

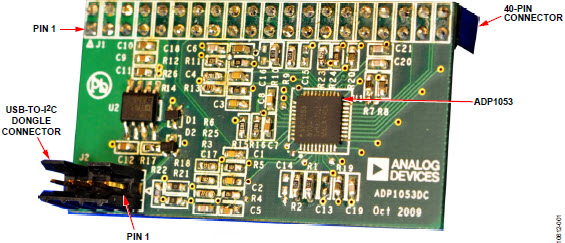

The ADP1053 daughter card evaluation board allows the user to quickly evaluate the ADP1053. The ADP1053 daughter card plugs into an existing ADP1053 evaluation motherboard. Communication to the daughter card is established by connecting the USB-to-I2C dongle interface between the daughter card and a PC running Windows® 2000, Windows NT, Windows XP, Windows Vista®, or Windows 7.
The USB-to-I2C dongle interface (Part No. ADP-I2C-USB-Z) must be purchased separately from Analog Devices, Inc. The graphical user interface (GUI) software for the ADP1053 daughter card evaluation board can be downloaded from the ADP1053 product page.
The user guide UG-388 describes how to set up and use the ADP1053 daughter card evaluation board. The user guide should be read in conjunction with the ADP1053 data sheet, which provides detailed information about the ADP1053 3-channel digital power supply controller.
Documentation & Resources
Software & Systems Requirements
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|ADP1053ACPZ-R7||Material Declaration||Reliability Data||40-Lead LFCSP (6mm x 6mm w/ EP)|
|ADP1053ACPZ-RL||Material Declaration||Reliability Data||40-Lead LFCSP (6mm x 6mm w/ EP)|
|Wafer Fabrication Data|
