ADN4664

Dual, 3 V, CMOS, LVDS Differential Line Receiver

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $0.88
Features
  • ±15 kV ESD protection on output pins
  • 400 Mbps (200 MHz) switching rates
  • Flow-through pinout simplifies PCB layout
  • 100 ps channel-to-channel skew (typical)
  • 2.5 ns maximum propagation delay
  • 3.3 V power supply
  • High impedance outputs on power-down
  • Low power design: typically 3 mW (quiescent)
  • Interoperable with existing 5 V LVDS drivers
  • Accepts small swing (310 mV typical) differential signal levels
  • Supports open, short, and terminated input fail-safe
  • 0 V to −100 mV threshold region
Additional Details
show more Icon

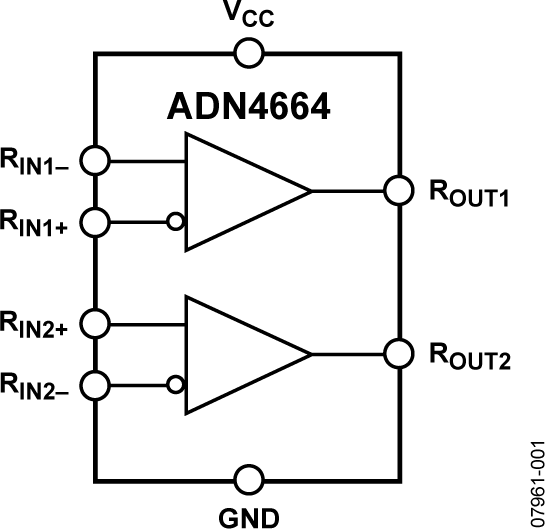

The ADN4664 is a dual, CMOS, low voltage differential signaling (LVDS) line receiver offering data rates of over 400 Mbps (200 MHz) and ultralow power consumption. It features a flow-through pinout for easy PCB layout and separation of input and output signals. The device accepts low voltage (310 mV typical) differential input signals and converts them to a single-ended 3 V TTL/CMOS logic level.

The ADN4664 and its companion driver, the ADN4663, offer a new solution to high speed, point-to-point data transmission, and a low power alternative to emitter-coupled logic (ECL) or positive emitter-coupled logic (PECL).
Applications

  • Point-to-point data transmission
  • Multidrop buses
  • Clock distribution networks
  • Backplane receivers
