ADM3485

3.3 V, Low Power, RS-485/RS-422 Transceiver (Half Duplex, 10 Mbps, Driver/Receiver Enable)

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.E)
Documentation View All Documentation
IBIS Model ADM3485 IBIS Model Download
Part Models 2
1ku List Price Starting From $1.01
Features
  • Operate with 3.3 V supply
  • Interoperable with 5 V logic
  • EIA RS-485/RS-422 Compliant over Full Common-Range
  • Data Rate Options: 10 Mbps
  • Half and Full Duplex Options
  • 2nA Supply Current in Shutdown Mode
  • Up to 32 Transceivers on a Bus
  • −7V to +12V Bus Common Mode Range
  • Specified over −40°C to +85°C Temperature Range
  • 8 ns skew

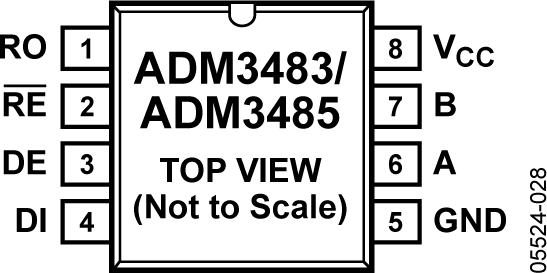

  • Available in 8-Lead SOIC
Additional Details
show more Icon

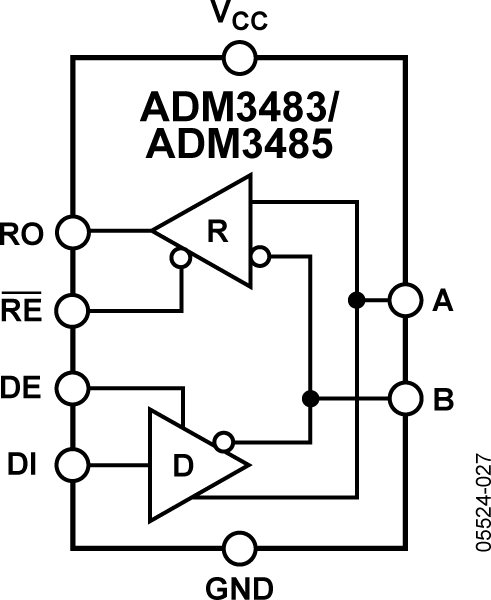

The ADM3483 / ADM3485 / ADM3488 / ADM3490 / ADM3491 are low power, differential line transceivers designed to operate using a single 3.3 V power supply. Low power consumption, coupled with a shutdown mode, makes the ADM3483 / ADM3485 / ADM3488 / ADM3490 / ADM3491 ideal for power-sensitive applications.

The ADM3488 / ADM3490 / ADM3491 feature full-duplex communication, while the ADM3483 / ADM3485 are designed for half-duplex communication.

The ADM3485 / ADM3490 / ADM3491 transmit at up to 10 Mbps. The receiver input impedance is 12 kΩ, allowing up to 32 transceivers to be connected on the bus. A thermal shutdown circuit prevents excessive power dissipation caused by bus contention or by output shorting. If a significant temperature increase is detected in the internal driver circuitry during fault conditions, then the thermal shutdown circuit forces the driver output into a high impedance state. If the inputs are unconnected (floating), the receiver contains a fail-safe feature that results in a logic high output state. The parts are fully specified over the commercial and industrial temperature ranges. The ADM3483 / ADM3485 / ADM3488 / ADM3490 are available in 8-lead SOIC_N; the ADM3491 is available in a 14-lead SOIC_N.

APPLICATIONS

  • Low-Power RS-485 Applications
  • Telecom
  • Industrial Process Control
  • HVAC
