ADL8150

GaAs, HBT, MMIC, Low Phase Noise Amplifier, 6 GHz to 14 GHz

Data Sheet

Rev. 0

Recommended for New Designs

Top

Overview

Features and Benefits
Product Details

Features and Benefits

OP1dB: 18 dBm (typical at 7 GHz to 12 GHz)
P_SAT: 22 dBm (typical at 7 GHz to 12 GHz)
Gain: 12 dB (typical at 7 GHz to 12 GHz)
OIP3: 30 dBm typical

Phase noise: −172 dBc/Hz at 10 kHz offset
Supply voltage: 5 V at 74 mA
6-lead, 2 mm × 2 mm LFCSP

Product Details

The ADL8150 is a self biased gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), heterojunction bipolar transistor (HBT), low phase noise amplifier that operates from 6 GHz to 14 GHz. The amplifier provides 12 dB of typical signal gain, 18 dBm output power at 1 dB gain compression (OP1dB), and a typical output third-order intercept (OIP3) of 30 dBm. The amplifier requires 74 mA from a 5 V collector supply voltage.

The ADL8150 also features inputs and outputs (I/Os) that are internally matched to 50 Ω, and facilitates integration into multichip modules (MCMs). Note that throughout the data sheet, multifunction pins, such as RF_OUT/V_CC, are referred to either by the entire pin name or by a single function of the pin, for example, RF_OUT, when only that function is relevant.

Applications

Military and space
Test instrumentation
Communications

Product Categories

RF and Microwave
- Low Phase Noise Amplifiers

Amplifiers
- Driver Amplifiers

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (1)

EVAL-ADL8150

Evaluating the ADL8150 GaAS, HBT, MMIC, Low Phase Noise Amplifier, 6 GHz to 14 GHz

EVAL-ADL8150

View Detailed Evaluation Kit Information

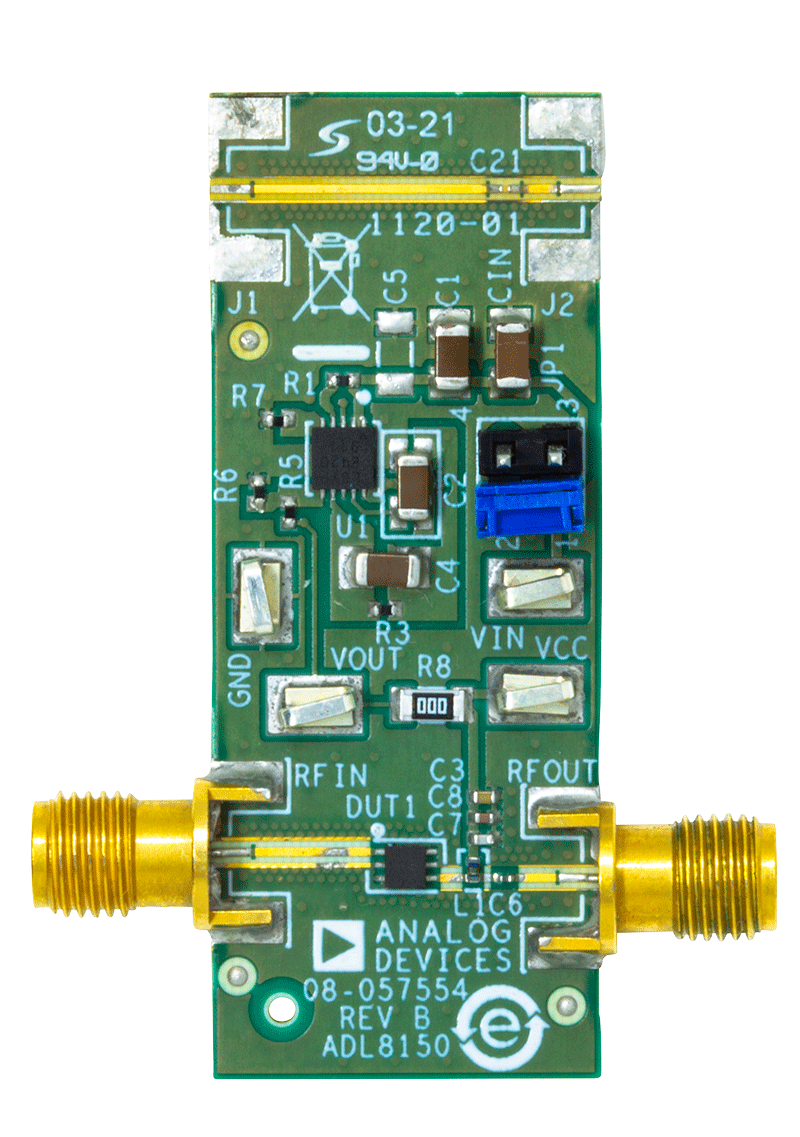

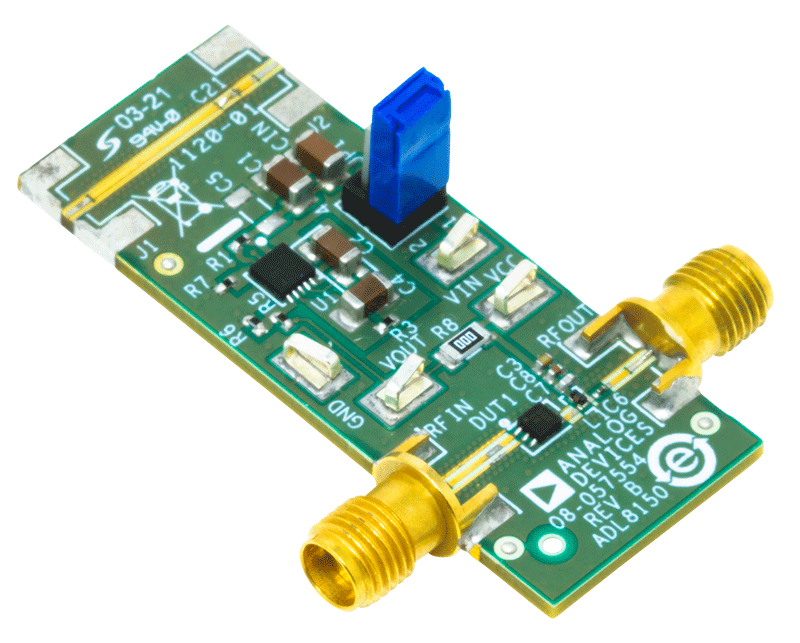

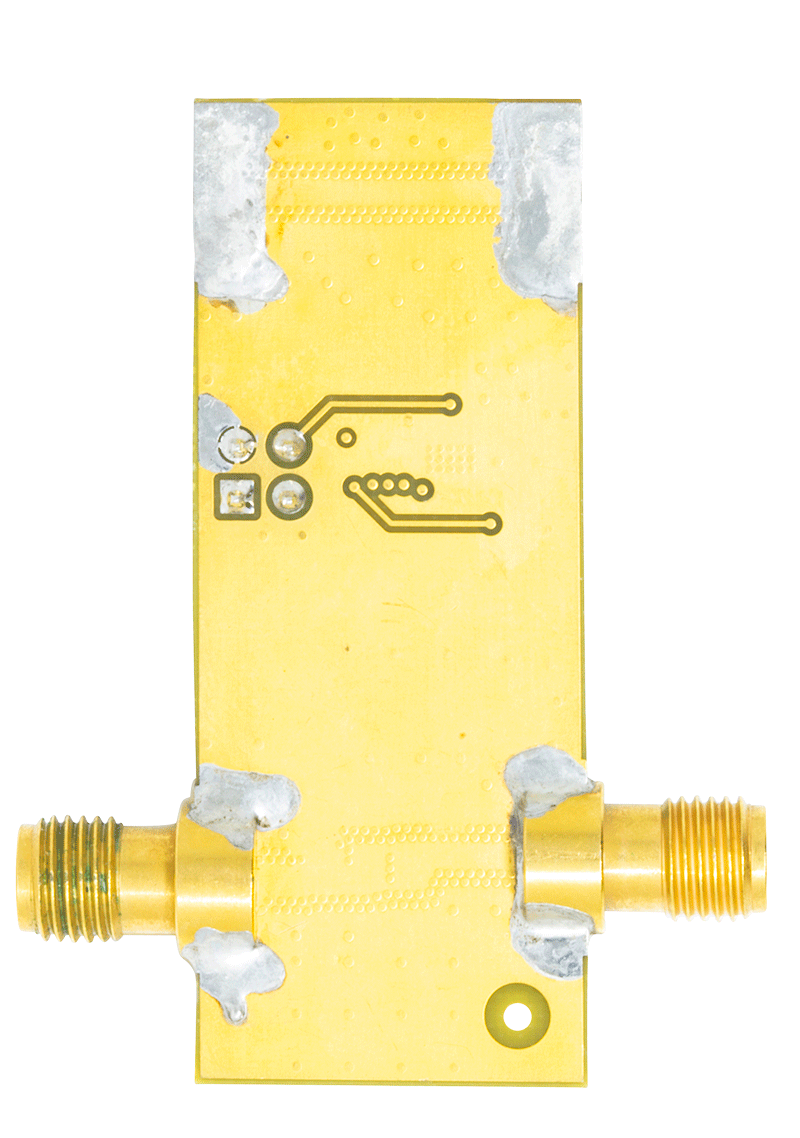

The ADL8150-EVALZ consists of a 4-layer printed circuit board (PCB) fabricated from 10 mil thick, Rogers 4350B and Isola 370HR, copper clad, forming a nominal thickness of 62 mils. The RF_IN and RF_OUT ports on the ADL8150-EVALZ are populated with 2.9 mm, female coaxial connectors, and the corresponding RF_IN and RF_OUT traces have a 50 Ω characteristic impedance. The ADL8150-EVALZ is populated with components suitable for use over the entire −40°C to +85°C operating temperature range of the ADL8150. To calibrate board trace losses, a through calibration path is provided between the J1 and J2 connectors. J1 and J2 must be populated with RF connectors to use the through calibration path. Refer to Table 2 and Figure 3 for the through calibration path performance.

Incorporated on the ADL8150-EVALZ is an ultralow noise, ultrahigh power supply rejection ratio (PSRR), linear regulator. This low noise regulator provides a clean power source to bias the ADL8150.

The RF_IN and RF_OUT traces on the ADL8150-EVALZ are 50 Ω, grounded, coplanar waveguide. The package ground leads and the exposed pad connect directly to the ground plane. Multiple vias connect the top and bottom ground planes with particular focus on the area directly beneath the ground pad to provide adequate electrical conduction and thermal conduction.

The power supply decoupling capacitors on the ADL8150-EVALZ represent the configuration used to characterize and qualify the device. For full details on the ADL8150, see the ADL8150 data sheet, which must be consulted in conjunction with the user guide when using the ADL8150-EVALZ.
