Features
- Fixed gain of 20 dB
- Operation up to 6 GHz
- Input/output internally matched to 50 Ω

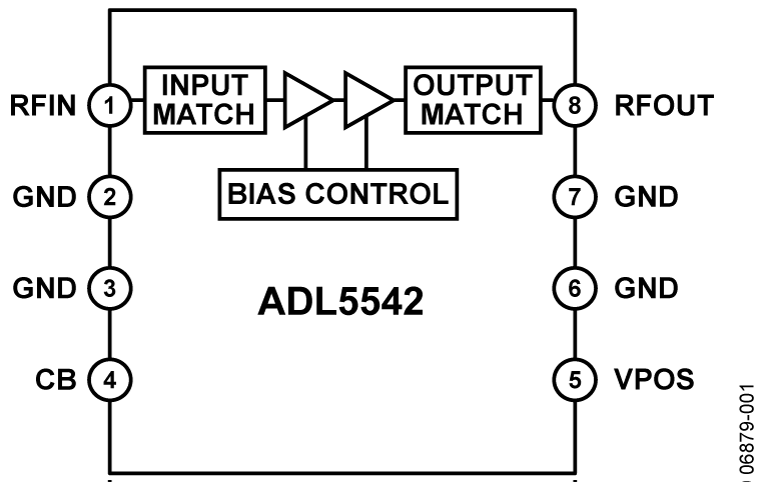

- Integrated bias control circuit
- Output IP3
46 dBm at 500 MHz
40 dBm at 900 MHz - Output 1 dB compression: 20.6 dB at 900 MHz
- Noise figure of 3 dB at 900 MHz
- Single 5 V power supply
- Small footprint 8-lead LFCSP
- Pin compatible with 15 dB gain ADL5541
- 1 kV ESD (Class 1C)
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADL5542 is a broadband 20 dB linear amplifier that operates at frequencies up to 6 GHz. The device can be used in a wide variety of CATV, cellular, and instrumentation equipment.
The ADL5542 provides a gain of 20 dB that is stable over frequency, temperature, power supply, and from device to device. The device is internally matched to 50 Ω with an input return loss of 10 dB or better, up to 6 GHz. Only input/output ac coupling capacitors, power supply decoupling capacitors, and an external inductor are required for operation.
The ADL5542 is fabricated on an InGaP HBT process and has an ESD rating of 1 kV (Class 1C). The device is packaged in a 3 mm × 3 mm LFCSP that uses an exposed paddle for excellent thermal impedance.
The ADL5542 consumes 93 mA on a single 5 V supply and is fully specified for operation from −40°C to +85°C.
A fully populated RoHS-compliant evaluation board is available.
The ADL5541 is a companion part that offers a gain of 15 dB in a pin-compatible package.
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADL5542
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Evaluation Design File
-
Application Note
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
2
Evaluation Design File
2
zip
247 kB
zip
247 kB
Application Note
7
HTML
HTML
HTML
HTML
HTML
HTML
Documentation
Data Sheet 1
Application Note 3
Evaluation Design File 1
Product Selection Guide 1
Analog Dialogue 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADL5542ACPZ-R7 |

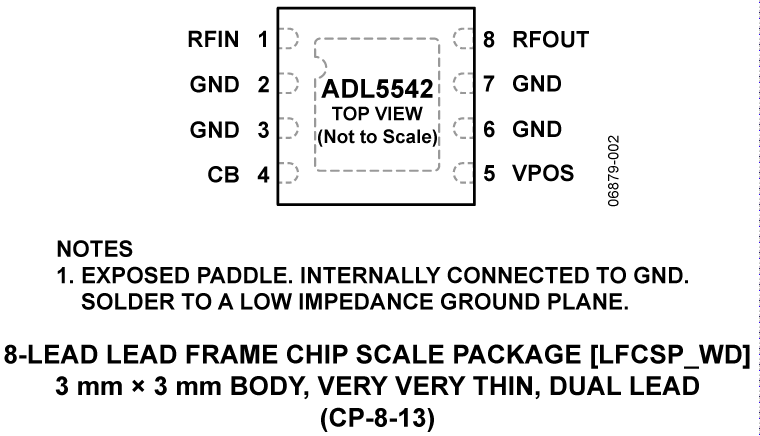

8-Lead LFCSP (3mm x 3mm w/ EP)
|
|
- ADL5542ACPZ-R7
- Pin/Package Drawing
-
8-Lead LFCSP (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 6, 2015
- 14_0276
ADL5541 and ADL5542 Data Sheet Changes
ADL5542ACPZ-R7
PRODUCTION
Feb 13, 2014
- 14_0038
Conversion of 3x3mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 6, 2015
- 14_0276
ADL5541 and ADL5542 Data Sheet Changes
Feb 13, 2014
- 14_0038
Conversion of 3x3mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
Software & Part Ecosystem
Evaluation Kits 1
EVAL-ADL5542
ADL5542 Evaluation Board
Product Detail
ADL5542-EVALZ is a fully populated, 4-layer, FR4-based evaluation board. For normal operation it requires a single 5 V/100 mA power supply. The 5 V power supply should be connected to the test loops labeled VCC and GND. Alternatively, the power supply connections may be made via the two pin header, W-1. The RF input is applied to the SMA connector labeled RFIN. The RF output is available at the SMA connector labeled RFOUT.
Resources
Evaluation Kits1
Tools & Simulations 4
S-Parameter 1
S-Parameter
ADIsimPLL™
ADIsimRF
