ADL5501S

RECOMMENDED FOR NEW DESIGNS

ADL5501S

Aerospace 50 MHz TO 6 GHz TruPwr™ Detector

RECOMMENDED FOR NEW DESIGNS

Not the part you were looking for?

Go to Product Selection Table

Features

True rms response
Excellent temperature stability
Up to 30 dB input dynamic range
50 Ω input impedance

1.25 V rms, 15 dBm, maximum input
Single-supply operation: 2.7 V to 5.5 V
Low power: 3.3 mW at 3 V supply

Additional Details

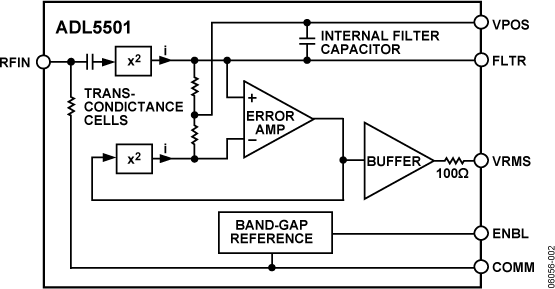

The ADL5501S is a mean-responding power detector for use in high frequency receiver and transmitter signal chains from 50 MHz to 6 GHz. It is easy to apply, requiring only a single supply between 2.7 V and 5.5 V and a power supply decoupling capacitor. The input is internally ac-coupled and has a nominal input impedance of 50 Ω. The output is a linear-responding dc voltage with a conversion gain

The ADL5501S is intended for true power measurement of simple and complex waveforms. The device is particularly useful for measuring high crest factor (high peak-to-rms ratio) signals, such as CDMA-, CDMA2000-, W-CDMA-, and QPSK-/QAM-based OFDM waveforms. The on-chip modulation filter provides adequate averaging for most waveforms.

The on-chip, 100 Ω series resistance at the output, combined with an external shunt capacitor, creates a low-pass filter response that reduces the residual ripple in the dc output voltage. For more complex waveforms, an external capacitor at the FLTR pin can be used for supplementary signal demodulation.

The ADL5501S offers excellent temperature stability across a 30 dB range and near 0 dB measurement error across temperature over the top portion of the dynamic range. In addition to its temperature stability, the ADL5501S offers low process variations that further reduce calibration complexity.

Technical Documents 1

ADL5501S Military Data Sheet 03/07/2013

Reference Materials 3

ADL5501S Single Event Effects Radiation Report 07/31/2015

ADL5501S: High Dose Rate Generic Report 03/08/2013

ADL5501S: Low Dose Rate Generic Report 12/17/2013

Design Resources 3

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

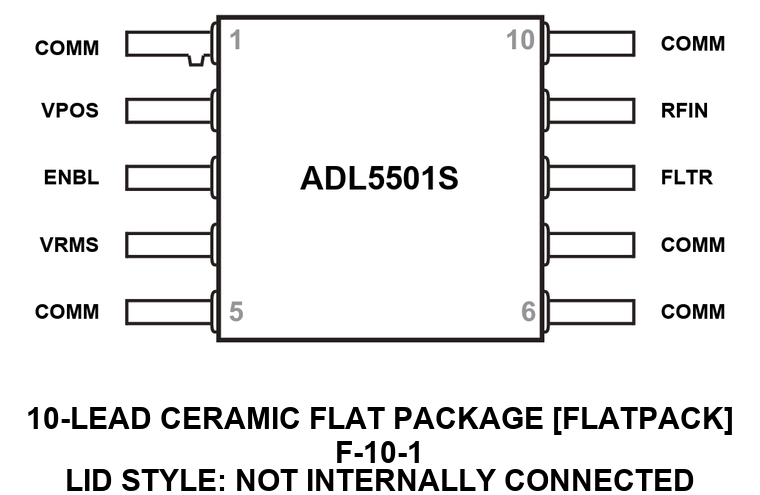

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
5962L1123902VHA	10-Lead FlatPack	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
5962R1123901VHA	10-Lead FlatPack	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADL5501AL-EMX	10-Lead FlatPack	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

5962L1123902VHA
Pin/Package Drawing
10-Lead FlatPack
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

5962R1123901VHA
Pin/Package Drawing
10-Lead FlatPack
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADL5501AL-EMX
Pin/Package Drawing
10-Lead FlatPack
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys
