ADH913S

RECOMMENDED FOR NEW DESIGNS

0.6 GHz to 20 GHz, SDLVA

Product Selection Table
Viewing:

Overview

  • High Logging Range: 59 dB (-54 dBm to +5 dBm) @ 18 GHz
  • Output Frequency Flatness: ± 1.5 dB
  • Log Linearity: ± 1 dB
  • Fast Rise/Fall Times: 5/10 ns
  • Single Positive Supply: +3.3 V.
  • 12-Lead Hermetic SMT Package
  • Screened in accordance with MIL-PRF-38535, Class Level S

The ADH913S is a Successive Detection Log Video Amplifier (SDLVA) which operates from 0.6 GHz to 20 GHz. The ADH913S provides a logging range of 59 dB @ 18 GHz. This device offers typical fast rise/fall times of 5/10 ns and a superior delay time of only 14 ns. The ADH913S log video output slope is typically 14 mV/dB. Maximum recovery times are less than 30 ns. Ideal for high-speed channelized receiver applications, the ADH913S operates from a single +3.3 V supply, and consumes only 80 mA.

Applications

  • IFM Receiver
  • Instrumentation
  • Sensors
  • Military & Space
ADH913S
0.6 GHz to 20 GHz, SDLVA

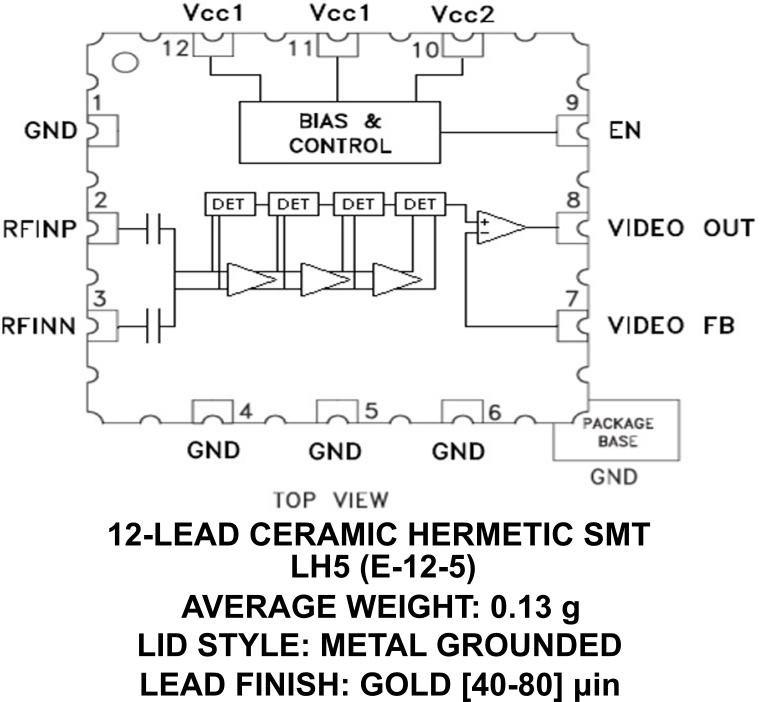

HMC8252LH5 SID
