ADH849S

PRODUCTION

Aerospace, GaAs, pHEMT, MMIC, High Isolation SPDT Non-Reflective Switch, DC to 6 GHz (Die and LH5)

Product Selection Table
Viewing:

Overview

ADH849S (Die)
  • Frequency of Operation: DC to 6 GHz
  • High Isolation: up to 60 dB
  • High Input IP3: +52 dBm Typ.
  • Insertion Loss:
    • 1.1 dB Typ. @ 4 GHz
    • 1.5 dB Typ. @ 6 GHz
  • Non-Reflective Design
  • “All Off” State
  • Screened in accordance with MIL-PRF-38534, Class K
    • ADH849S (LH5 Package)
  • Frequency of Operation: DC to 6 GHz
  • High Isolation: up to 60 dB
  • High Input IP3: +52 dBm Typ.
  • Insertion Loss:
    • 0.75 dB @ 1.3 GHz Typ.
    • 1.1 dB @ 4 GHz Typ.
  • Non-Reflective Design
  • “All Off” State.
  • 12-Lead Hermetic SMT Package
  • Screened in accordance with MIL-PRF-38535, Class Level S

    • ADH849S (Die and LH5)

    TheADH849S is a GaAs pHEMT high isolation non-reflective SPDT switch available in both Die and 12-Lead hermetic SMT package. The switch provided up to 60 dB isolation, low 1.1 dB insertion loss @ 4 GHz and +52 dBm input IP3. Power handling is excellent up through the 5 GHz - 6 GHz frequency band with the switch offering an Input P1dB compression point of +31 dBm. On-chip circuitry allows a single positive voltage control of 0/+3V or 0/+5V at very low DC currents. An enable input (EN) set to logic high will put the switch in an "all off" state.

    Applications

    • Communications
    • Instrumentation
    • Military & Space
    ADH849S
    Aerospace, GaAs, pHEMT, MMIC, High Isolation SPDT Non-Reflective Switch, DC to 6 GHz (Die and LH5)

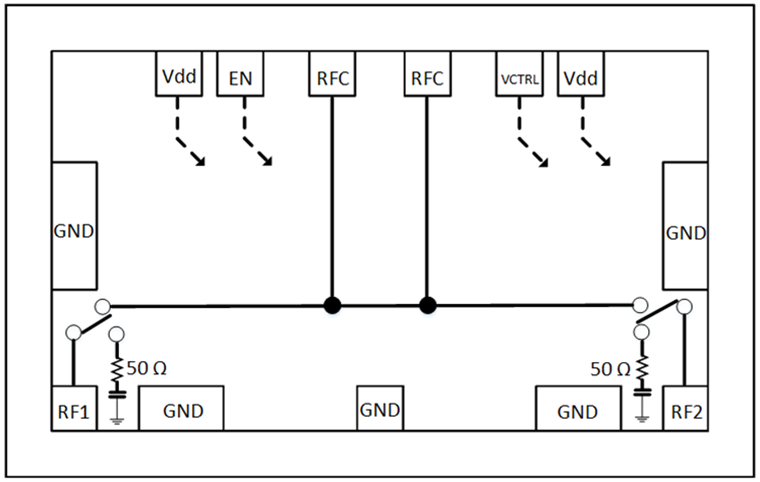

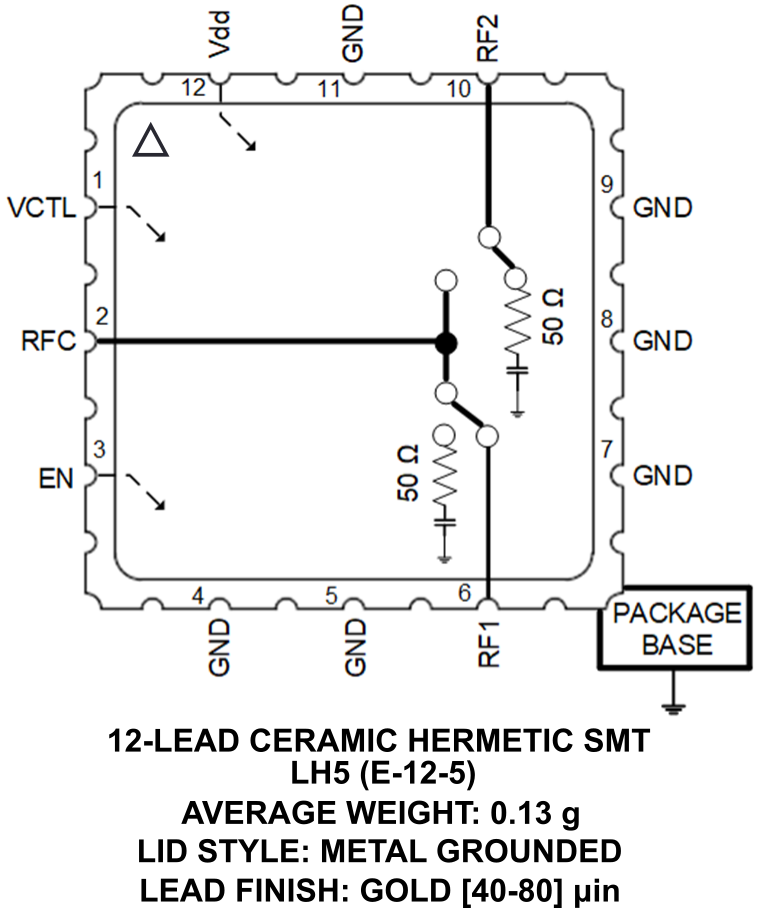

    HMC8367 SID HMC7916LH5 SID
