ADH787S

PRODUCTION

Aerospace, GaAs, MMIC, Fundamental Mixer, 3 GHz to 10 GHz.

Part Models: 1
1ku List Price: Starting From $428.00

Viewing:

Overview

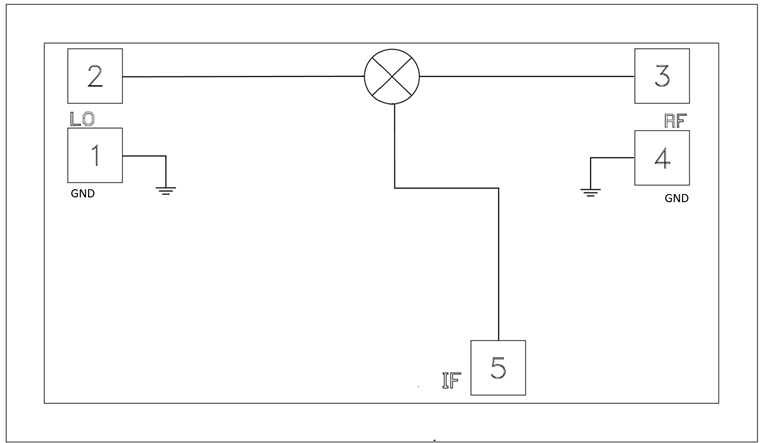

Passive Double-Balanced Topology
High LO/RF Isolation: 55 dB Typ.
Low Conversion Loss: 9 dB Typ.

Wide IF Bandwidth: DC – 4 GHz
No External Matching Required
Small Size: 1.37 mm x 0.8 mm x 0.1 mm
Screened in accordance with MIL-PRF-38534, Class K

The ADH787 is a general purpose double balanced mixer in that can be used as an upconverter or downconverter between 3 GHz and 10 GHz. This mixer is fabricated in a GaAs MESFET process and requires no external components or matching circuitry. The ADH787S provides excellent LO to RF and LO to IF isolation due to optimized balun structures and operates with LO drive level of +17 dBm.

Applications

Microwave Radio
Test Equipment
Sensors
Military & Space

Part Models: 1
1ku List Price: Starting From $428.00

Documentation

Controlled Drawings 1

HMC8451: 3 GHz to 10 GHz Fundamental Mixer SID (Rev.B) 02/14/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC8451	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
