ADH739S

RECOMMENDED FOR NEW DESIGNS

Aerospace, MMIC, VCO with Divide-By-16, 25.5 GHz – 27 GHz

Part Models: 1
1ku List Price: Starting From $2920.00

Viewing:

Overview

Dual Output:
- Fo = 25.5 GHz – 27 GHz
- Fo/16 = 1.59 GHz – 1.69 GHz
Pout: + 8 dBm Typ
Phase Noise: -93 dBc/Hz @ 100 kHz Typ

No External Resonator Needed
16-Lead Hermetic SMT Package
Screened in accordance with MIL-PRF-38535, Class Level S

The ADH739S is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The ADH739S integrates a resonator, negative resistance device, varactor diode and divide-by-16 prescaler. The VCOs phase noise performance is excellent over temperature, shock, and process due to the oscillator's monolithic structure. Power output is +8 dBm typical from a 5V supply voltage. The voltage-controlled oscillator is packaged in a 16-Lead hermetic SMT package.

Applications

Point-to-Point Radios
Instrumentation
Satellite Communications
Military & Space

Part Models: 1
1ku List Price: Starting From $2920.00

Documentation

Controlled Drawings 1

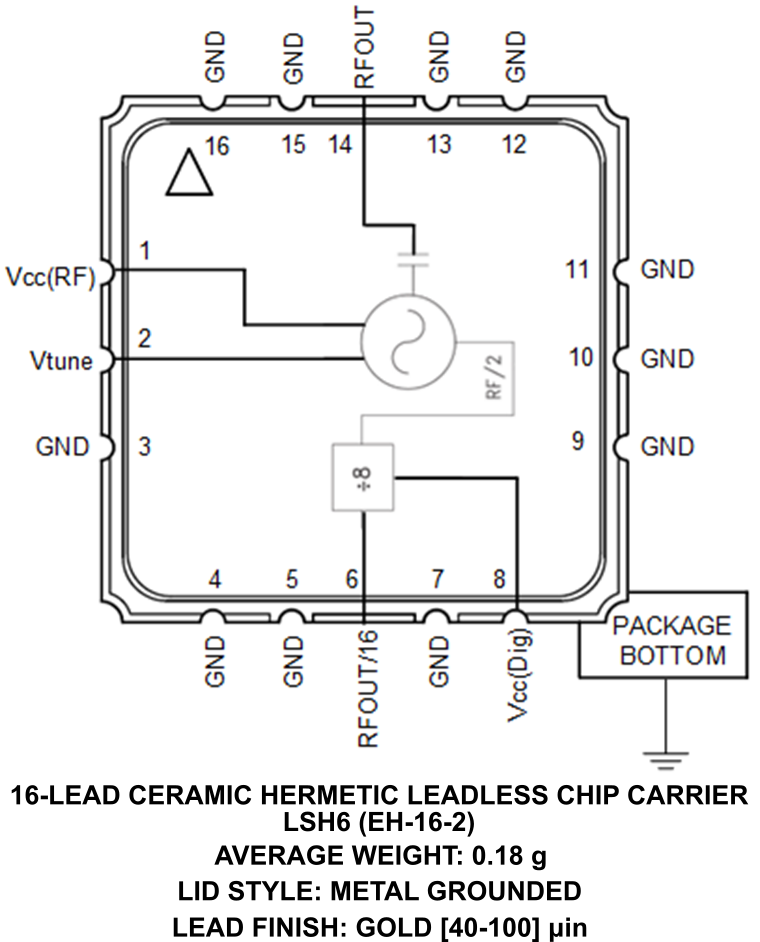

HMC8442LSH6: 25.5 GHz to 27 GHz, VCO with Divide-By-16 Frequency Output SID (Rev.B) 09/30/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC8442LSH6	16-Lead LCC (6mm x 6mm x 1.52mm w/EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
