ADH607S

PRODUCTION

Aerospace, GaAs, MESFET, High Isolation SPDT Switch, DC to 6 GHz

Product Selection Table

Part Models: 1
1ku List Price: Starting From $2975.00

Viewing:

Overview

High Isolation:

55 dB @ 2 GHz
42 dB @ 6 GHz

Low Insertion Loss: 1.9 dB Typ. @ 6 GHz

Non-Reflective design

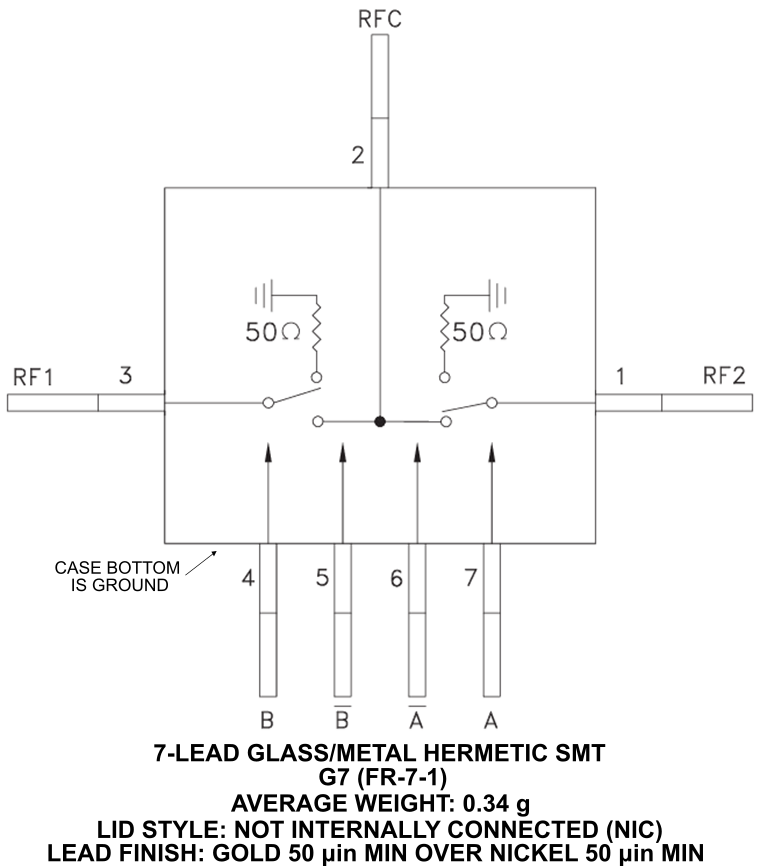

7-Lead Hermetic SMT Package
Screened in accordance with MIL-PRF-38535, Class Level S

The ADH607S is a broadband high isolation non-reflective GaAs, MESFET, SPDT, switch in a 7-Lead glass/metal (hermetic) surface mount package. Covering DC to 6 GHz, the switch features > 55 dB isolation up to 2 GHz and > 42 dB isolation up to 6 GHz. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply.

Applications

Instrumentation
Satellite Communications
Military & Space

Part Models: 1
1ku List Price: Starting From $2975.00

Documentation

Controlled Drawings 1

HMC8158G7: DC to 6 GHz, High Isolation Non-Reflective SPDT Switch SID (Rev.B) 02/10/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC8158G7	7-Lead SMT	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
