ADH573S

RECOMMENDED FOR NEW DESIGNS

Aerospace, GaAs, PHEMT, MMIC, x2 Active Multiplier, 8 GHz to 22 GHz Fout

Product Selection Table
Viewing:

Overview

  • High Output Power: +12 dBm
  • Low Input Power Drive: 0 dBm to +6 dBm
  • Fo Isolation: > 20 dBc @ Fout = 16 GHz
  • 100 kHz SSB Phase Noise: -134 dBc/Hz
  • Single Supply: +5 V @ 92 mA Typ.
  • 12-Lead Hermetic Ceramic SMT Package
  • Screened in accordance with MIL-PRF-385345, Class Level S  

The ADH573S is a x2 active broadband frequency multiplier utilizing GaAs PHEMT technology. When driven by a +5 dBm signal, the multiplier provides +12 dBm typical output power from 8 GHz to 22 GHz Fout. The Fo and 3Fo isolations are >20 dBc and >25 dBc respectively at 16 GHz Fout. The ADH573S is ideal for use in LO multiplier chains for Pt to Pt & VSAT Radios yielding reduced parts count vs. traditional approaches. The low additive SSB Phase Noise of -134 dBc/Hz at 100 kHz offset helps maintain good system noise performance.

Applications

  • Clock Generation Applications
    • SONET OC-192 & SDH STM-64
  • Point-to-point & VSAT Radios
  • Satellite communications (SATCOM)
  • Instrumentation
  • Aerospace EW/Radar
  • Military & Space
ADH573S
Aerospace, GaAs, PHEMT, MMIC, x2 Active Multiplier, 8 GHz to 22 GHz Fout

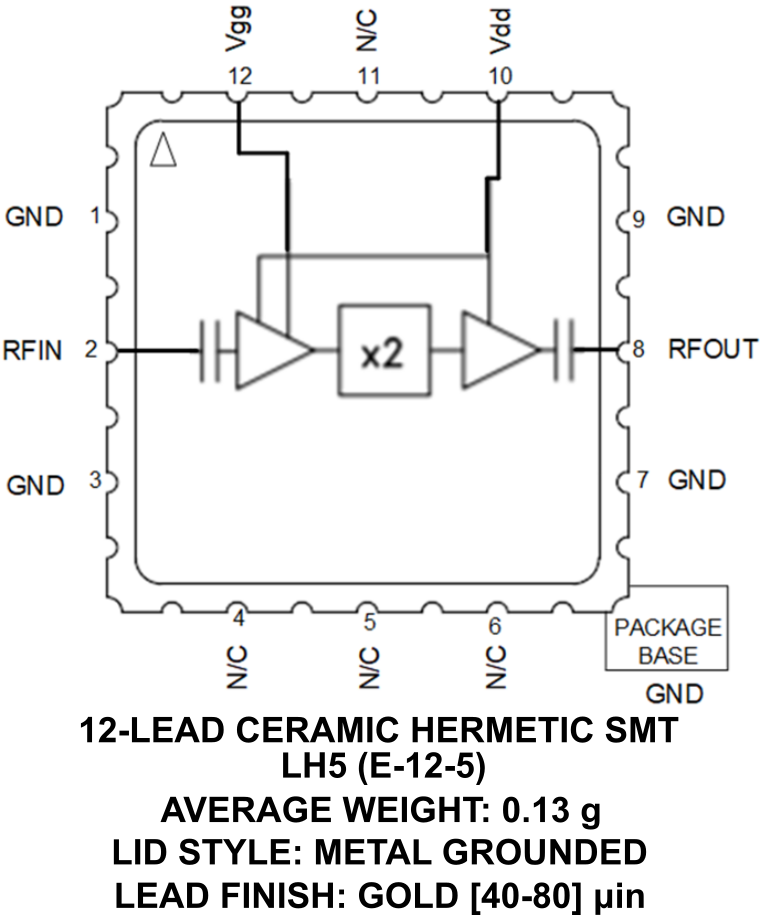

sid000089b adh573s lh5
