ADH530S

RECOMMENDED FOR NEW DESIGNS

Aerospace, GaAs, InGaP, HBT, MMIC, 9 GHz to 11 GHz, VCO with Fo/2 and Fo/4 Frequency Output.

Product Selection Table
Viewing:

Overview

  • Triple Output:
    • Fo = 9 GHz – 11 GHz
    • Fo/2 = 4.5 GHz – 5.5 GHz
    • Fo/4: = 2.25 GHz – 2.75 GHz
  • Pout: + 11 dBm Typ.
  • Phase Noise: -110 dBc/Hz @ 100 kHz Typ.
  • No External Resonator Needed
  • Die Size: 2.9 mm x 1.8 mm x 0.1 mm
  • Screened in accordance with MIL-PRF-38534, Class K

The ADH530S is a GaAs, InGaP, Heterojunction Bipolar Transistor (HBT), MMIC, VCO. The ADH530S integrates resonators, negative resistance devices, varactor diodes and feature half frequency and divide-by-4 outputs. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +11 dBm typical from a +5 V supply voltage. The prescaler and RFout/2 functions can be disabled to conserve current if not required. The voltage-controlled oscillator requires no external matching components.

Applications

  • Satellite Communication (SATCOM)
  • Point-to-Point/Multi-Point Radios
  • Industrial Controls
  • Military & Space
ADH530S
Aerospace, GaAs, InGaP, HBT, MMIC, 9 GHz to 11 GHz, VCO with Fo/2 and Fo/4 Frequency Output.

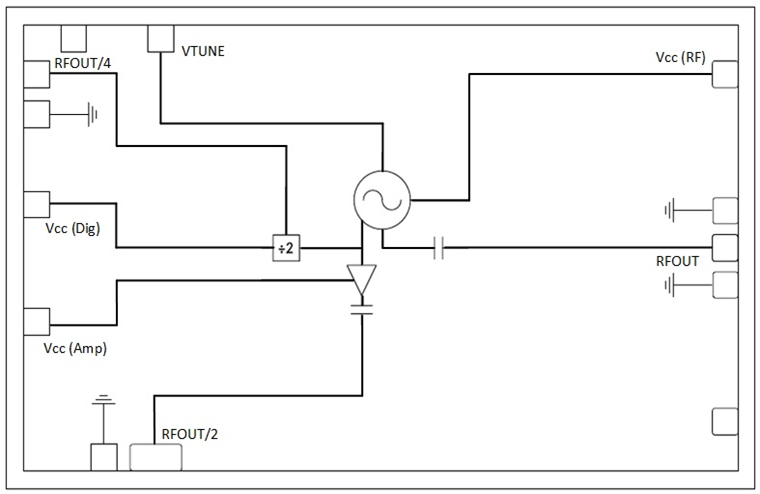

HMC8051 SID
