ADH438S

RECOMMENDED FOR NEW DESIGNS

DC - 7 GHz Divide-By-5

Part Models: 1
1ku List Price: Starting From $2628.00

Viewing:

Overview

SSB Phase Noise: -153 dBc/Hz @100KHz
Wide Bandwidth
Output Power: -1 dBm

Single DC Supply: +5V @ 80 mA
8-Lead Hermetic SMT package
Screened in accordance with MIL-PRF-38535, Class Level S

The ADH438S is a low noise Divide-by-5 Static Dividers utilizing InGaP GaAs HBT technology in an 8-Lead Glass/Metal Hermetic SMT package. This device operates from DC (with a square wave input) to 7 GHz input frequency from a single +5V DC supply. The low additive SSB phase noise of -153 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance.

Applications

Point-to-Point Radios
VSAT
Optical
Military & Space
Avionics

Part Models: 1
1ku List Price: Starting From $2628.00

Documentation

Controlled Drawings 1

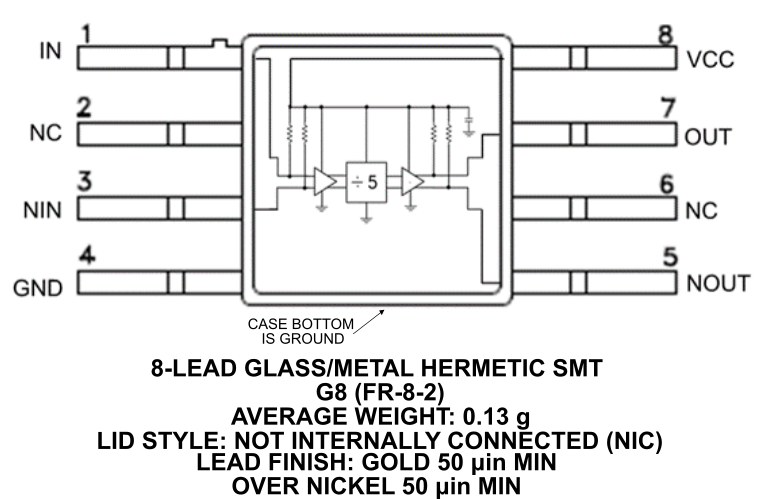

HMC5783G8: DC - 7 GHz Divide-By-5 SID (Rev.B) 09/18/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC5783G8	CERPAK	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
