Features and Benefits
- 0.5 dB LSB Steps to 31.5 dB
- Single Control Line Per Bit
- ±0.5 dB Typical Bit Error
The ADH424S is a broadband 6-bit GaAs IC digital attenuator supplied in die form with Class K element evaluation. Covering DC to 13 GHz, the insertion loss is less then 4 dB typical. The attenuator bit values are 0.5 (LSB), 1, 2, 4, 8, and 16 dB for a total attenuation of 31.5 dB. Attenuation accuracy is excellent at ± 0.5 dB typical step error with an IIP3 of +38 dBm. Six control voltage inputs, toggled between 0 and -5V, are used to select each attenuation state. A single Vee bias of -5V allows operation at frequencies down to DC.
- Military & Space
- Test Equipment & Sensors
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Documentation & Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|ADH424-701G16||Material Declaration||Reliability Data||16-Lead Flat Package with Gullwing Formed Leads|

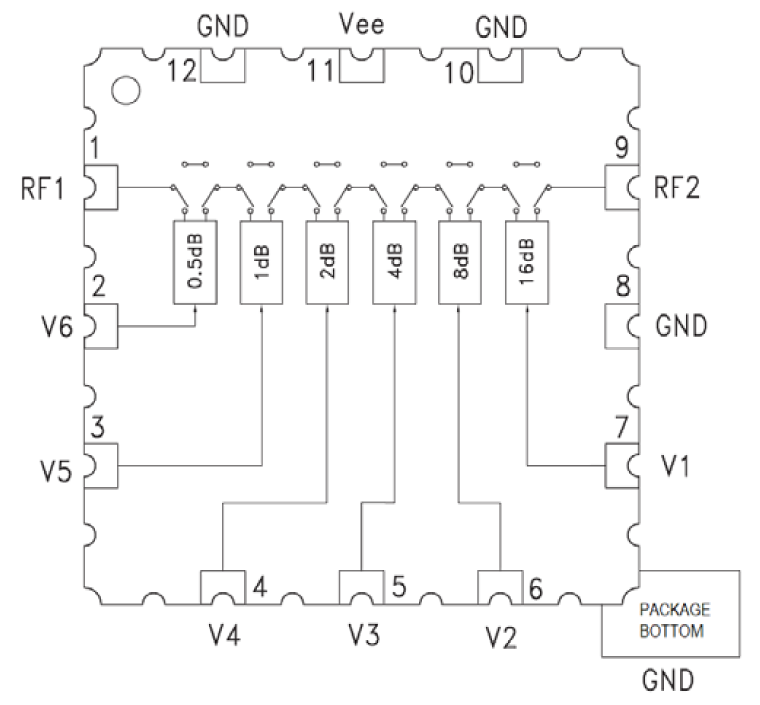

|ADH424-701LH5||Material Declaration||Reliability Data||12-Lead LCC (5.08mmm x 5.08mm)|
|HMC8802||Material Declaration||Reliability Data||CHIPS OR DIE|
|Wafer Fabrication Data|
