ADH395S

RECOMMENDED FOR NEW DESIGNS

Aerospace InGaP HBT Gain Block Amplifier, DC – 4 GHz

Data Sheet (Rev. B) Product Selection Table
Viewing:

Overview

    ADH395S (G8 Package)
  • Frequency of Operation: DC to 4 GHz
  • Gain: 12.5 GHz Typ @ 4 GHz
  • P1dB Output Power: +14.5 dBm Typ (DC to 2 GHz)
  • Stable Gain Over Temperature
  • 8-Lead Hermetic SMT Package
  • Screened in accordance with MIL-PRF-38535, Class Level S
    ADH395S (Die)
  • Frequency of Operation: DC to 4 GHz
  • Gain: 15 dB Typ (DC to 4 GHz)
  • P1dB Output Power: +16 dBm Typ (DC to 1 GHz)
  • Stable Gain Over Temperature
  • 50 Ohm I/O’s
  • Small Die Size: 0.38 mm X 0.58 mm X 0.1 mm
  • Screened in accordance with MIL-PRF-38534, Class K

ADH395S (G8 Package)

The ADH395S is a GaAs InGaP Heterojunction Bi-polar Transistor (HBT) Gain Block MMIC DC - 4 GHz amplifier. This amplifier can be used as either a cascadable 50 Ohm gain stage or to drive the LO of mixers with up to +17 dBm output power. The ADH395S offers 12.5 dB at 4 GHz of gain and an output IP3 of +33.5 dBm (DC to 1 GHz) while requiring only 50mA from a +5V supply.

The Darlington feedback pair used results in reduced sensitivity to normal process variations and yields excellent gain stability over temperature while requiring a minimal number of external bias components.

ADH395S (Die)

The ADH395S is a GaAs InGaP Heterojunction Bi-polar Transistor (HBT) Gain Block MMIC DC - 4 GHz amplifier. This amplifier can be used as either a cascadable 50 Ohm gain stage or to drive the LO of mixers with up to +17 dBm output power. The ADH395S offers 15 dB (DC to 4 GHz) of gain and an output IP3 of +31 dBm (DC to 1 GHz) while requiring only 50mA from a +5V supply.

The Darlington feedback pair used results in reduced sensitivity to normal process variations and yields excellent gain stability over temperature while requiring a minimal number of external bias components. The ADH395S can easily be integrated into Multi-Chip-Modules (MCMs) due to its small size.

Applications

  • Microwave & VSAT Radios
  • Test Equipment
  • Military & Space

ADH395S
Aerospace InGaP HBT Gain Block Amplifier, DC – 4 GHz

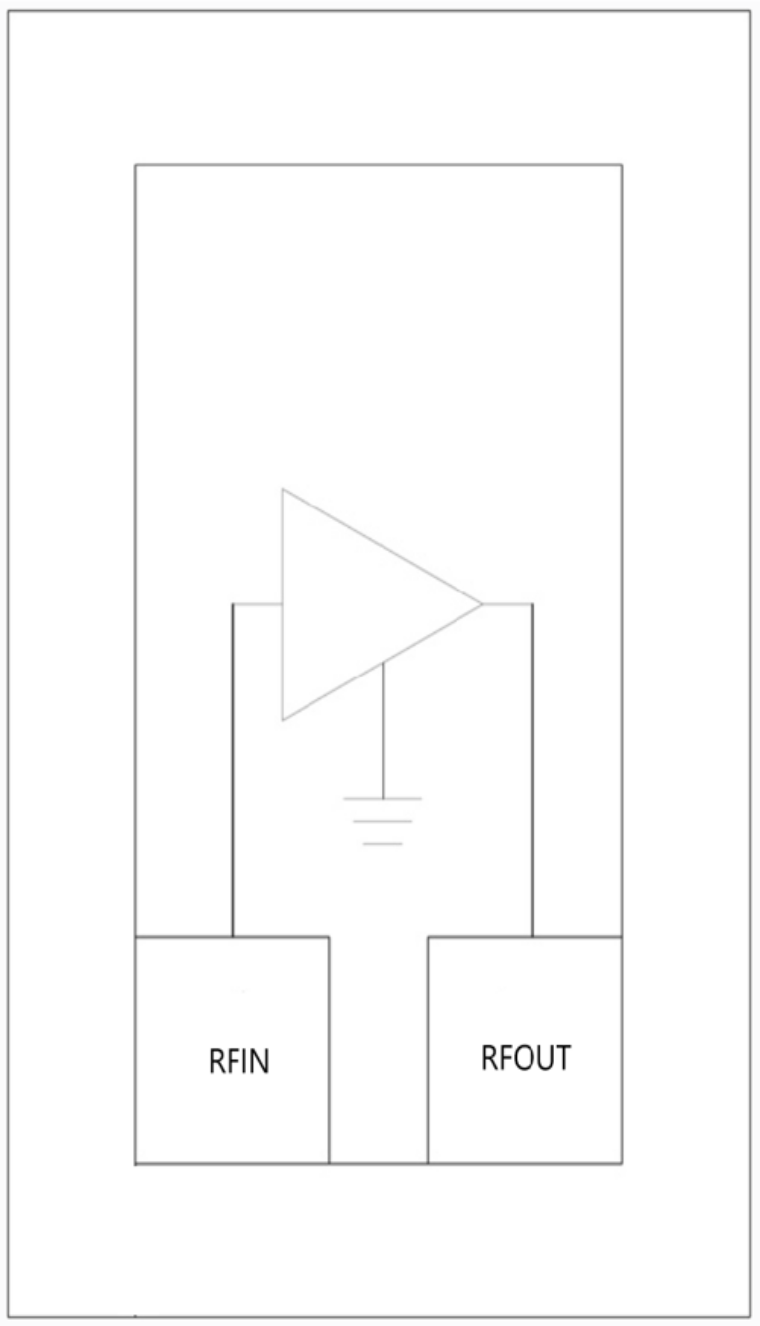

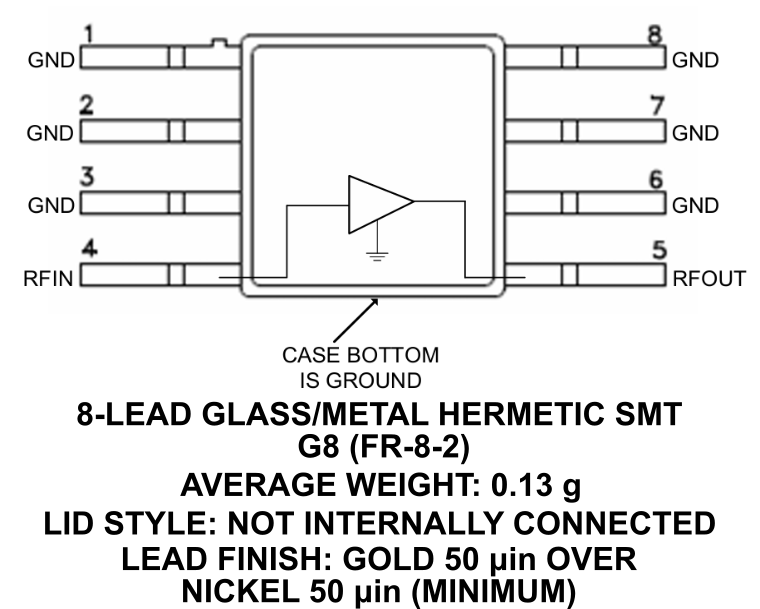

ADH395S Functional Block Diagram HMC8674 SID
