ADH322S

RECOMMENDED FOR NEW DESIGNS

DC to 2010 MHz, SP8T Non-Reflective Switch

Part Models: 1
1ku List Price: Starting From $2344.00

Viewing:

Overview

Frequency of operation: DC to 2010 MHz
High Isolation: > 34 dB @ 2010 MHz
Low Insertion Loss: < 2 dB @ 2010 MHz

Integrated 3:8 TTL Decoder

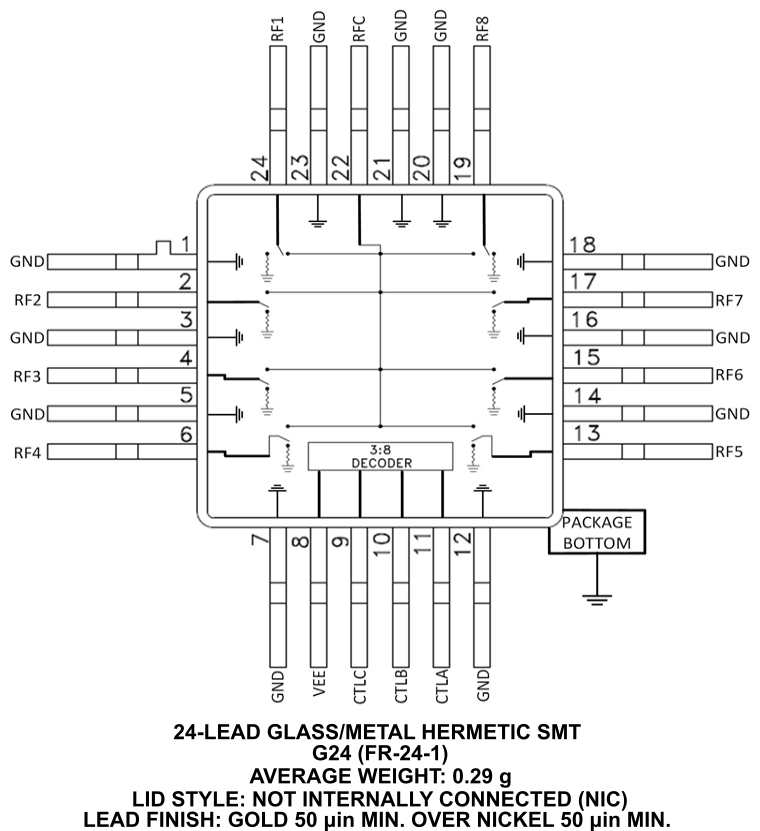

24-Lead Hermetic SMT Package
Screened in accordance with MIL-PRF-38535, Class Level S

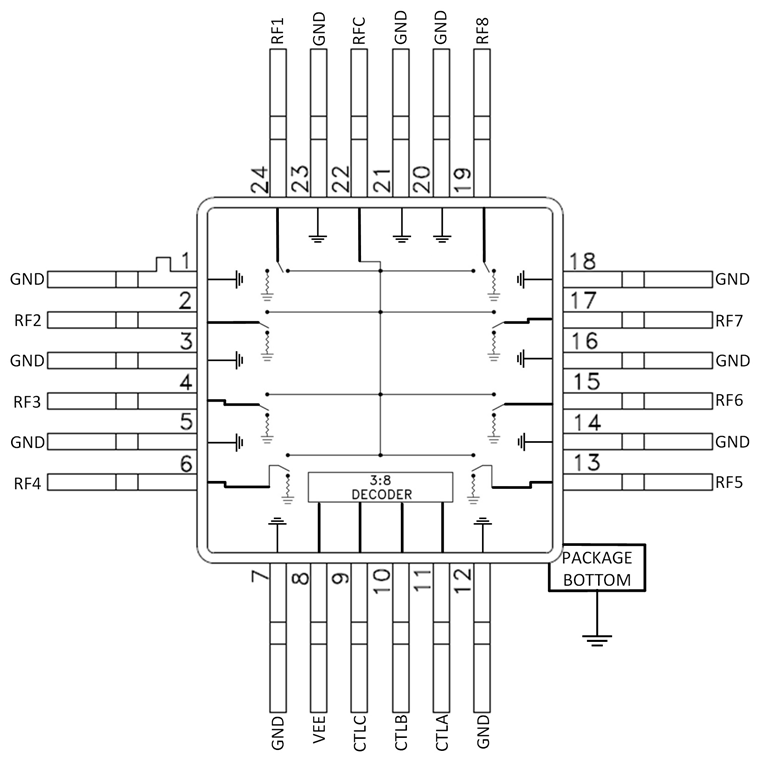

The ADH322S is non-reflective GaAs, MESFET, SP8T switch in a 24-lead glass/metal hermetic SMT package. Covering DC to 2010 MHz, this switch offers high isolation and low insertion loss. This switch also includes an on-board binary decoder circuit, which reduces the required logic control lines to three. The ADH322S operates using a negative control voltage of 0/−5 V and requires a fixed bias of −5 V.

Applications

Instrumentation
Switched filter banks
Military & Space

Part Models: 1
1ku List Price: Starting From $2344.00

Documentation

Controlled Drawings 1

HMC8058G24: DC to 2010 MHz, SP8T Non-Reflective Switch (Rev.A) 12/20/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC8058G24	CERPAK(HERM CER SRF MOUNT)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
