ADH252S

PRODUCTION

Aerospace, GaAs, MMIC, SP6T Non-Reflective Switch, DC to 3 GHz

Part Models: 1
1ku List Price: Starting From $2932.00

Viewing:

Overview

Low Insertion Loss: 1 dB Typ. @ 1.5 GHz
Single Positive Supply: Vdd = +5V
Integrated 3:6 TTL Decoder
16-Lead Hermetic SMT Package
Screened in accordance with MIL-PRF-38535, Class Level S

The ADH252S is a non-reflective SP6T switch in a 16-lead Hermetic SMT package featuring wideband operation from DC to 3 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 3:6 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The ADH252S SP6T replaces multiple configurations of SP4T and SPDT MMIC switches and logic drivers.

Applications

Instrumentation
Satellite Communications
Military & Space

Part Models: 1
1ku List Price: Starting From $2932.00

Documentation

Controlled Drawings 1

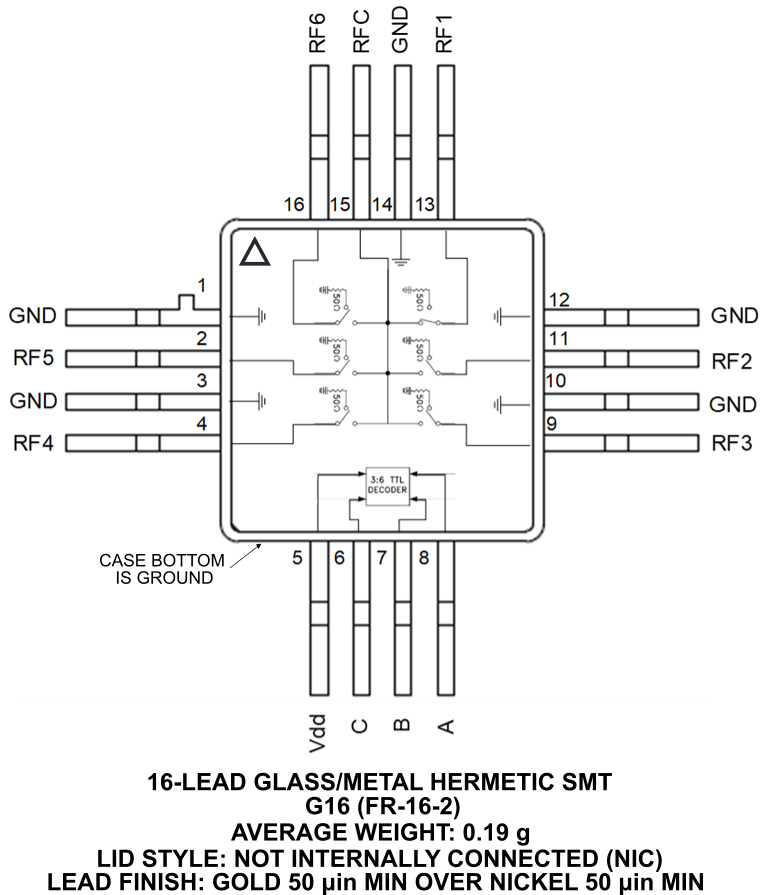

HMC4811G16: DC to 3 GHz, SP6T Non-Reflective Switch SID (Rev.B) 02/13/2025
