Features and Benefits

  • Low Insertion Loss: 0.7 dB (DC – 3 GHz)
  • Non-Reflective Design
  • Integrated 2:4 TTL Decoder
  • High Input Third Order Intercept: +47 dBm (0.5 – 3 GHz)
  • Input Power for 1 dB Compression: + 25 dBm
  • Power Handling: +27 dBm
  • Single Positive Supply: +5 Vdc
  • 16 Lead Hermetic SMT package

Product Details

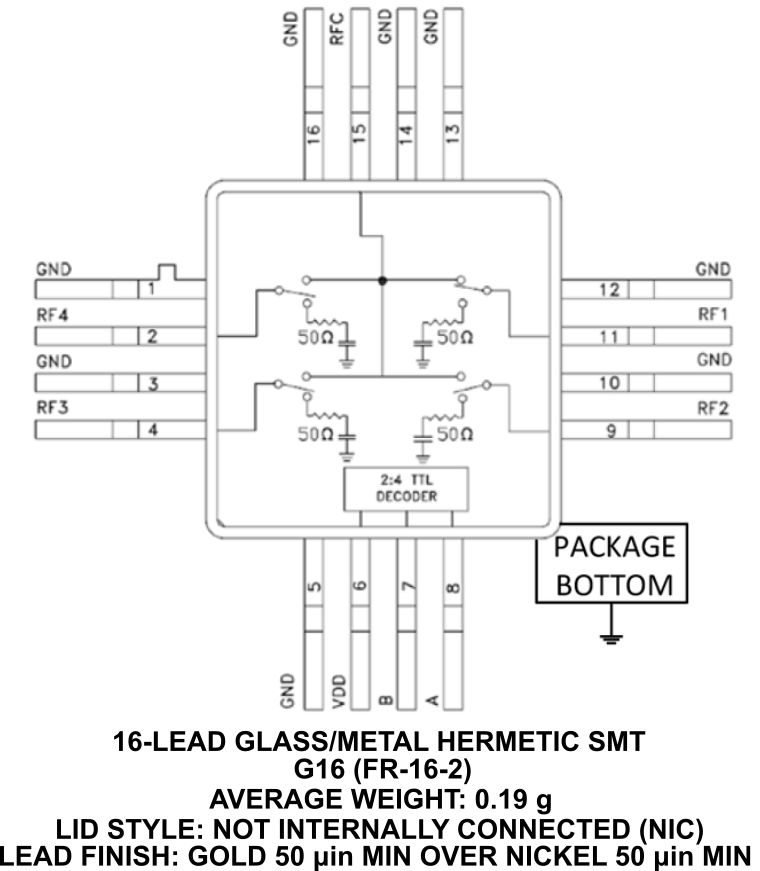

The ADH244S is a non-reflective SP4T switch supplied on a 16 Lead glass/metal hermetic package with Class S screening. Covering DC to 4 GHz, the SP4T offers between 30 to ~50 dB isolation and a low insertion loss of 0.7 dB (Typ.) through 3 GHz.

The ADH244S integrates a 2:4 TTL/CMOS compatible decoder requiring only 2 control lines and a positive supply voltage (Typ. + 5 Vdc ± 10%) to select each path.


  • Space Applications
  • Military Radios, Radar & ECM
  • Telecom Infrastructure
  • Test Instrumentation

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
