ADH1048AS

PRODUCTION

Aerospace, GaAs, MMIC, Double Balanced Downconverter, 2.25 GHz to 18 GHz

Part Models: 1
1ku List Price: Starting From $580.00

Viewing:

Overview

Passive: no dc bias required
High Input IP3: 20 dBm typical
LO to RF isolation: 25 dB typical
LO to IF isolation: 20 dB typical

RF to IF isolation: 15 dB typical
IF frequency range: dc to 4 GHz
Die size: 1.31 mm x 0.76 mm x 0.1 mm
Screened in accordance with MIL-PRF-38534, Class K

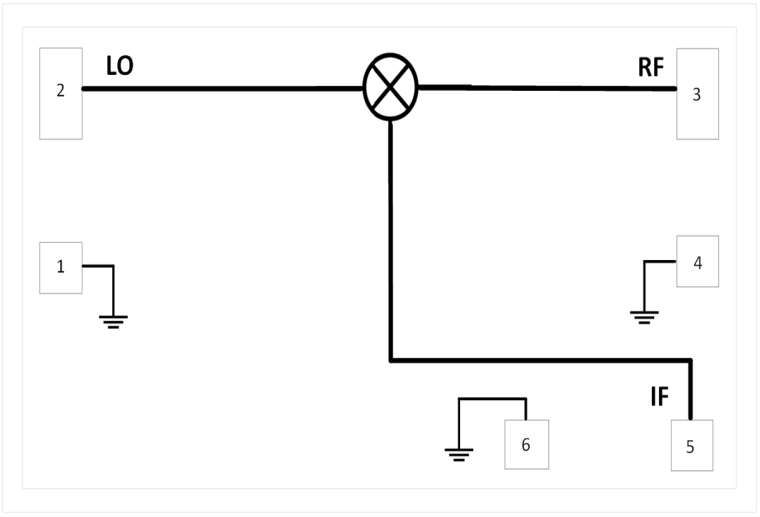

The ADH1048AS is a general purpose, monolithic microwave integrated circuit (MMIC) double balanced mixer that can be used as a downconverter with DC to 4 GHz at the IF port and 2.25 GHz to 18 GHz at the radio frequency (RF) port. This mixer requires no external components or matching circuitry. The ADH1048AS provides excellent local oscillator LO/RF, LO/IF, and RF/IF isolation. The mixer operates with LO drive levels from +9 dBm to +17 dBm.

Applications

Ka-Band Transponders
Point-to-Multi-Point radios
Test Equipment and Sensors
Military & Space

Part Models: 1
1ku List Price: Starting From $580.00

Documentation

Controlled Drawings 1

HMC7888: Aerospace, GaAs, MMIC, Double Balanced Downconverter, 2.25 GHz to 18 GHz (Rev.B) 11/07/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC7888	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
