ADG706

CMOS, 2.5 Ω Low Voltage 16 Channel Multiplexer

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 3
1ku List Price Starting From $3.27
Features
  • +1.8 V to +5.5 V single supply
  • ±2.5 V dual supply
  • 2.5 Ω ON resistance
  • 0.5 Ω ON resistance flatness
  • 100 pA leakage currents
  • 40 ns switching times
  • Single 16-to-1 multiplexer
  • 28-lead TSSOP package
  • Low-power consumption
  • TTL/CMOS-compatible inputs
Additional Details
show more Icon

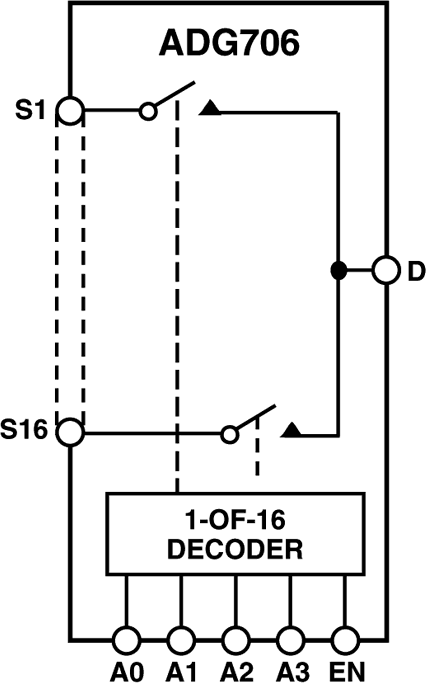

The ADG706 and ADG707 are low-voltage, CMOS analog multiplexers comprising 16 single channels and eight differential channels, respectively. The ADG706 switches one of 16 inputs (S1–S16) to a common output, D, as determined by the 4-bit binary address lines A0, A1, A2, and A3. The ADG707 switches one of eight differential inputs to a common differential output as determined by the 3-bit binary address lines A0, A1, and A2. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched OFF.

Low-power consumption and operating supply range of 1.8 V to 5.5 V make the ADG706 and ADG707 ideal for battery-powered, portable instruments. All channels exhibit break-before-make switching action preventing momentary shorting when switching channels. These devices are also designed to operate from a dual supply of ±2.5 V.

These multiplexers are designed on an enhanced submicron process that provides low-power dissipation yet gives high switching speed, very low ON resistance, and leakage currents. ON resistance is in the region of a few ohms and is closely matched between switches and very flat over the full signal range. These parts can operate equally well as either multiplexers or demultiplexers and have an input signal range that extends to the supplies.

The ADG706 and ADG707 are available in small 28-lead TSSOP packages.

Product Highlights

  1. Single-/dual-supply operation. The ADG706 and ADG707 are fully specified and guaranteed with 3 V and 5 V single-supply and ±2.5 V dual-supply rails.
  2. Low ON resistance (2.5 Ω typical)
  3. Low-power consumption (<0.01 µW)
  4. Guaranteed break-before-make switching action
  5. Small 28-lead TSSOP package

Applications

  • Data acquisition systems
  • Communication systems
  • Relay replacement
  • Audio and video switching
  • Battery-powered systems
Part Models 3
1ku List Price Starting From $3.27

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADG706BRUZ
  • HTML
  • HTML
ADG706BRUZ-REEL
  • HTML
  • HTML
ADG706BRUZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 5, 2021

- 21_0035

Amkor Philippines as an Alternate Site for TSSOP_4.4

ADG706BRUZ

PRODUCTION

ADG706BRUZ-REEL

PRODUCTION

ADG706BRUZ-REEL7

PRODUCTION

Jan 16, 2012

- 11_0244

Halogen Free Material Change for Select TSSOP Products Assembled at Amkor

ADG706BRUZ

PRODUCTION

ADG706BRUZ-REEL

PRODUCTION

ADG706BRUZ-REEL7

PRODUCTION

Feb 8, 2010

- 04_0080

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 5, 2021

- 21_0035

arrow down

Amkor Philippines as an Alternate Site for TSSOP_4.4

ADG706BRUZ

PRODUCTION

ADG706BRUZ-REEL

PRODUCTION

ADG706BRUZ-REEL7

PRODUCTION

Jan 16, 2012

- 11_0244

arrow down

Halogen Free Material Change for Select TSSOP Products Assembled at Amkor

ADG706BRUZ

PRODUCTION

ADG706BRUZ-REEL

PRODUCTION

ADG706BRUZ-REEL7

PRODUCTION

Feb 8, 2010

- 04_0080

arrow down

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-28TSSOPEBZ

EVAL-28TSSOPEBZ Evaluation Board

zoom

EVAL-28TSSOPEBZ

EVAL-28TSSOPEBZ Evaluation Board

EVAL-28TSSOPEBZ Evaluation Board

Features and Benefits

  • 28-lead TSSOP evaluation board
  • Clamp allows the main device to be easily changed
  • Gold pin connectors allow the addition of passive components
  • SMB connectors for the input/output of signals
  • Additional space on-board to allow for prototyping

Product Detail

The EVAL-28TSSOPEBZ evaluation board evaluates 28-lead TSSOP devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL- 28TSSOPEBZ to secure a 28-lead TSSOP device to the evaluation board without the need for soldering, making the board reusable for multiple devices.

A 28-lead TSSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K28 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.

Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.
