Features and Benefits
- 44 V Supply Maximum Ratings
- VSS to VDD Analog Signal Range
- Single/Dual Supply Specifications
- Wide Supply Range (10.8 V to 16.5 V)
- Extended Plastic Temperature Range: -40°C to +85°C
- Low Power Dissipation (28 µW max)
- See datasheet for additional features

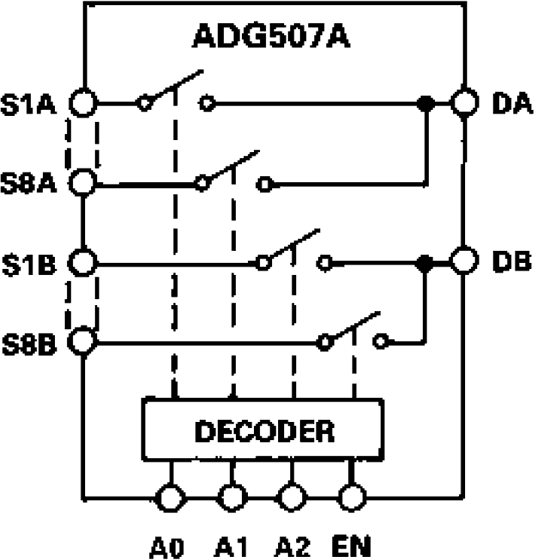

The ADG507A is a CMOS monolithic analog multiplexer with dual 8 channels. The ADG507A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. It has TTL and 5 V CMOS logic compatible digital inputs.
The ADG507A is designed on an enhanced LC2MOS process, which gives an increased signal capability of VSS to VDD and enables operation over a wide range of supply voltages. The devices can operate comfortably anywhere in the 10.8 V to 16.5 V single or dual supply range. This multiplexer also features high switching speeds and low RON.
- Single/Dual Supply Specifications with a Wide Tolerance
The devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.
- Extended Signal Range
The enhanced LC2MOS processing results in a high breakdown and an increased analog signal range of VSS to VDD.
- Break-Before-Make Switching
Switches are guaranteed break-before-make so input signals are protected against momentary shorting.
- Low Leakage
Leakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.
Product Lifecycle Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
Evaluation Kits (1)

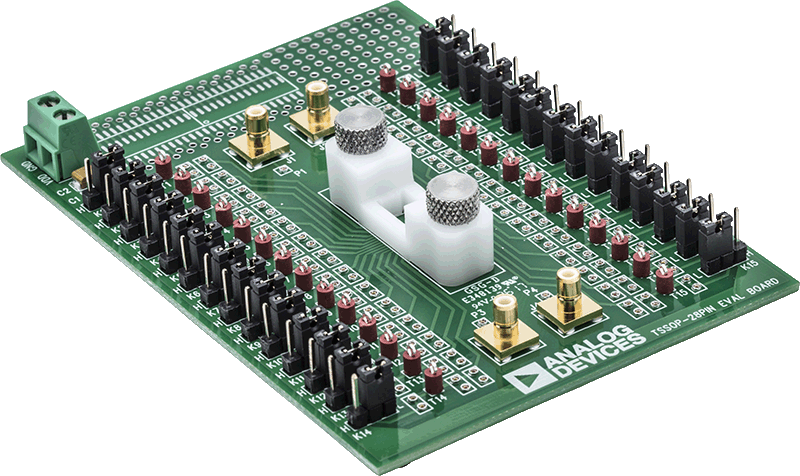

The EVAL-28TSSOPEBZ evaluation board evaluates 28-lead
TSSOP devices in the Switches and Multiplexers Portfolio that
are purchased separately. A clamp is supplied with the EVAL-
28TSSOPEBZ to secure a 28-lead TSSOP device to the evaluation
board without the need for soldering, making the board reusable
for multiple devices.
A 28-lead TSSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K28 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.
Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.
Documentation & Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|ADG507ABCHIPS||Material Declaration||Reliability Data||none available|
|ADG507AKNZ||Material Declaration||Reliability Data||28-Lead PDIP|
|ADG507AKPZ||Material Declaration||Reliability Data||28-Lead PLCC|
|ADG507AKRUZ||Material Declaration||Reliability Data||28-Lead TSSOP (4.4mm x 9.7mm)|
|ADG507AKRUZ-REEL||Material Declaration||Reliability Data||28-Lead TSSOP (4.4mm x 9.7mm)|
|ADG507AKRUZ-REEL7||Material Declaration||Reliability Data||28-Lead TSSOP (4.4mm x 9.7mm)|
|ADG507AKRZ||Material Declaration||Reliability Data||28-Lead SOIC (Wide)|
|ADG507AKRZ-REEL||Material Declaration||Reliability Data||28-Lead SOIC (Wide)|
|ADG507AKRZ-REEL7||Material Declaration||Reliability Data||28-Lead SOIC (Wide)|
|ADG507ATCHIPS||Material Declaration||Reliability Data||none available|
|Wafer Fabrication Data|
