Features and Benefits

  • 3.8 Ω on resistance
  • Specified at
    • VDD = +5 V ± 10%
    • VSS = –4.5 V to –8.8 V
  • No VL supply required
  • 3 V logic-compatible inputs
  • Up to 310 mA continuous current
  • Rail-to-rail operation
  • 8-lead, 2 mm × 3 mm LFCSP

Product Details

The ADG1519 is a single-pole, double throw (SPDT) switch. An EN input on the lead frame chip scale package (LFCSP) is used to enable or disable the device. When disabled, the switch terminals (SA, SB, and D) are high impedance.

The ADG1519 is fully specified at VDD = +5 V ± 10% and VSS = –4.5 V to –8.8 V for applications that require asymmetrical supplies. The ADG1519 on-resistance profile is flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals. The construction ensures ultra low power dissipation, making the device ideally suited for portable and battery-powered instruments.

The switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. The ADG1519 exhibits break-before-make switching action for use in multiplexer applications.


  • LDMOS power amplifier gate drive
  • GAN power amplifier gate drive
  • Communication systems
  • Automatic test equipment
  • Data acquisition systems
  • Sample-and-hold systems


  1. 5.2 Ω maximum on resistance at 25°C.
  2. –135 dB THD.
  3. 3 V logic-compatible digital inputs: VINH = 2.0 V minimum and VINL = 0.8 V maximum.
  4. No logic power supply voltage (VL) required.
  5. 8-lead, 2 mm × 3 mm LFCSP (see the Outline Dimensions section in the data sheet).

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

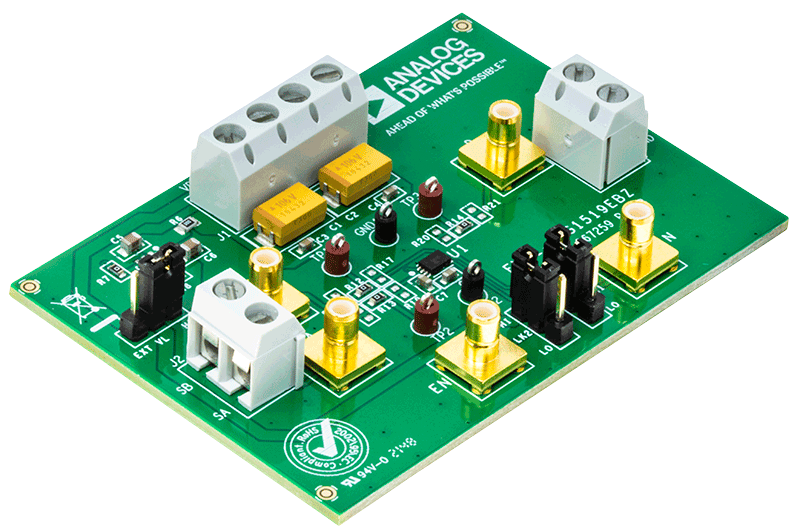

Evaluation Kits (1)

Tools & Simulations


LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.


Models for the following parts are available in LTspice:


IBIS Models

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
ADG1519BCPZ-RL7 Material Declaration Reliability Data 8-lead LFCSP 2 mm × 3 mm × 0.75
