ADD8701

Low Cost, 16 V 12-Channel Buffer plus Integrated High Drive Amplifier

Show More showmore-icon

alert : Obsolete tooltip
alert : Obsolete tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
Features
  • 16V Single Supply Operation
  • Two Channels Swing to Vdd, Two Channels Swing to Gnd
  • Unity Gain Stable with Large Capacitive Loads
  • Wide Bandwidth: 6MHz
  • Fast Slew Rate: 6V/us
  • Amplifier Output Current: 35mA Continuous, 250mA peak
  • Tiny/Thin Lead Frame Chip Scale Package
Additional Details
show more Icon

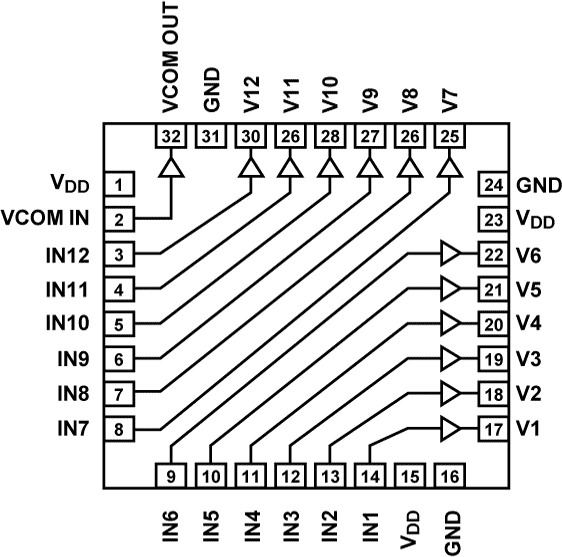

The ADD8701 is a low cost, 16V 12-channel buffer plus integrated high drive amplifier. Two channels swing to the positive rail, while two channels swing to the negative rail. The buffer channels can drive up to 35mA of peak current and 10mA of continuous output current into capacitive loads. The amplifier channel can drive 35mA of continuous current and up to 250mA of peak current.

The ADD8701 is offered in a 32-lead Lead Frame Chip Scale Package
