Overview
Features and Benefits
- 250 ps Propagation Delay Input to Output
- 50 ps Propagation Delay Dispersion
- Differential ECL Compatible Outputs
- Differential Latch Control
- Robust Input Protection
- Input Common-mode Range -2.0 V to +3.0 V
- Input Differential Range ±5 V
- ESD Protection >3 kV HBM, >200 V MM
- Power Supply Sensitivity > 65 dB
- 200 ps Minimum Pulsewidth
- 5 GHz Equivalent Input Rise
Time Bandwidth - Typical Output Rise/Fall of 165 ps
Product Details

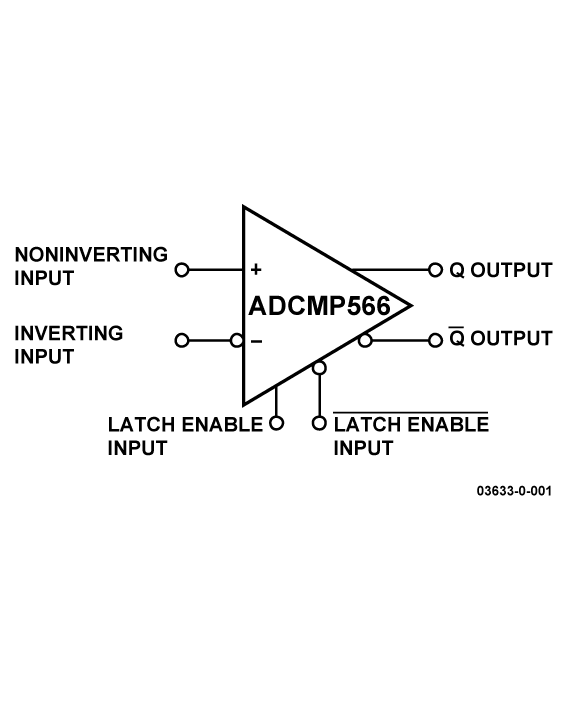

The ADCMP566 is an ultrafast voltage comparator fabricated on Analog Devices’ proprietary XFCB process. The device features 250 ps propagation delay with less than 35 ps overdrive dispersion. Overdrive dispersion, a particularly important characteristic of high speed comparators, is a measure of the difference in propagation delay under differing overdrive conditions.
A fast, high precision differential input stage permits consistent propagation delay with a wide variety of signals in the common-mode range from -2.0 V to +3.0 V. Outputs are complementary digital signals fully compatible with ECL 10 K and 10 KH logic families. The outputs provide sufficient drive current to directly drive transmission lines terminated in 50 Ω to -2 V. A latch input is included, which permits tracking, track-and-hold, or sample-and-hold modes of operation.
The ADCMP566 is available in a 32-lead LFCSP package.
APPLICATIONS
- High speed instrumentation
- Scope and logic analyzer front ends
- Window comparators
- High speed line receivers and signal restoration
- Threshold detection
- Peak detection
- High speed triggers
- Patient diagnostics
- Disk drive read channel detection
- Hand-held test instruments
Product Categories
Product Lifecycle
Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
