Overview
Features and Benefits
- High accuracy reference output voltage: 1 V ± 0.9%
- Single-supply voltage operation: 2.3 V to 5.5 V
- Rail-to-rail common-mode input voltage range
- Low input offset voltage across VCMR: 1 mV typical
- Guarantees comparator output logic low from VCC = 0.9 V to undervoltage lockout (UVLO)
- Operating temperature range: −40°C to +125°C

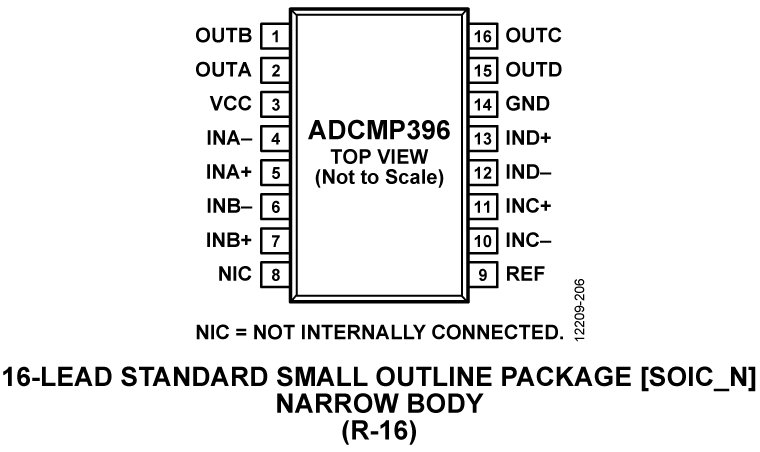

- Package type: 16-lead, narrow body SOIC
Product Details
The ADCMP396 is a quad, rail-to-rail input, low power comparator ideal for use in general-purpose applications. The device operates from a supply voltage of 2.3 V to 5.5 V and draws a minimal amount of current. The quad ADCMP396 consumes only 41.6 µA of supply current. The low voltage and low current operation of the ADCMP396 makes it ideal for battery-powered systems.
The ADCMP396 features a common-mode input voltage range of 200 mV beyond rails, an offset voltage of 1 mV typical across the full common-mode range, and a UVLO monitor. In addition, the design of the comparator allows a defined output state upon power-up. The comparator generates a logic low output while the supply voltage is less than the UVLO threshold.
The ADCMP396 incorporates a 1 V ± 0.9% buffered reference voltage. The reference voltage output can directly connect to the comparator input to serve as the trip value for precise monitoring and detection of positive voltage. It can also act as an offset when monitoring the negative voltage.
The ADCMP396 is available in a 16-lead narrow-body SOIC package, and it is specified to operate over the −40°C to +125°C extended temperature range.
APPLICATIONS
- Battery management/monitoring
- Power supply detection
- Window comparator
- Threshold detectors/discriminators
- Microprocessor systems
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

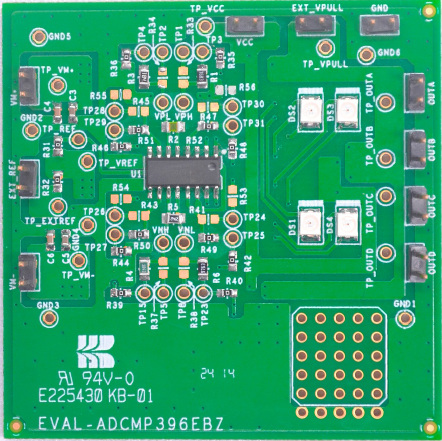

Evaluation Kits (1)
