ADCMP352

Comparator & 0.6 V Reference in 4-SC70 w/ Push-Pull Active-Low Output

Show More showmore-icon

alert : Obsolete tooltip
alert : Obsolete tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
Features

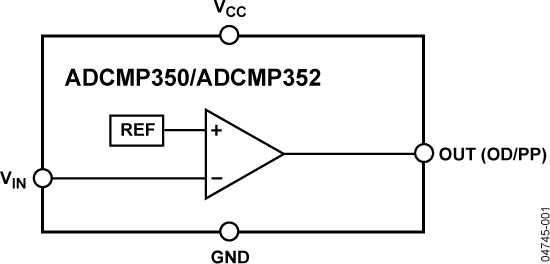

  • Comparators with 0.6 V on-chip references
  • Output stages:
    Open-drain active-low (ADCMP350)
    Push-pull active-low (ADCMP352)
    Open-drain active-high (ADCMP354)
    Push-pull active-high (ADCMP356)
  • High voltage (up to 22 V) tolerance on VIN and open-drain output pins
  • Low power consumption (10 μA)
  • 10 nA input bias current
  • 15 mV hysteresis
  • 5 μs propagation delay
  • Specified over −40°C to +125°C temperature range

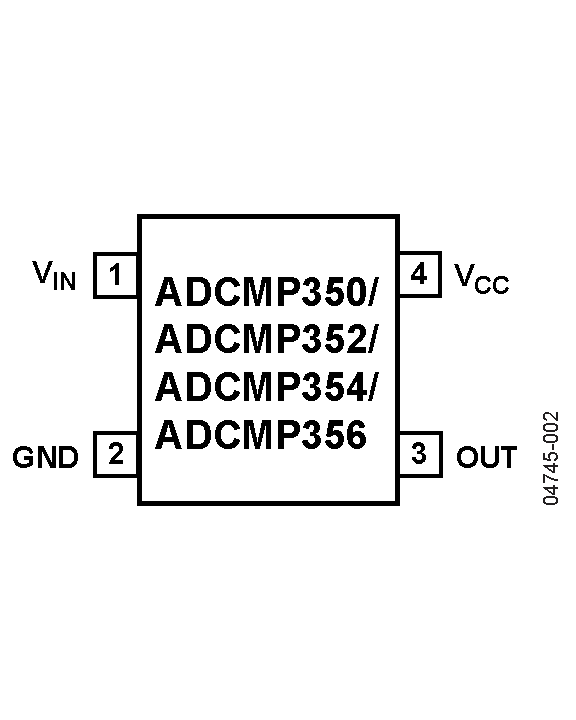

  • 4-lead SC70 package
Additional Details
show more Icon
The ADCMP350/ADCMP352/ADCMP354/ADCMP356 parts are comparator and reference circuits suitable for use in general-purpose applications. The high voltage input and output structures will allow voltages of up to 22 V on the input of all devices and the output of the open-drain devices. High performance over the −40°C to +125°C temperature range makes them suitable for use in automotive and other thermally harsh applications, while low power consumption and space-efficient SC70 packaging make them ideal for battery-powered portable equipment.

Applications

  • Voltage detectors
  • Microprocessor systems
  • Computers
  • Battery monitors
  • Intelligent instruments
  • Portable equipment
