ADBMS6815
PRODUCTION12 Channel Multicell Battery Monitor
- Part Models
- 8
- 1ku List Price
- Starting From $10.57
Overview
- Measures up to 12 battery cells in series
- Maximum lifetime total measurement error: 1.5 mV
- Stackable architecture for high voltage battery packs
- Built-in isoSPI interface
- 2 Mb isolated serial communications
- Uses a single twisted pair, up to 20 meters
- Low EMI susceptibility and emissions
- Bidirectional for broken wire protection
- Capacitor or transformer coupled
- Hot plug tolerant without external protection
- ADBMS6815WFS models designed for use in ISO 26262 applications for Automotive Safety Integrity Level Capability D (ASIL D)
- Diagnostics for IC and application circuit failure modes
- 304 μs to measure all cells in a system
- 16-bit ADC with programmable noise filter
- Passive cell balancing up to 300 mA per channel with programmable PWM
- 7 GPIO or analog inputs
- Temperature or other sensor inputs
- Configurable as an I2C or SPI controller
- Sleep state supply current: 5.5 μA
- 48-lead LQFP package with exposed pad
- AEC-Q100 qualified for automotive applications
The ADBMS6815 is a multicell battery stack monitor that measures up to 12 series connected battery cells with a lifetime total measurement error (TME) of less than 1.5 mV. The measurement range of 0 V to 5 V makes the ADBMS6815 suitable for most battery chemistries. All 12 cells can be measured in 304 µs, and lower data acquisition rates can be selected for high noise reduction.
Multiple ADBMS6815 devices can be connected in series, permitting simultaneous cell monitoring of long, high voltage battery strings. Each ADBMS6815 has an isoSPI™ interface for high speed, RF immune, long distance communications. Multiple devices are connected in a daisy chain with one host processor connection, which can be operated bidirectionally, ensuring communication integrity even in the event of a fault along the communication path.
The ADBMS6815 can be powered directly from the battery stack or an isolated supply. The ADBMS6815 includes passive balancing, with individual pulse-width modulation (PWM) duty cycle control for each cell. Other features include an on-board 5 V regulator, seven general-purpose input/output (GPIO) lines, and a sleep state, where current consumption is reduced to 5.5 µA.
The ADBMS6815WFS models are designed for use in ISO 26262 applications for Automotive Safety Integrity Level Capability D (ASIL D).
Applications
- Electric and hybrid electric vehicles
- Backup battery systems
- Grid energy storage
- Large portable power banks
Documentation
Data Sheet 2
Technical Articles 3
Request an NDA
Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA).
Request an NDAVideo 1
Thought Leadership 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADBMS6815WCSWZ | 48-Lead LQFP_EP (7mm x 7mm x 1.60mm w/ EP) | ||
| ADBMS6815WCSWZ-RL | 48-Lead LQFP_EP (7mm x 7mm x 1.60mm w/ EP) | ||
| ADBMS6815WCSWZA | 48-Lead LQFP_EP (7mm x 7mm x 1.60mm w/ EP) | ||
| ADBMS6815WCSWZA-RL | 48-Lead LQFP_EP (7mm x 7mm x 1.60mm w/ EP) | ||
| ADBMS6815WFSCSWZ | 48-Lead LQFP_EP (7mm x 7mm x 1.60mm w/ EP) | ||
| ADBMS6815WFSCSWZ-RL | 48-Lead LQFP_EP (7mm x 7mm x 1.60mm w/ EP) | ||
| ADBMS6815WFSCSWZA | 48-Lead LQFP_EP (7mm x 7mm x 1.60mm w/ EP) | ||
| ADBMS6815WFSCSWZA-RL | 48-Lead LQFP_EP (7mm x 7mm x 1.60mm w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jul 27, 2023 - 23_0138 ADBMS6815/ADBMS6817 Die Revision and Copper Wire Change |
||
| ADBMS6815WCSWZ | ||
| ADBMS6815WCSWZ-RL | PRODUCTION | |
| ADBMS6815WFSCSWZ | ||
| ADBMS6815WFSCSWZ-RL | ||
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits

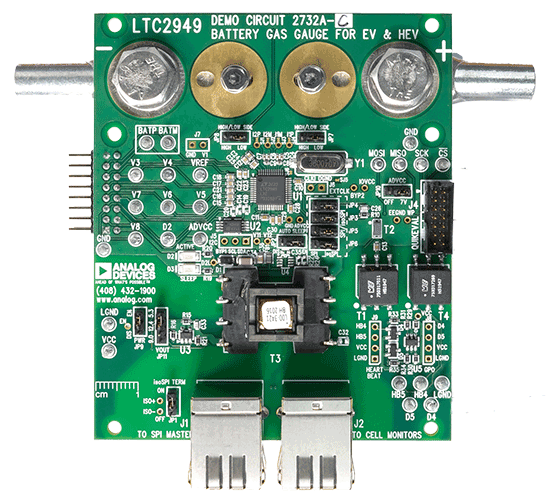

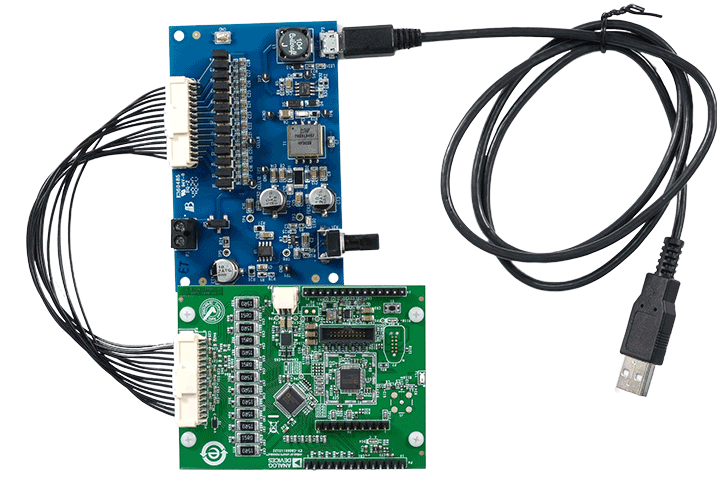

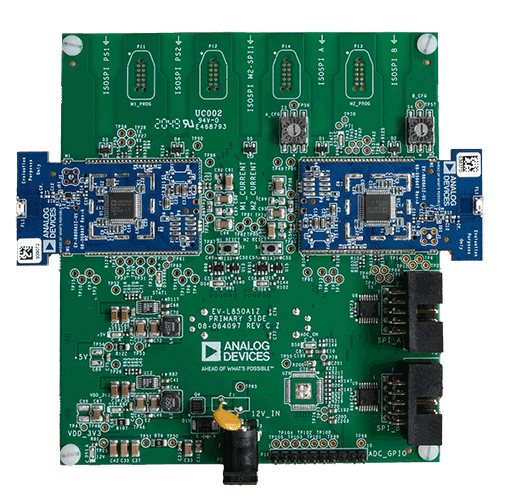

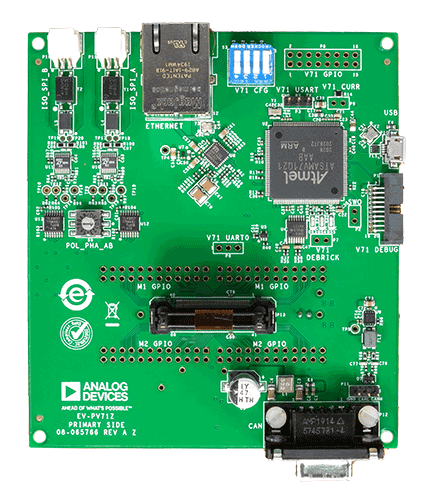

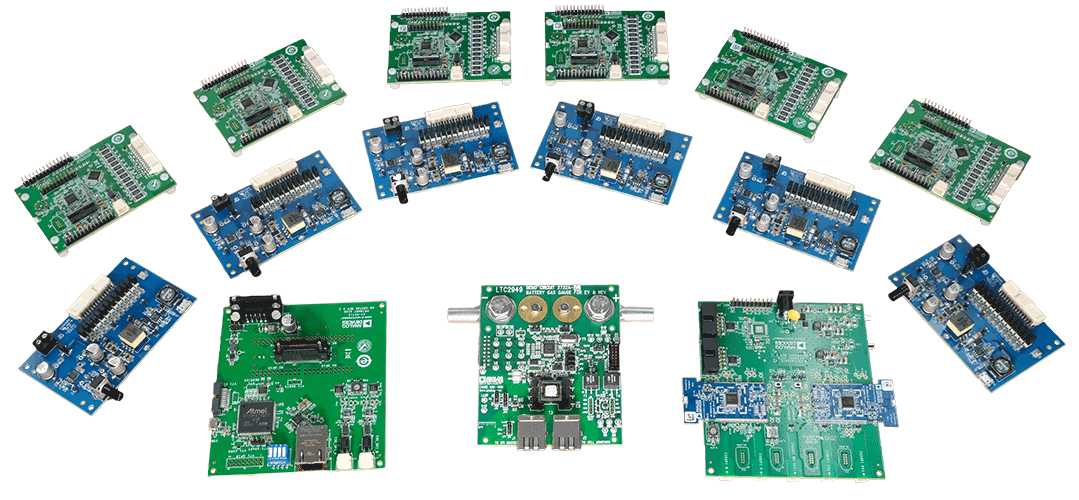

Wireless Battery Management System (wBMS) Evaluation Kit
