ADAU7002: Stereo PDM-to-I2S or TDM Conversion IC Data Sheet (Rev. C)1/30/2013PDF356 K
Overview
Features and Benefits
- 64× decimation of a stereo pulse density modulation (PDM) bit stream to pulse code modulation (PCM) audio data
- Slave I2S or time division multiplexed (TDM) output interface
- Configurable TDM slots
- I/O supply operation: 1.62 V to 3.6 V
- 64× output sample rate PDM clock
- 64×/128×/192×/256×/384×/512× output sample rate BCLK
- Automatic BCLK ratio detection
- Output sample rate: 4 kHz to 96 kHz
- Automatic PDM CLK drive at 64× the sample rate
- Automatic power down with BCLK removal
- 0.67 mA operating current at 48 kHz and 1.8 V IOVDD supply
- Shutdown current: <1 μA

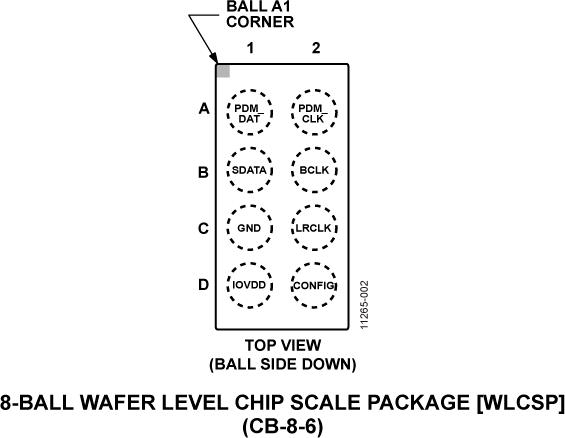

- 8-ball, 1.56 mm × 0.76 mm, 0.4 mm pitch WLCSP
- Power-on reset
Product Details

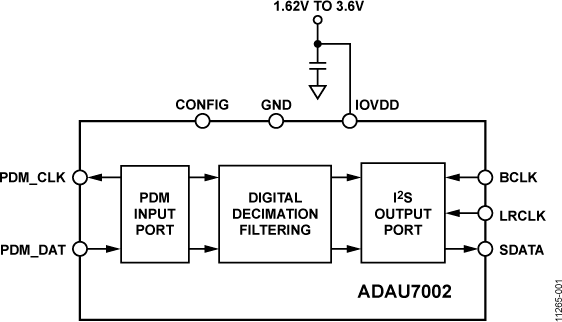

The ADAU7002 converts a stereo PDM bit stream into a PCM output. The source for the PDM data can be two microphones or other PDM sources. The PCM audio data is output on a serial audio interface port in either I2S or TDM format.
The ADAU7002 is specified over the commercial temperature range (−40°C to +85°C). It is available in a halide-free, 8-ball, 1.56 mm × 0.76 mm, wafer level chip scale package (WLCSP).
Applications
- Mobile computing
- Portable electronics
- Consumer electronics
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

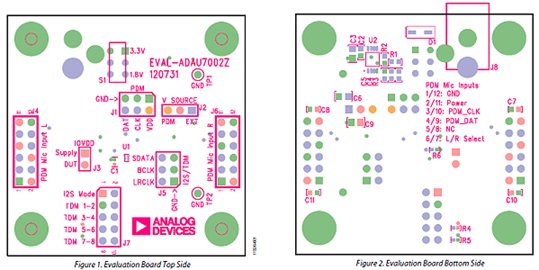

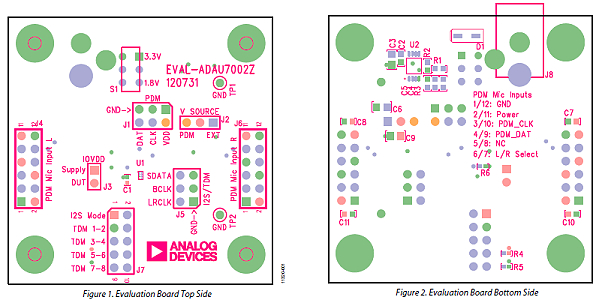

Evaluation Kits (1)
Documentation & Resources
-
UG-533: Evaluating the ADAU7002 Using the EVAL-ADAU7002Z (Rev. B)2/28/2013PDF531 K
Tools & Simulations
IBIS Models
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADAU7002ACBZ-R7 | Material Declaration | Reliability Data | 8-Ball WLCSP (0.8mm x 1.56mm) | |
| ADAU7002ACBZ-RL | Material Declaration | Reliability Data | 8-Ball WLCSP (0.8mm x 1.56mm) | |
