ADAU1381

Low-noise Stereo Codec with Enhanced Recording and Playback Processing

Show More showmore-icon

alert : Obsolete tooltip
alert : Obsolete tooltip
Part Details
Part Models 5
1ku List Price
price unavailable
Features
  • Built-in sound engine for audio processing
    Wind noise reduction filter
    Enhanced Stereo Capture (ESC)
    Dual-band automatic level control (ALC)
    6-band equalizer, including notch filter
  • 24-bit stereo audio ADC and DAC
  • 400 mW speaker amplifier (into 8 Ω load)
  • Stereo digital microphone input pulse-density modulation (PDM)
  • PLL supporting a range of input clock rates
  • Stereo line output
  • Stereo pseudo-differential microphone input
Additional Details
show more Icon

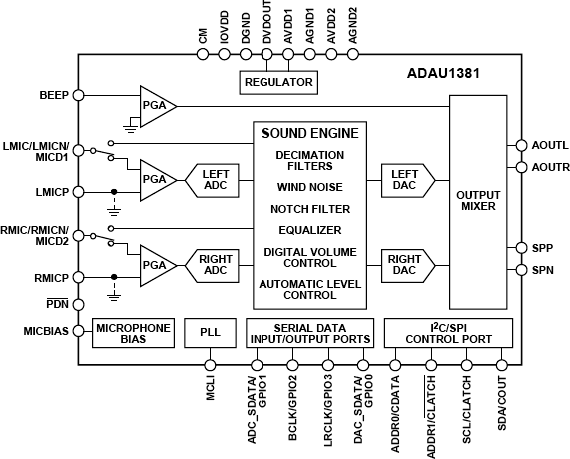

The ADAU1381 is a low-power, 24-bit stereo audio codec. The stereo audio DAC supports sample rates from 8 kHz to 96 kHz, a digital volume control, and a programmable digital filter. The stereo audio ADC supports sample rates 8 kHz to 96 kHz and a programmable digital volume control. The ADAU1381 is ideal for battery-powered audio applications.

The record path includes two digital stereo microphone inputs and an analog stereo input path. The analog inputs can be configured for either a pseudo-differential or a single-ended stereo source. Additionally, there is a dedicated analog beep input signal path that can be mixed into any output. The ADAU1381 includes a stereo line output and speaker driver, which makes the device capable of supporting dynamic speakers.


The serial control bus supports the I2C or SPI protocols, and the serial audio bus is programmable for I2S, left-justified, right-justified, or TDM mode. A programmable PLL supports flexible clock generation for all standard rates and available master clocks from 8 MHz to 27 MHz.


Applications

  • Digital still cameras
  • Digital video cameras
Part Models 5
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADAU1381BCBZ-RL
  • HTML
  • HTML
ADAU1381BCBZ-RL7
  • HTML
  • HTML
ADAU1381BCPZ
  • HTML
  • HTML
ADAU1381BCPZ-RL
  • HTML
  • HTML
ADAU1381BCPZ-RL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 13, 2017

- 16_0077

CANCELLED: Conversion of Select 4x4, 5x5, 6x6 and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE Korea.

Jun 14, 2011

- 11_0109

Addition of STATSChipPAC, Malaysia as an Alternate Test Site for Select LFCSP products

ADAU1381BCPZ

Obsolete

ADAU1381BCPZ-RL

Obsolete

ADAU1381BCPZ-RL7

Obsolete

Nov 18, 2016

- 16_0050

ADI Corporate Obsolescence Notice-2016 (Standard Products)

ADAU1381BCBZ-RL

Obsolete

ADAU1381BCBZ-RL7

Obsolete

ADAU1381BCPZ

Obsolete

ADAU1381BCPZ-RL

Obsolete

ADAU1381BCPZ-RL7

Obsolete

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 13, 2017

- 16_0077

arrow down

CANCELLED: Conversion of Select 4x4, 5x5, 6x6 and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE Korea.

Jun 14, 2011

- 11_0109

arrow down

Addition of STATSChipPAC, Malaysia as an Alternate Test Site for Select LFCSP products

ADAU1381BCPZ

Obsolete

ADAU1381BCPZ-RL

Obsolete

ADAU1381BCPZ-RL7

Obsolete

Nov 18, 2016

- 16_0050

arrow down

ADI Corporate Obsolescence Notice-2016 (Standard Products)

ADAU1381BCBZ-RL

Obsolete

ADAU1381BCBZ-RL7

Obsolete

ADAU1381BCPZ

Obsolete

ADAU1381BCPZ-RL

Obsolete

ADAU1381BCPZ-RL7

Obsolete

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

EVAL-ADAU1381

ADAU1381 Evaluation Board

zoom

EVAL-ADAU1381

ADAU1381 Evaluation Board

ADAU1381 Evaluation Board

Product Detail

This evaluation board provides full access to all analog and digital I/Os on the ADAU1781. The SigmaDSP is controlled by Analog Devices, Inc., SigmaStudio™ software, which interfaces to the board via a USB connection. This evaluation board can be powered either over the USB bus or by a single 3.8 V to 6 V supply, which is regulated to the voltages required on the board. The PC board is a 4-layer design, with a single ground plane and a single power plane on the inner layers. The board contains onboard microphones and speaker, and connectors for external microphones and speaker. The master clock can be provided externally or by the on-board 12.288 MHz active oscillator.

EVAL-ADUSB2EBZ

ADUSB2EBZ Evaluation Board

zoom

EVAL-ADUSB2EBZ

ADUSB2EBZ Evaluation Board

ADUSB2EBZ Evaluation Board

Features and Benefits

EVAL-ADUSB2EBZ "USBi"
  • Digital I/O: USB input, I2C/SPI output
  • DC Supply: 5 V (USB)

Product Detail

The Analog Devices USBi “USB Interface” (EVAL-ADUSB2EBZ) board is the interface between your PC's USB port and SigmaDSP hardware's data input pins. This interface can be used with any evaluation board which includes an External SPI/I²C header (Aardvark Header). The EVAL-ADUSB2EBZ board is capable of both SPI and I²C communication (which is user selectable) and can supply IOVDD of either 3.3V or 1.8V.The USBi interface is powered from the computer's USB port.

To Install the USBi Board:

  • Connect the USB cable to the USBi Board a spare USB port on your PC.
  • The Windows “Found New Hardware Wizard” will launch.
  • Choose “Install from a list or a specific location” and click “Next”.
  • Select “Search for the best driver in these locations” and Check the box for “Include this location in the search.”
  • Press the “Browse” button and locate the appropriate driver file in the SigmaStudio application folder (default folder is C:\Program Files\Analog Devices Inc\Sigma Studio\USB drivers): Select the CyUSB.inf file.
  • Click “Continue Anyway” if you're prompted with “This software has not passed Windows Logo testing.”

Using USBi in SigmaStudio:

To communication between SigmaStudio and the USBi board, a communication channel block must be added to the Schematic design. To locate the block, select the Hardware Configuration Tab, in the ToolBox or Tree ToolBox window choose the “Communication Channels” category, and select the USBi block.


USBi

This block provides connections for multiple processors (ICs / DSPs), allowing you to use multiple processors in a single design. This block allows you to explicitly specify both the communication protocol (SPI or I²C) and the part's address, I²C address or SPI catch line. The DSP hardware's address must match the block's selected address for communication to function properly. See the parts data sheet for more information about addressing (e.g. ADR_SEL, ADDR0, or ADDR1 pins). The default USBi protocol is I²C, to enable SPI, you must first select an SPI address in the block's drop down menu and then perform three write operations (e.g. press the write button the Register Read/Write Window 3 times). The USBi hardware has LEDs which indicate the current mode, I²C or SPI.
