Features and Benefits
- 27.5 GHz to 31 GHz frequency range
- Low power dissipation (<12 mW per channel)
- 4 beam/16 channel beamforming IC
- Configurable for transmit or receive operation
- Programmable time delay and step attenuator for beam steering
- Internal memory for storing beam positions
- User programmable sequencer for quick and efficient beam state selection
- Update, reset, & mute beam commands issued via pins or SPI
- Supports beam hopping and raster scanning
- Integrated ADC for:
- Temperature sensor
- General analog inputs
- Programmable bias modes
- 16 chip parallel addressability over 4-wire SPI interface

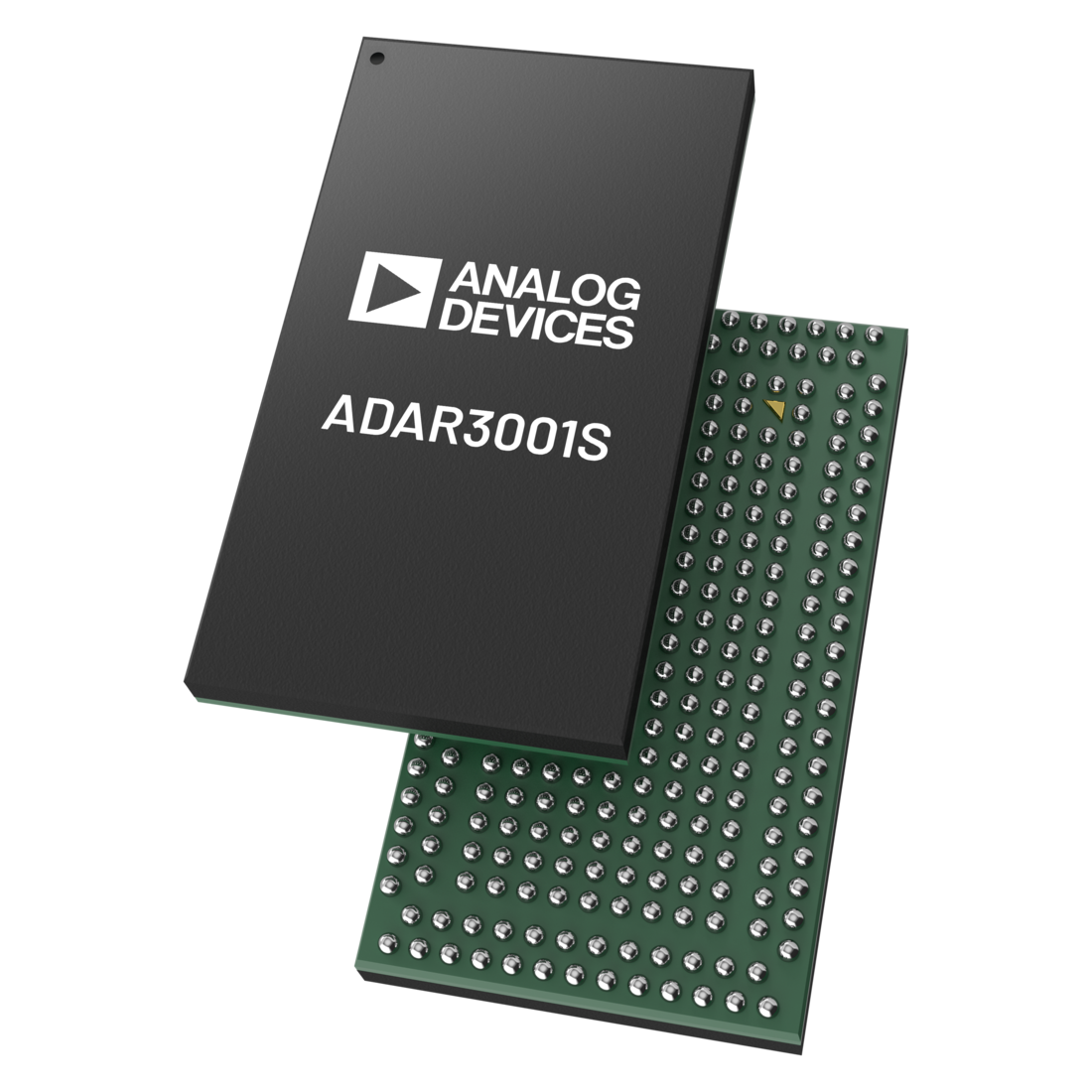

- Easy to use BGA package
For more information please contact ADI at email@example.com.
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
