Features and Benefits
- Dual-channel simultaneously sampling ADC
- Integrated differential amplifier/ADC driver
- Single-ended to differential conversion
- Package footprint, 7 mm × 6 mm, 72-ball CSP_BGA
- 6× footprint reduction vs. discrete solution
- On-chip reference circuitry with VOCM generation
- CMOS, DDR CMOS, or DDR LVDS outputs
- Optional data output randomizer
- Optional clock duty-cycle stabilizer
- Shutdown and nap modes
- Serial SPI port for configuration

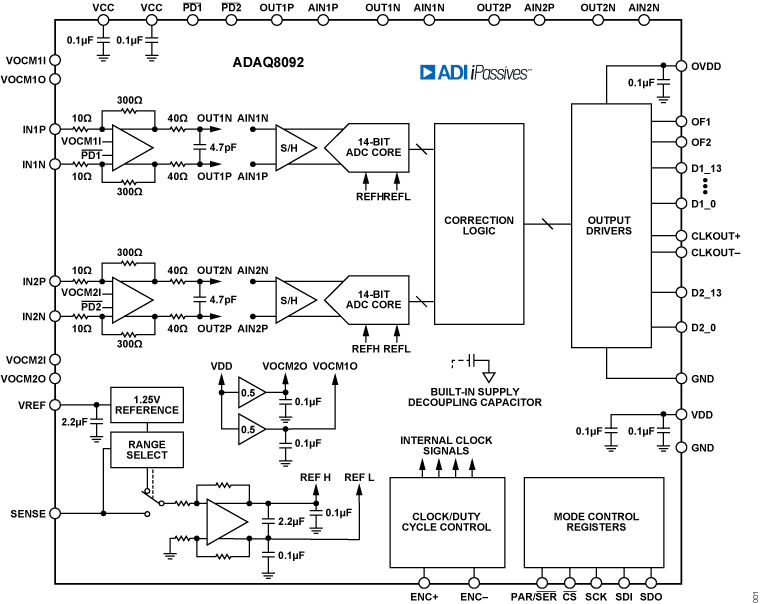

The ADAQ8092 is a 14-bit, 105 MSPS, high-speed dual-channel data acquisition (DAQ) μModule® solution. The device incorporates signal conditioning, an analog-to-digital (ADC) driver, a voltage reference, and an ADC in a single package via system in package (SiP) technology. μModule solutions simplify the development of high-speed data acquisition systems by transferring the design burden, component selection, optimization, and layout from the designer to the device. The ADAQ8092 enables a 6× footprint reduction.
Built-in power supply decoupling capacitors enhance power supply rejection performance, making it a robust DAQ solution. The operating temperature range of the ADAQ8092 is −40°C to +105°C.
- Cellular base stations
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

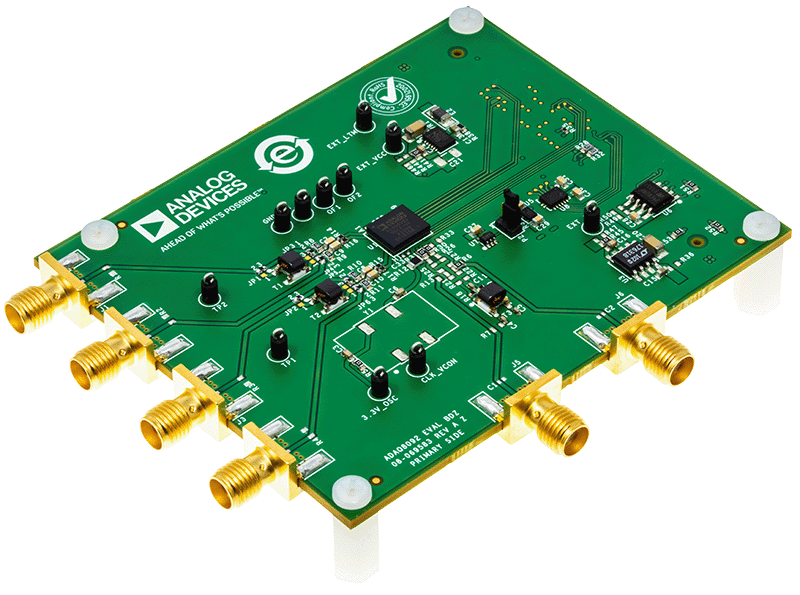

The EVAL-ADAQ8092-FMCZ evaluates the ADAQ8092, a 14-bit, 105MSPS, high-speed dual-channel data acquisition µModule solution. This device uses the System-in-Package (SiP) that integrates three common signal processing and conditioning blocks.
This EVAL-ADAQ8092-FMCZ board does not need an external power supply to operate and requires a very small jitter in the clock source. We recommend to use the DC1075B to improve the clock signal source. For full details on the ADAQ8092, see the ADAQ8092 data sheet, which must be consulted in conjunction with the user guide when using the EVAL-ADAQ8092-FMCZ.
Documentation & Resources
ADAQ8092 Evaluation Board User Guide7/29/2022
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|ADAQ8092BBCZ||Material Declaration||Reliability Data||72-ball CSP-BGA (7 mm x 6 mm x 1.69 mm)|
|Wafer Fabrication Data|
